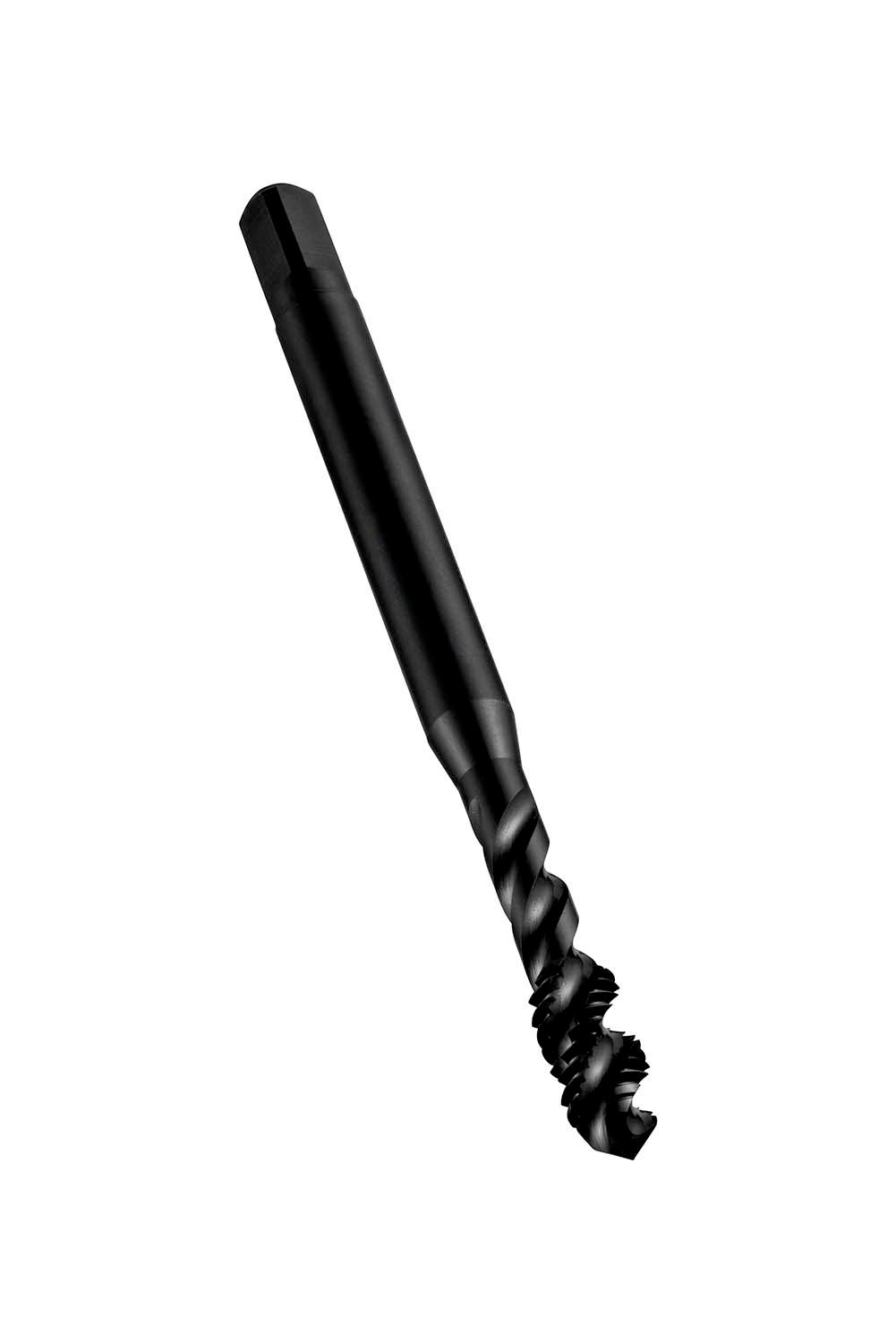

DORMER E0433/4

Description

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 3/4″ with 14 TPI and Normal class of fit, dimensions according to DORMER-ISO standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Additional information

Weight	0.4213 kg
Dimensions
barcode

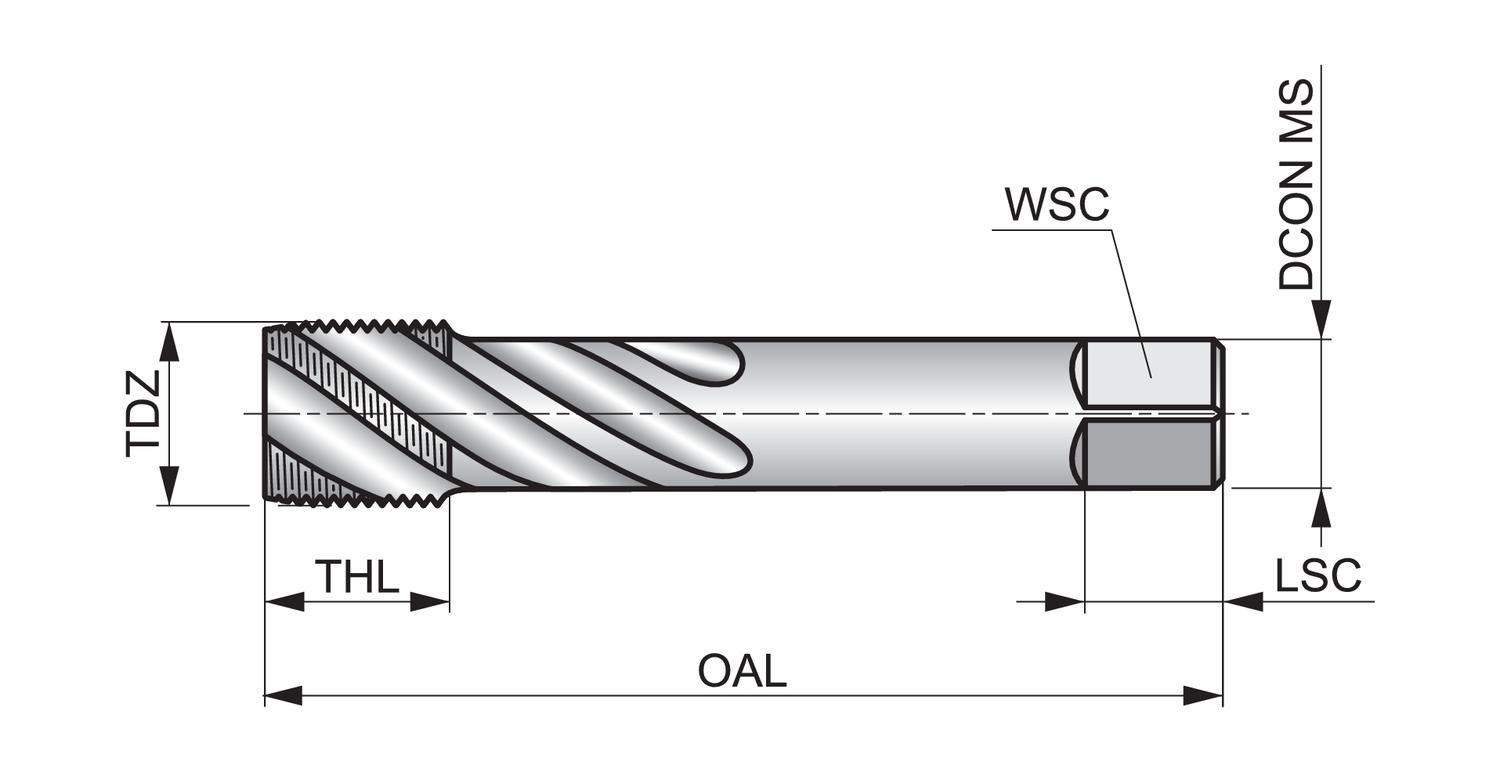

Additional Information	Description: Value Product name: E0433/4 Product number (SAP): 86015154 EAN number: 7320760569955 Thread diameter size (TDZ): 3/4 Thread diameter – millimeter (TD): 26.441 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 140 mm Overall length – inch (OAL): 5.5118 inch Threading length – millimeter (THL): 28 mm Threading length – inch (THL): 1.1024 inch Connection diameter – inch (DCON MS): 0.7874 inch Connection diameter – millimeter (DCON MS): 20 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.6299 inch Clamping width – millimeter (WSC): 16 mm Clamping Length – inch (LCS): 0.7874 inch Clamping Length – millimeter (LSC): 20 mm Premachined hole diameter – inch (PHD): 0.9646 inch Premachined hole diameter – millimeter (PHD): 24.5 mm Gross weight – grams: 338.8 ISO: E0433/4 Ordering code ANSI: E0433/4

Need Technical Advice?

Description

Additional information

Brand

DORMER
