DORMER E100M3.5NO8 HSS / HSCo DIN Taps

Product Code: E100M3.5NO8

$83.28$75.71 Ex. GST

Product Code: E100M3.5NO8 SKU E100M3.5NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

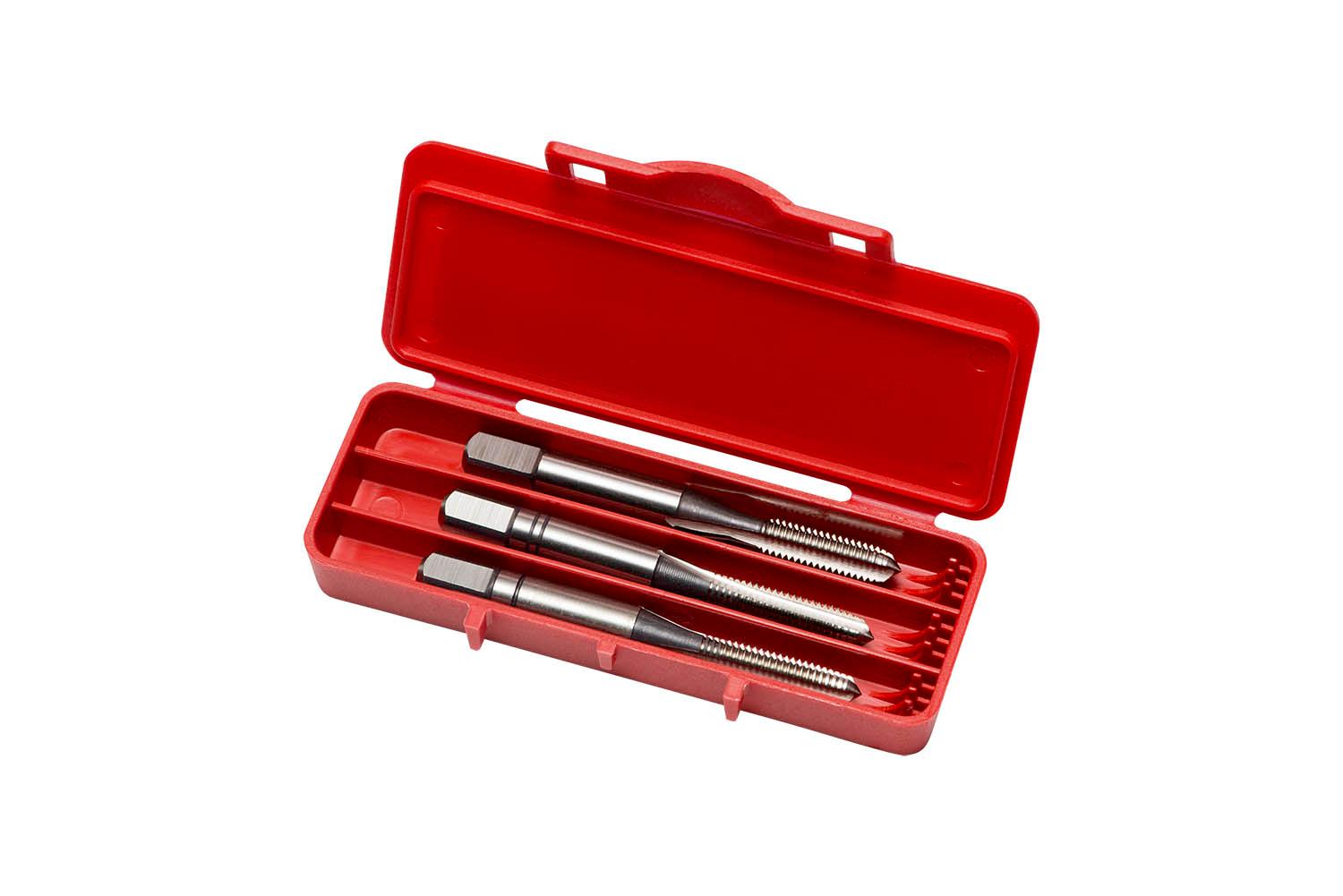

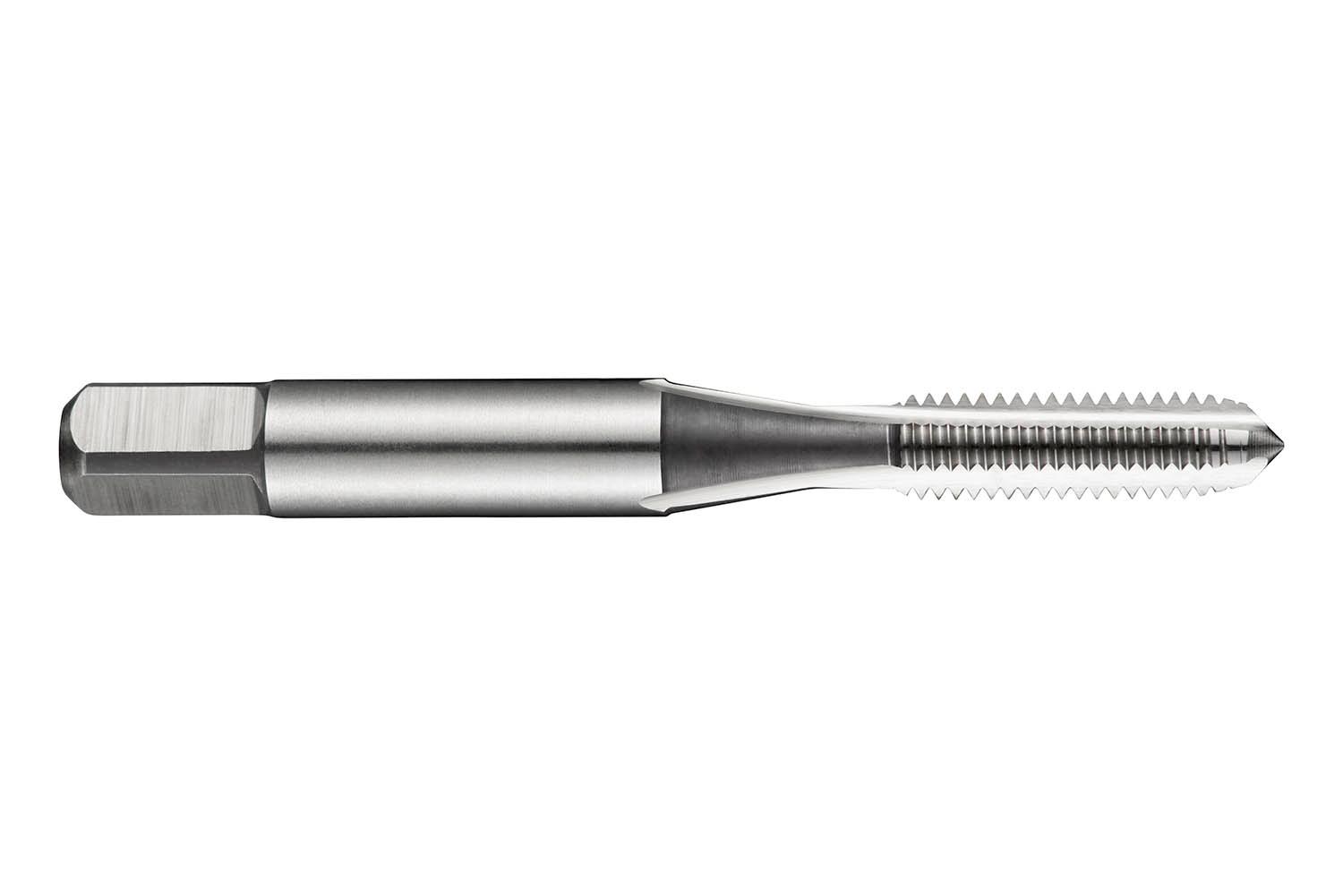

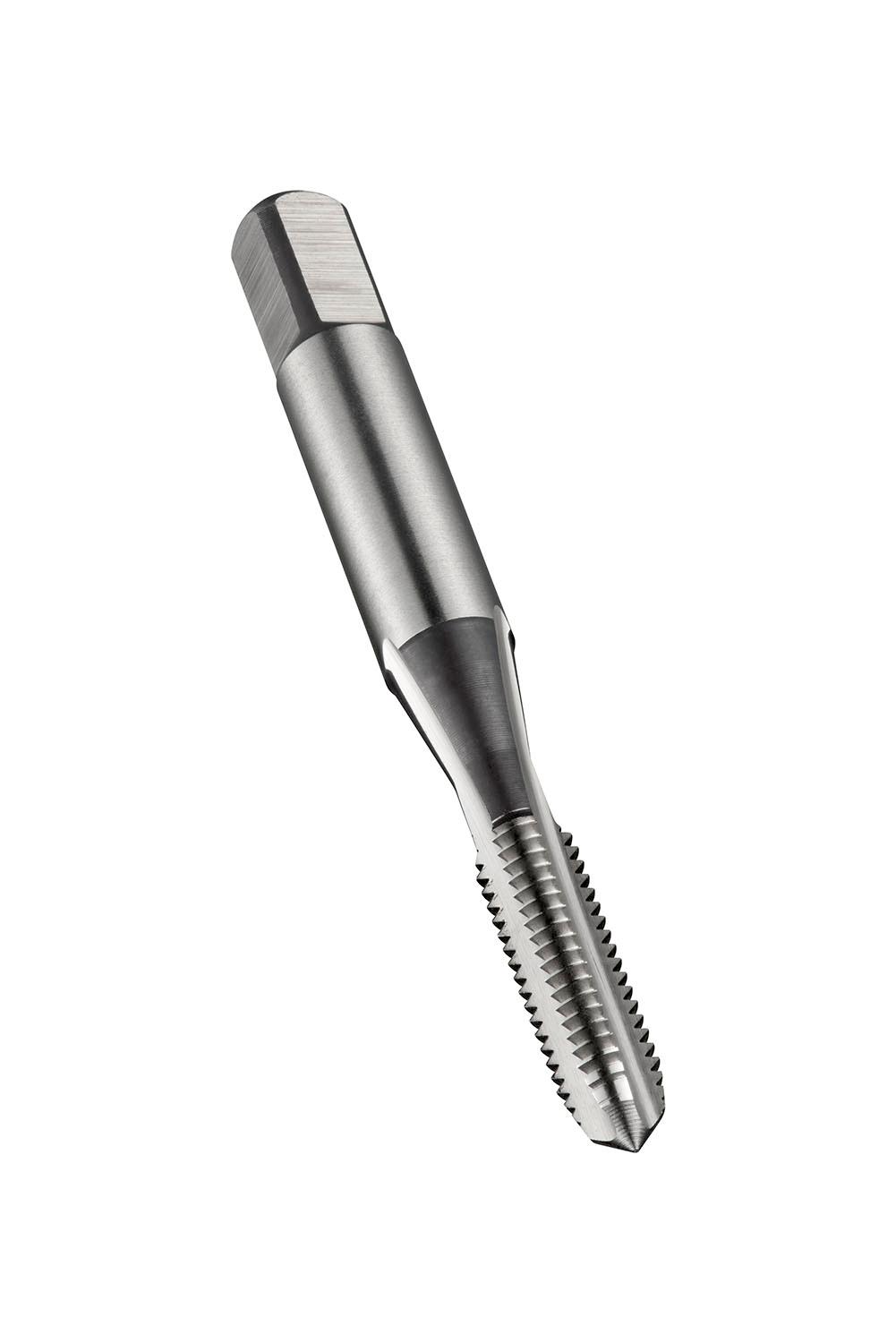

Set of straight flute serial taps NO8 for ISO-Metric thread M3.5 with 0.60 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 4.0mm shank and 3.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight 0.0809 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E100M3.5NO8
Product number (SAP): 86015232
EAN number: 7320760079089

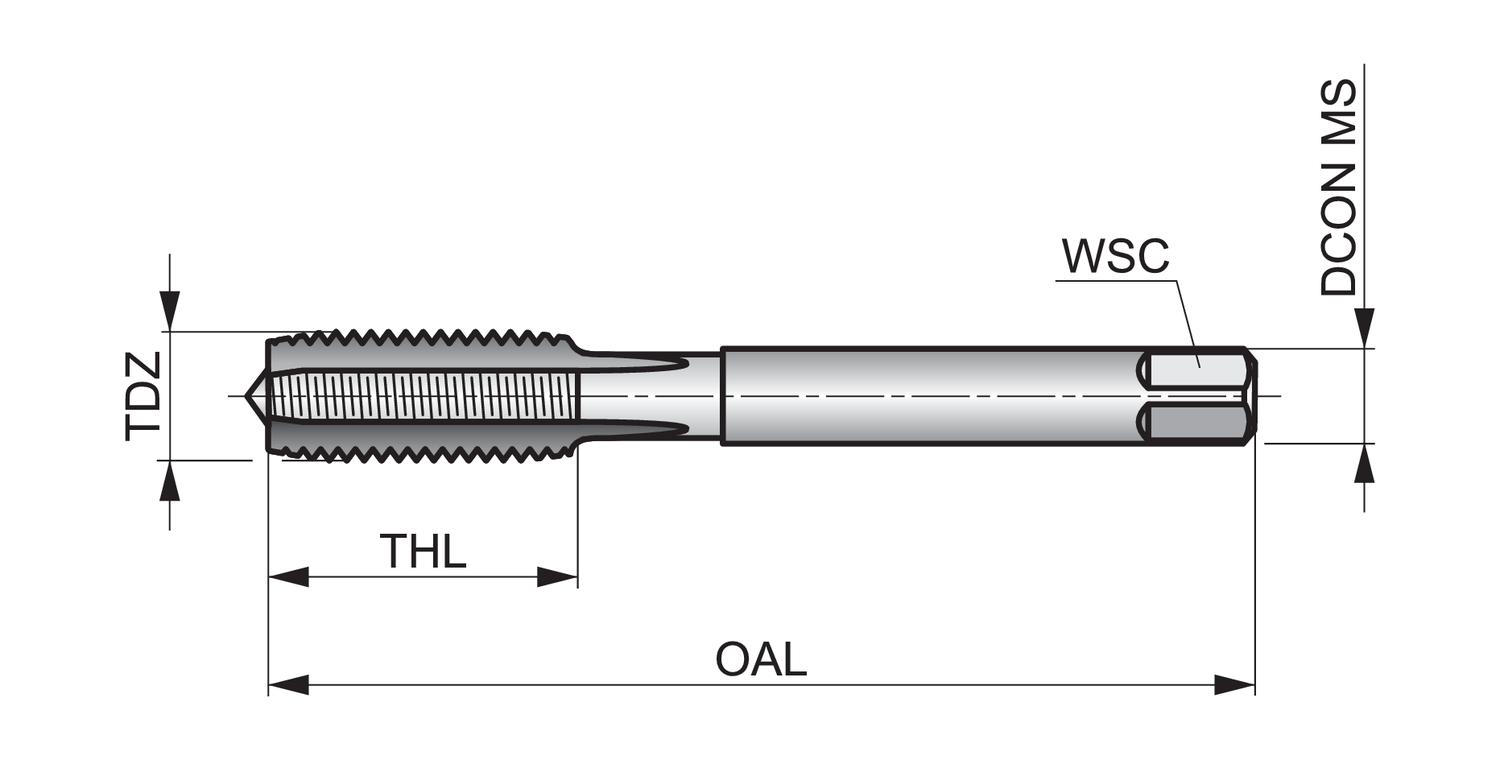

Thread diameter size (TDZ): 3.5
Thread pitch – millimeter (TP): 0.6 mm
Overall length – millimeter (OAL): 45 mm
Overall length – inch (OAL): 1.7717 inch
Threading length – millimeter (THL): 10 mm
Threading length – inch (THL): 0.3937 inch
Connection diameter – inch (DCON MS): 0.1575 inch
Connection diameter – millimeter (DCON MS): 4 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.1181 inch
Clamping width – millimeter (WSC): 3 mm
Premachined hole diameter – inch (PHD): 0.1142 inch
Premachined hole diameter – millimeter (PHD): 2.9 mm
Gross weight – grams: 17.3
ISO: E100M3.5NO8
Ordering code ANSI: E100M3.5NO8

Brand

DORMER
