DORMER E100M30NO8 HSS / HSCo DIN Taps

Product Code: E100M30NO8

$805.56$732.33 Ex. GST

Product Code: E100M30NO8 SKU E100M30NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

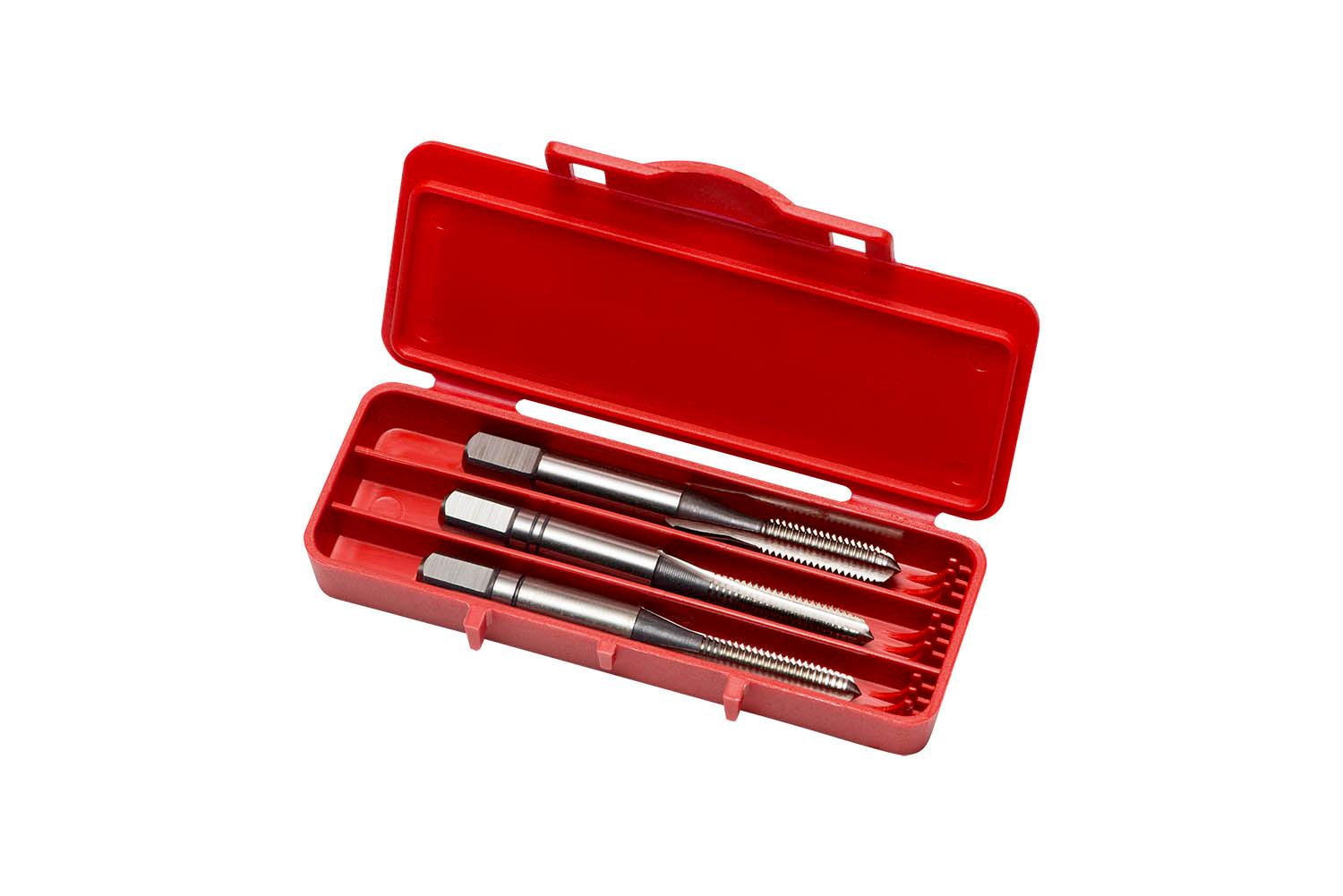

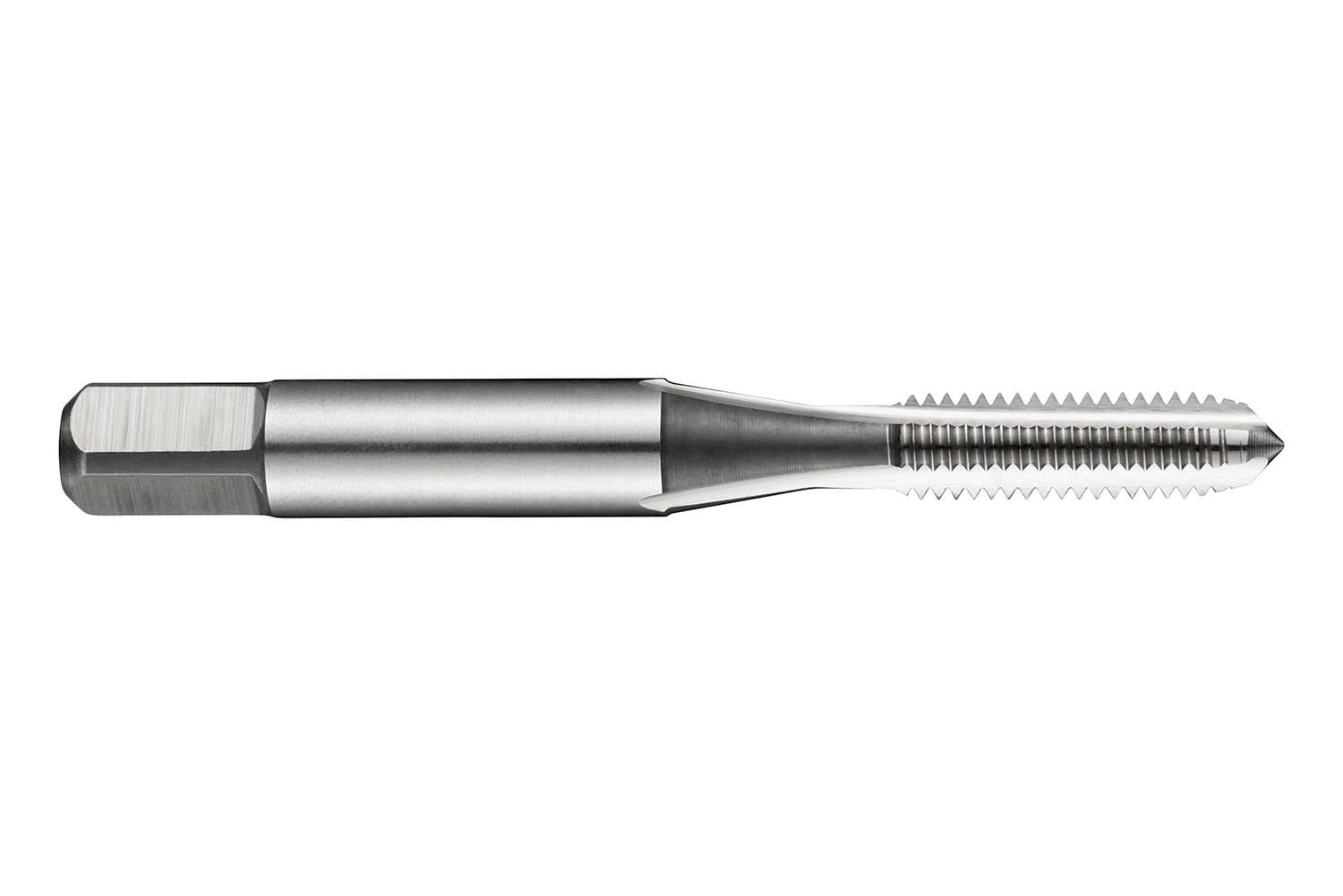

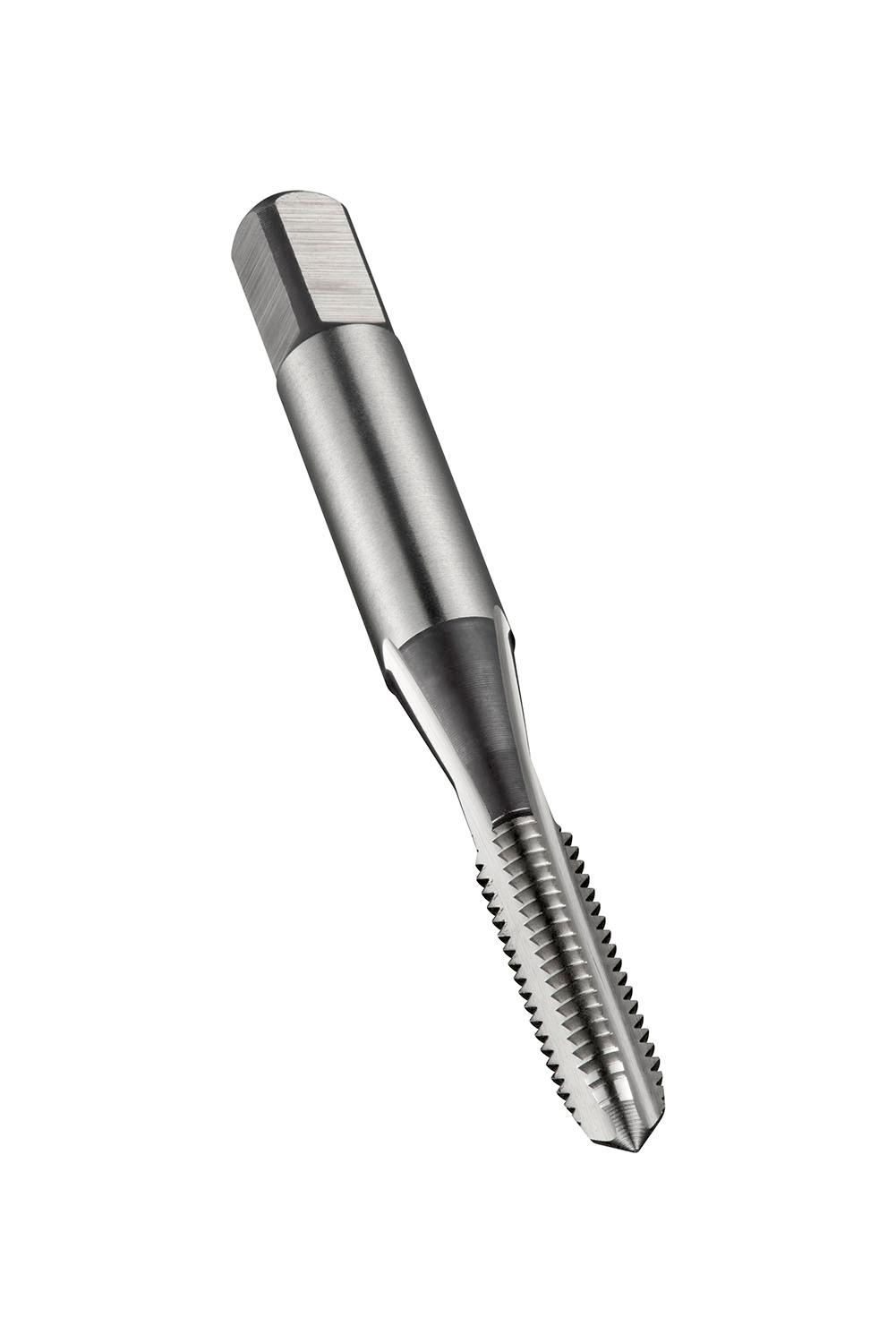

Set of straight flute serial taps NO8 for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 22.0mm shank and 18.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight 0.7821 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E100M30NO8
Product number (SAP): 86015236
EAN number: 7320760079140

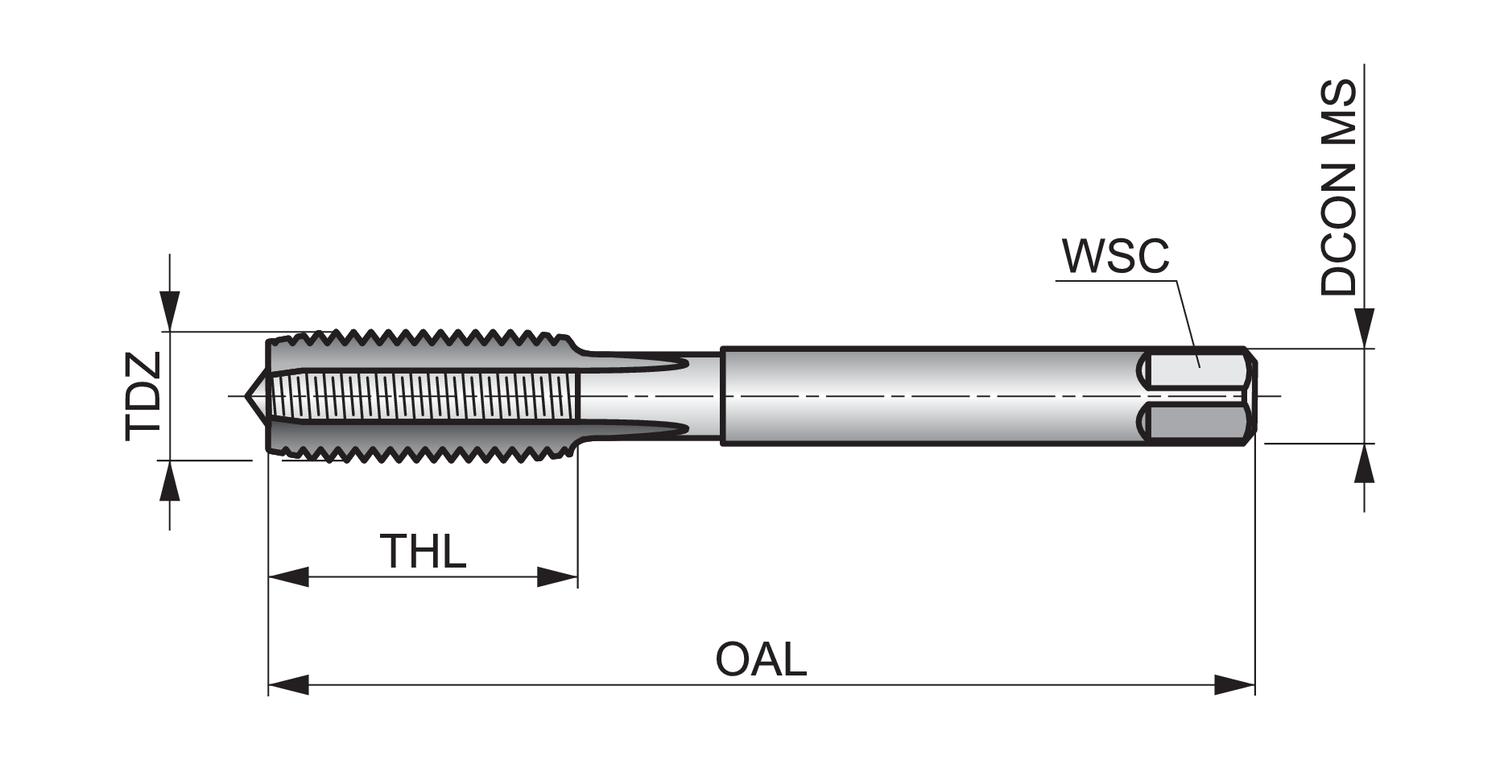

Thread diameter size (TDZ): 30
Thread pitch – millimeter (TP): 3.5 mm
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 45 mm
Threading length – inch (THL): 1.7717 inch
Connection diameter – inch (DCON MS): 0.8661 inch
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Premachined hole diameter – inch (PHD): 1.0433 inch
Premachined hole diameter – millimeter (PHD): 26.5 mm
Gross weight – grams: 1170
ISO: E100M30NO8
Ordering code ANSI: E100M30NO8

Brand

DORMER
