DORMER E100M9NO8 HSS / HSCo DIN Taps

Product Code: E100M9NO8

$182.41$165.83 Ex. GST

Product Code: E100M9NO8 SKU E100M9NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

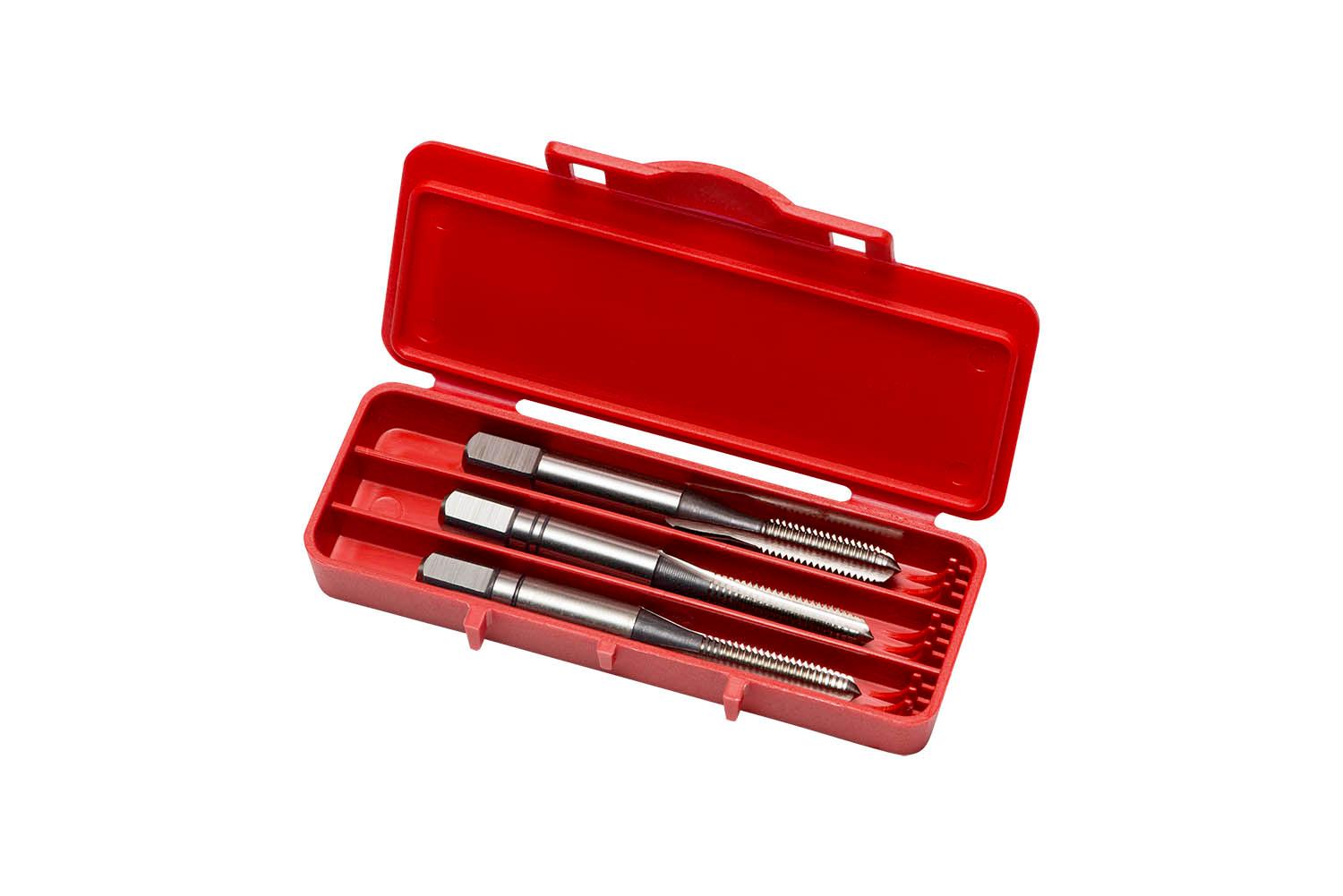

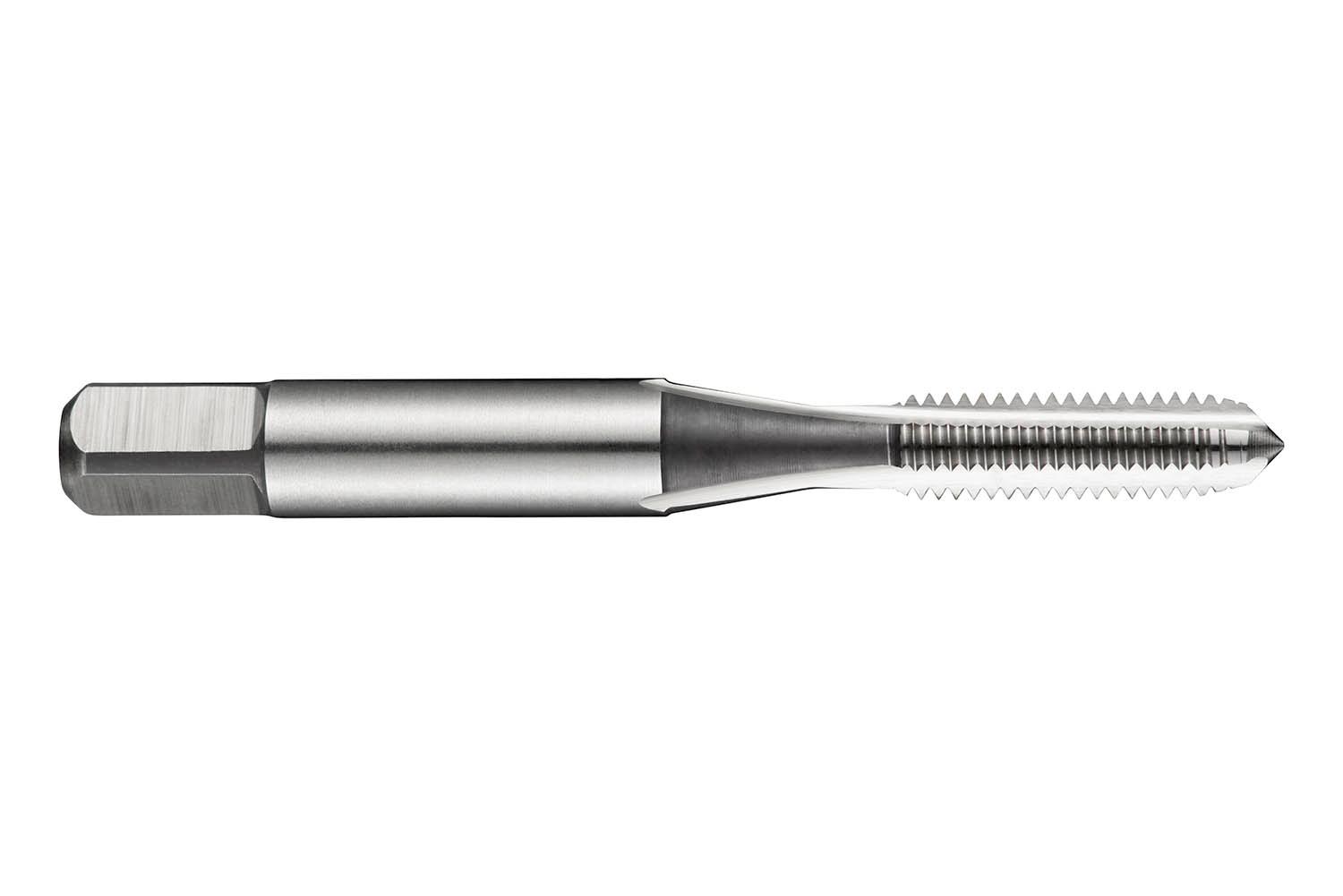

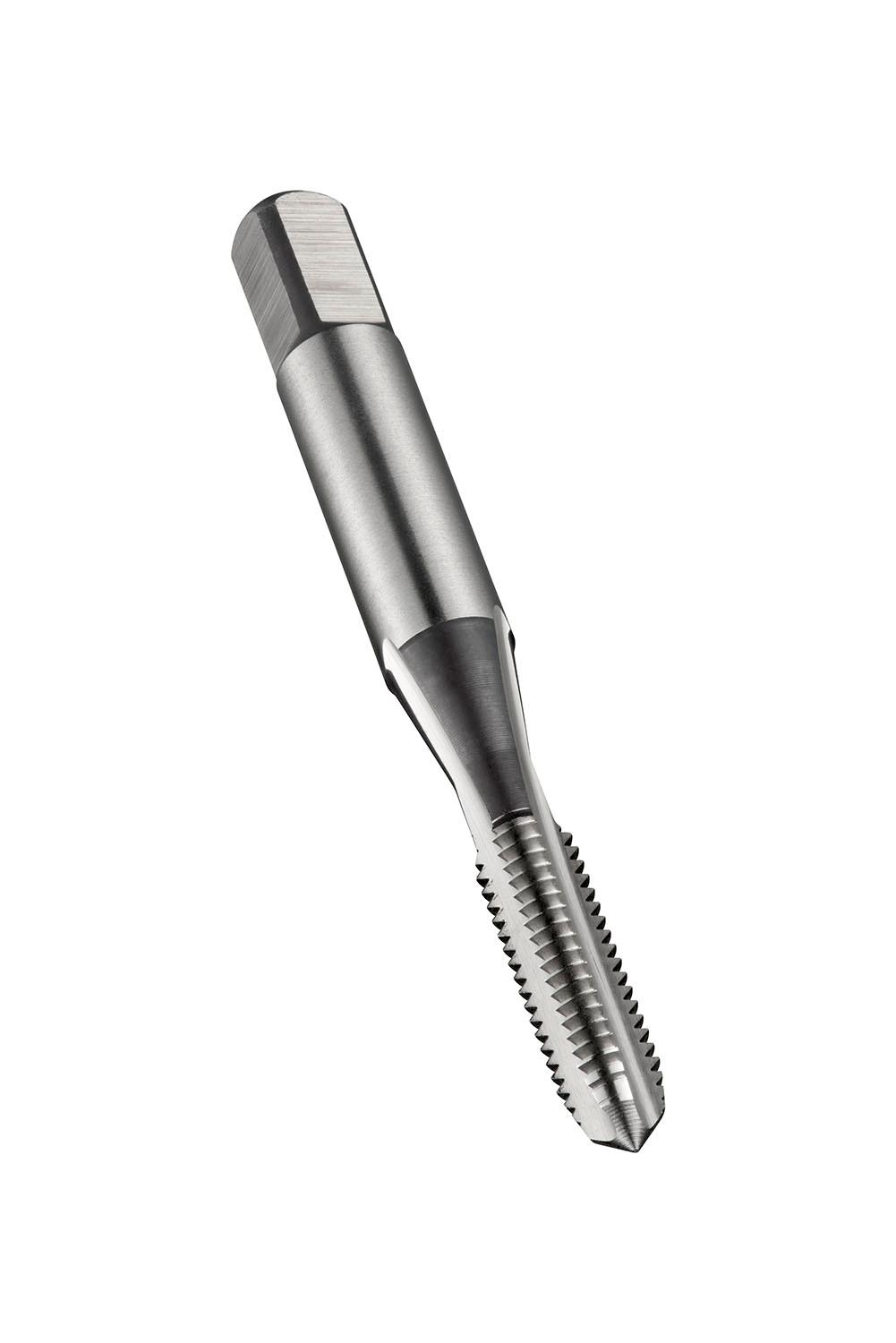

Set of straight flute serial taps NO8 for ISO-Metric thread M9 with 1.25 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 7.0mm shank and 5.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight 0.1771 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E100M9NO8
Product number (SAP): 86015296
EAN number: 7320760079706

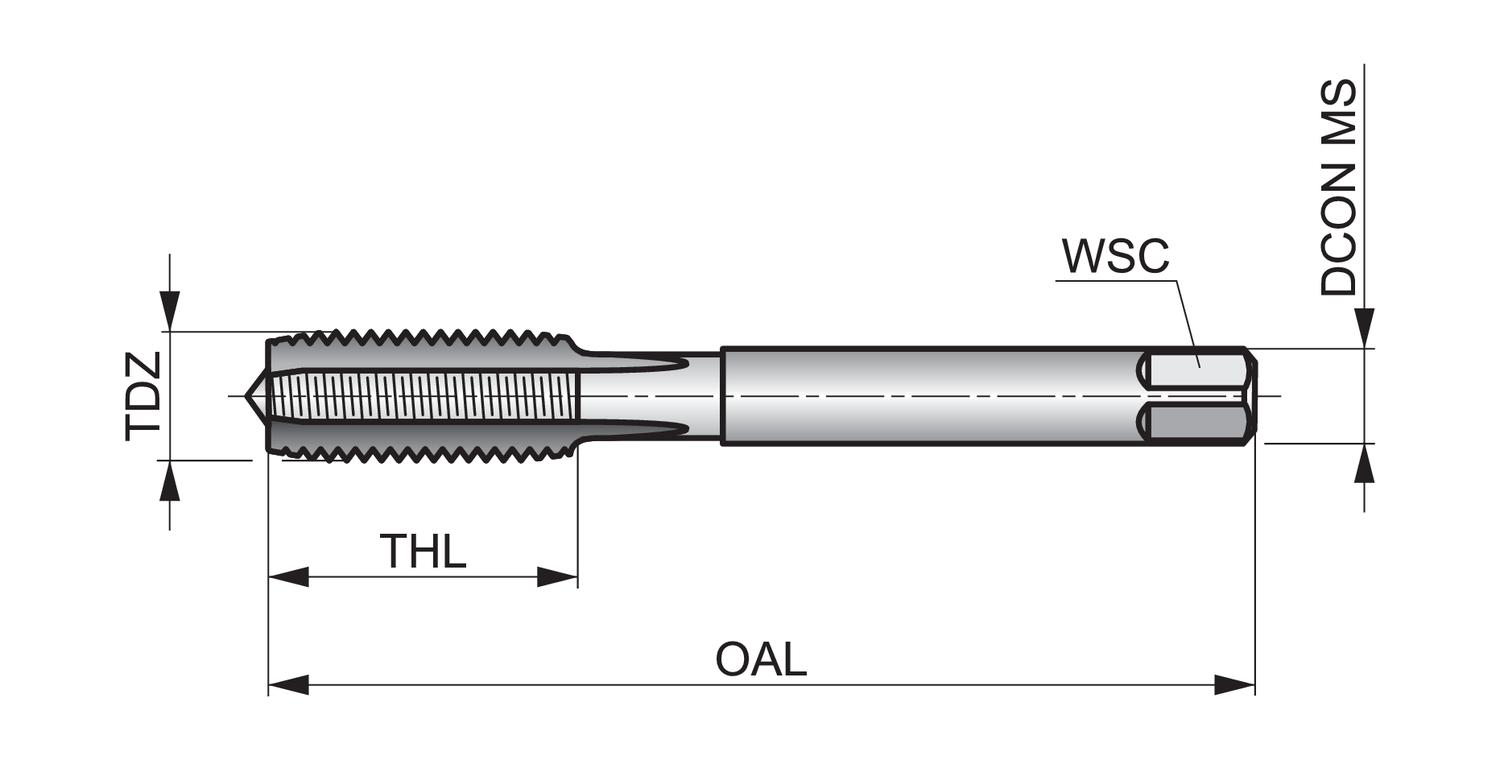

Thread diameter size (TDZ): 9
Thread pitch – millimeter (TP): 1.25 mm
Overall length – millimeter (OAL): 63 mm
Overall length – inch (OAL): 2.4803 inch
Threading length – millimeter (THL): 20 mm
Threading length – inch (THL): 0.7874 inch
Connection diameter – inch (DCON MS): 0.2756 inch
Connection diameter – millimeter (DCON MS): 7 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.2165 inch
Clamping width – millimeter (WSC): 5.5 mm
Premachined hole diameter – inch (PHD): 0.3071 inch
Premachined hole diameter – millimeter (PHD): 7.8 mm
Gross weight – grams: 68.2
ISO: E100M9NO8
Ordering code ANSI: E100M9NO8

Brand

DORMER
