DORMER E101M10NO8 HSS / HSCo DIN Taps

Description

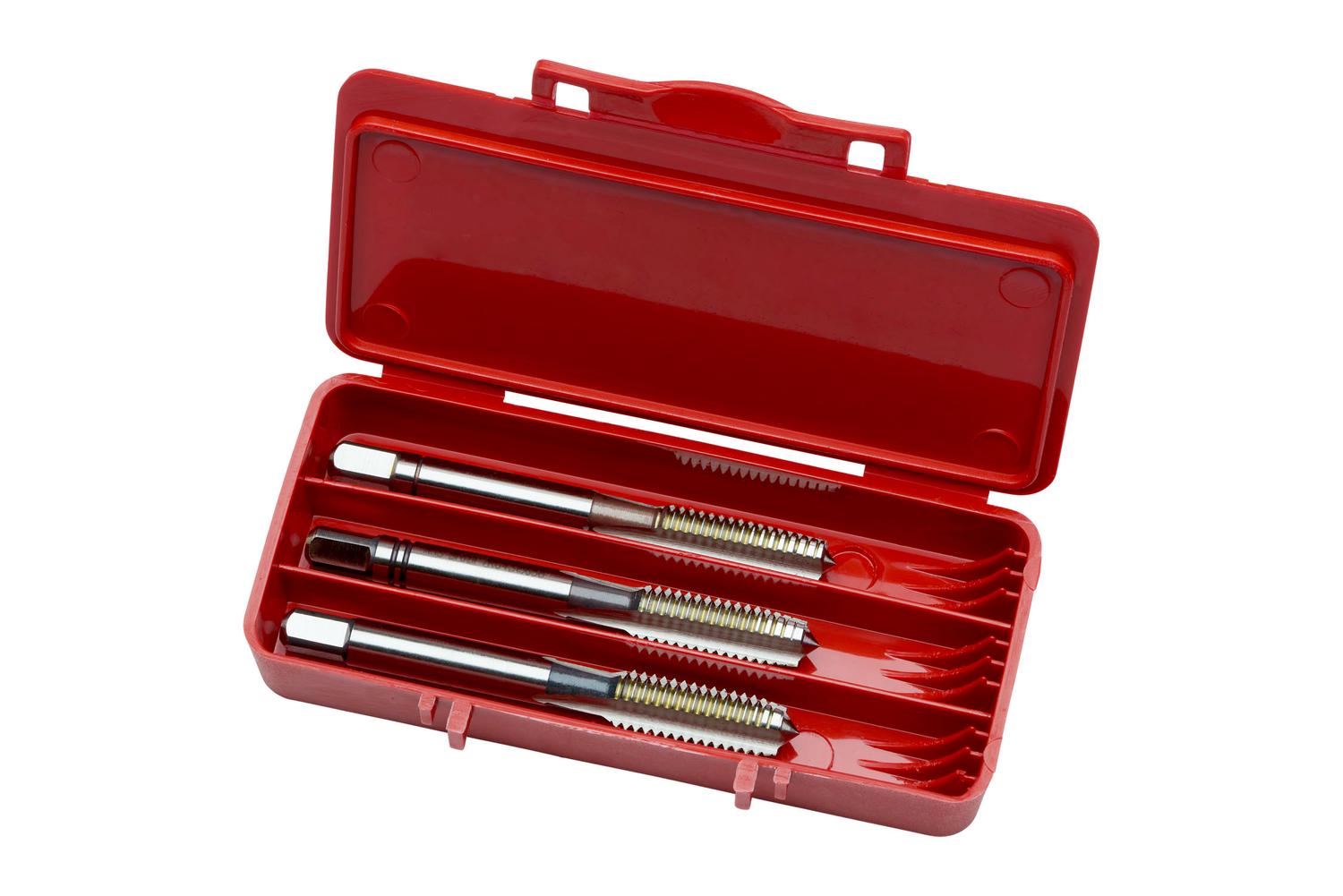

Set of straight flute serial taps NO8 for left hand ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 7.0mm shank and 5.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight	0.2167 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E101M10NO8 Product number (SAP): 86015298 EAN number: 7320760079744 Thread diameter size (TDZ): 10 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.7559 inch Threading length – millimeter (THL): 22 mm Threading length – inch (THL): 0.8661 inch Connection diameter – inch (DCON MS): 0.2756 inch Connection diameter – millimeter (DCON MS): 7 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.2165 inch Clamping width – millimeter (WSC): 5.5 mm Premachined hole diameter – inch (PHD): 0.3346 inch Premachined hole diameter – millimeter (PHD): 8.5 mm Gross weight – grams: 77.6 ISO: E101M10NO8 Ordering code ANSI: E101M10NO8

Need Technical Advice?

Description

Additional information

Brand

DORMER
