DORMER E102M14NO8 HSS / HSCo DIN Taps

Product Code: E102M14NO8

$343.30$312.09 Ex. GST

Product Code: E102M14NO8 SKU E102M14NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

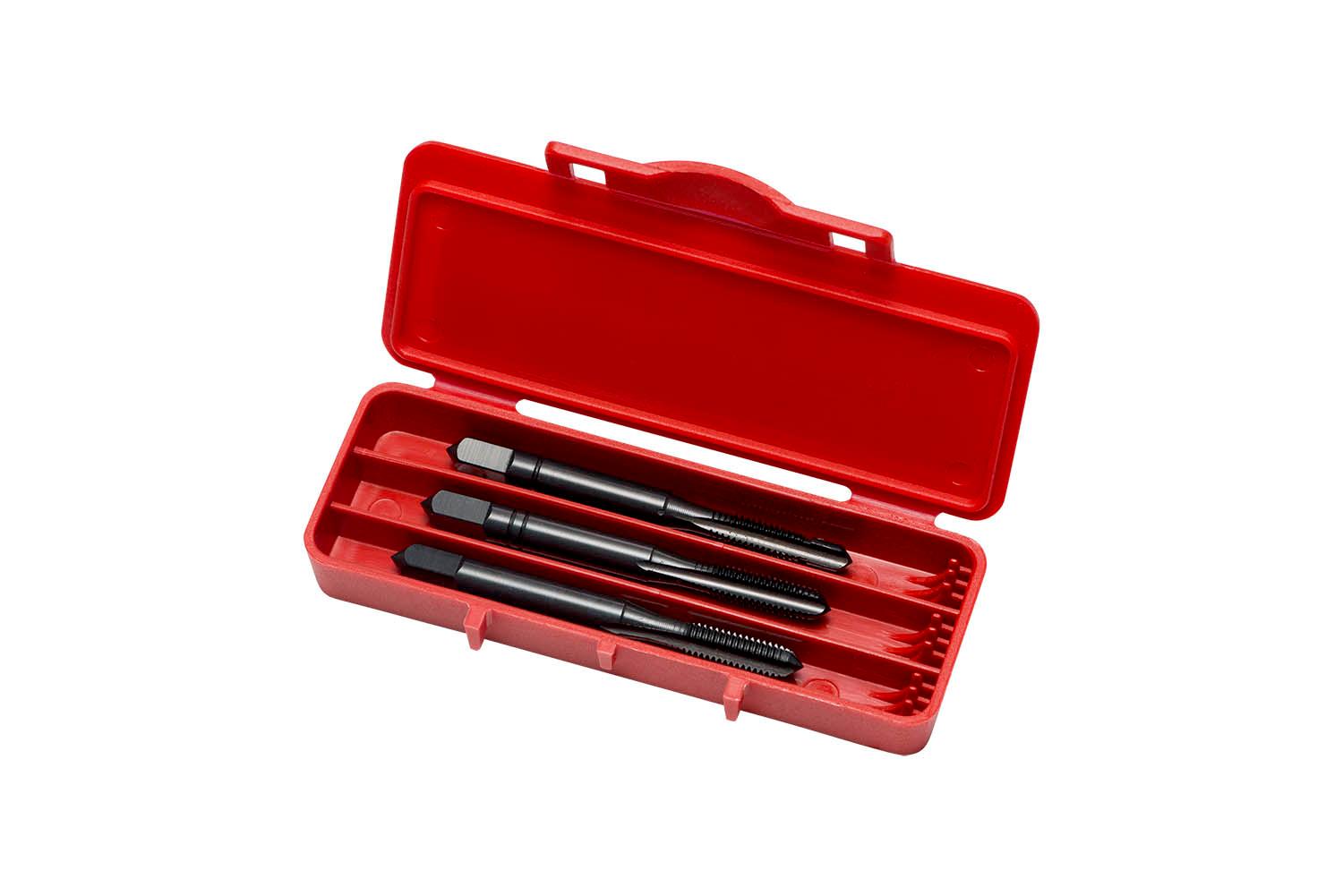

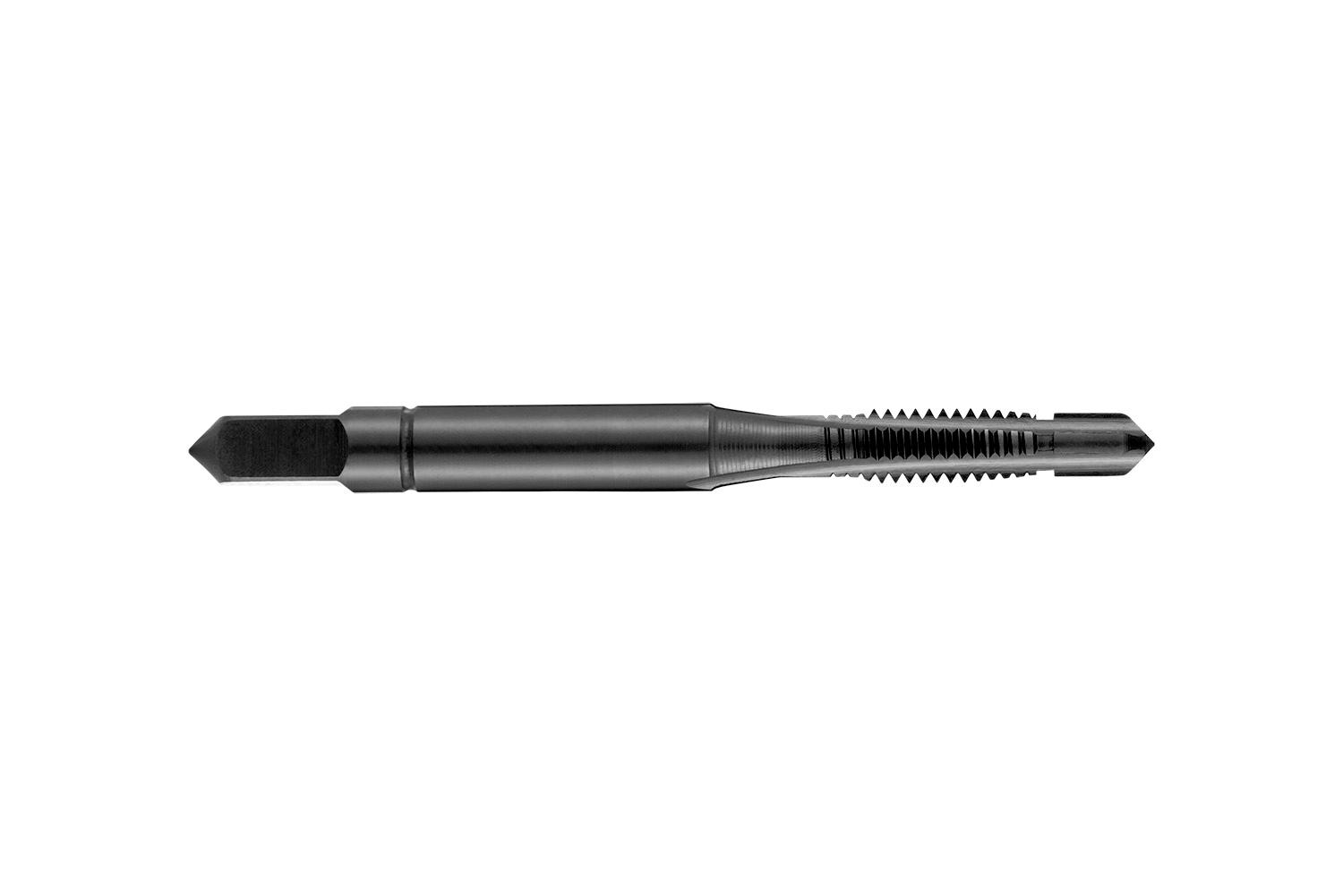

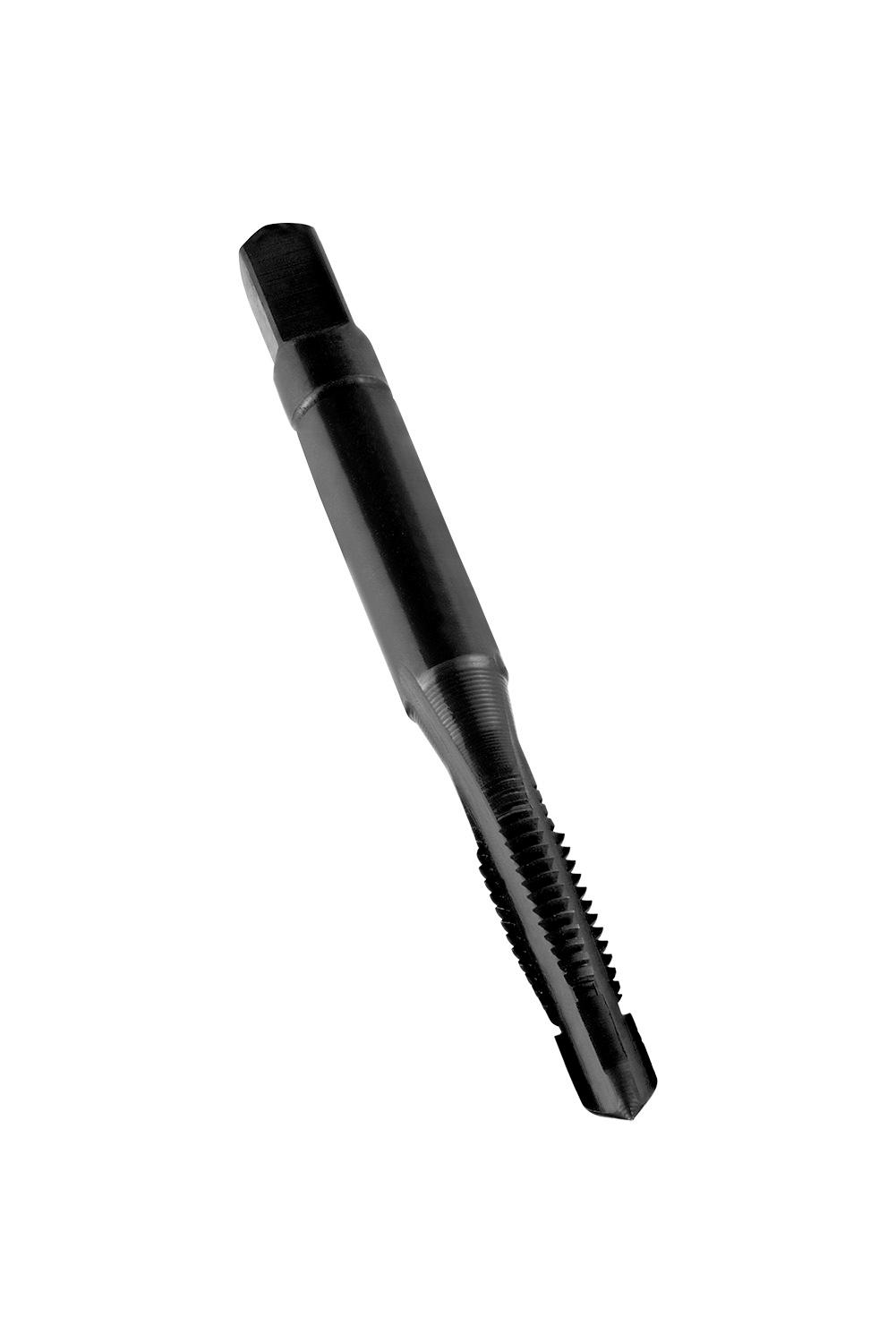

Set of straight flute serial taps NO8 for ISO-Metric thread M14 with 2.00 mm pitch and 6HX class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 11.0mm shank and 9.0mm square drive, cobalt based HSS-E with steam tempered surface finish for 1.5xD through or blind hole threading in stainless steel and cast-iron

Additional information

Weight 0.3333 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E102M14NO8
Product number (SAP): 86015315
EAN number: 7320760080085
Thread diameter size (TDZ): 14
Thread pitch – millimeter (TP): 2 mm
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 25 mm
Threading length – inch (THL): 0.9843 inch
Connection diameter – inch (DCON MS): 0.4331 inch
Connection diameter – millimeter (DCON MS): 11 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Premachined hole diameter – inch (PHD): 0.4724 inch
Premachined hole diameter – millimeter (PHD): 12 mm
Gross weight – grams: 192
ISO: E102M14NO8
Ordering code ANSI: E102M14NO8

Brand

DORMER
