DORMER E102M24NO8 HSS / HSCo DIN Taps

Product Code: E102M24NO8

$967.58$879.62 Ex. GST

Product Code: E102M24NO8 SKU E102M24NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

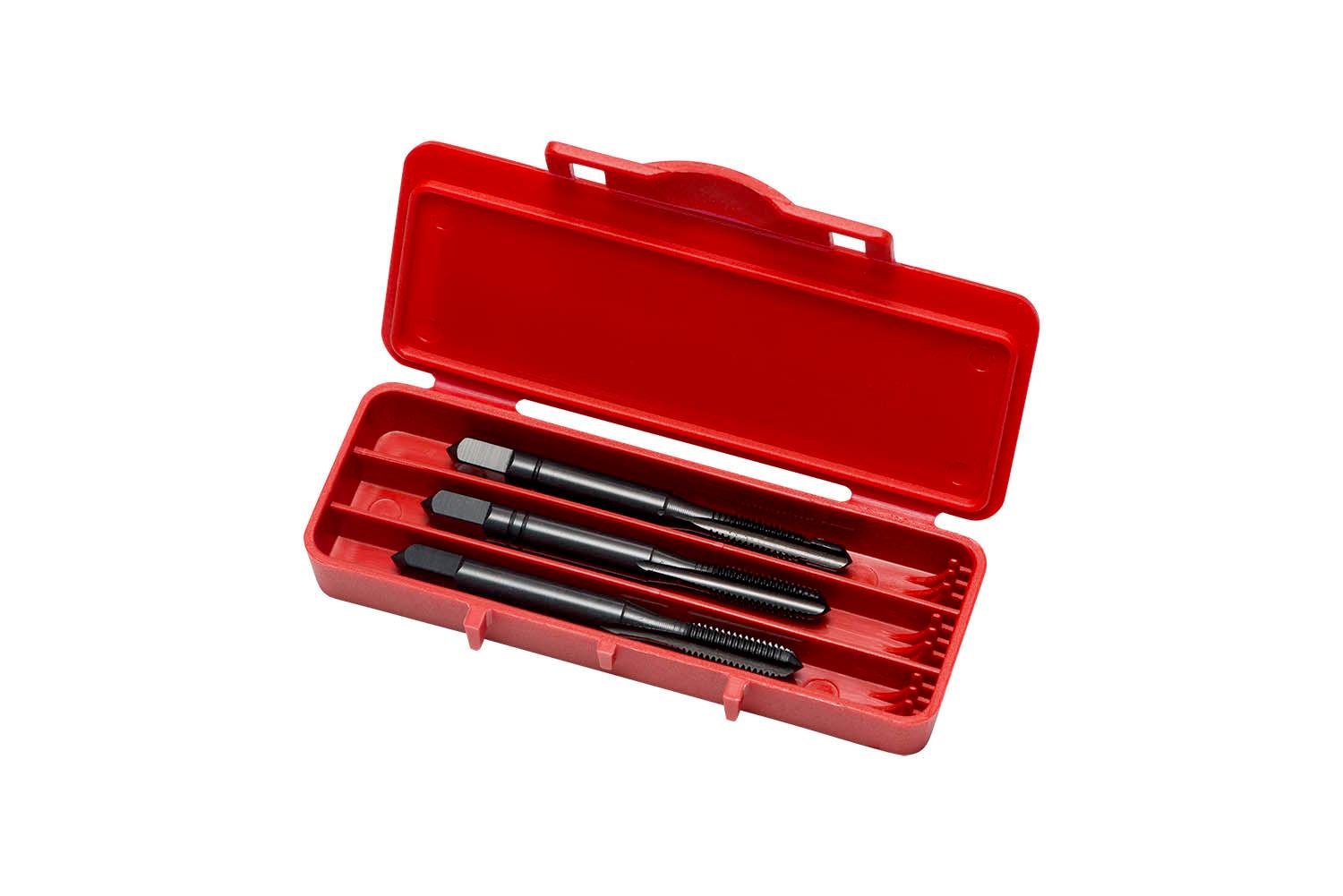

Set of straight flute serial taps NO8 for ISO-Metric thread M24 with 3.00 mm pitch and 6HX class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 18.0mm shank and 14.5mm square drive, cobalt based HSS-E with steam tempered surface finish for 1.5xD through or blind hole threading in stainless steel and cast-iron

Additional information

Weight 0.9394 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E102M24NO8
Product number (SAP): 86015319
EAN number: 7320760080122

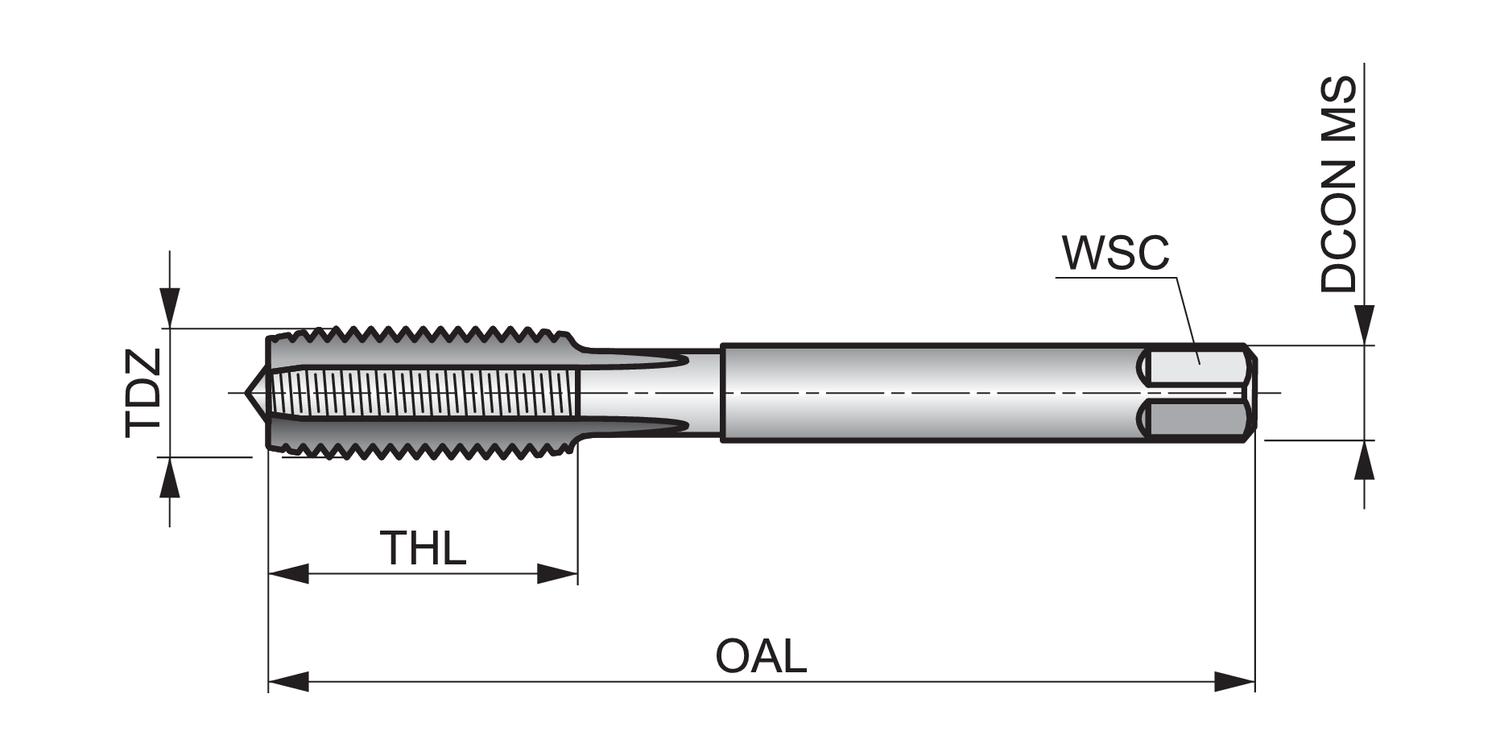

Thread diameter size (TDZ): 24
Thread pitch – millimeter (TP): 3 mm
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 38 mm
Threading length – inch (THL): 1.4961 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.5709 inch
Clamping width – millimeter (WSC): 14.5 mm
Premachined hole diameter – inch (PHD): 0.8268 inch
Premachined hole diameter – millimeter (PHD): 21 mm
Gross weight – grams: 670.4
ISO: E102M24NO8
Ordering code ANSI: E102M24NO8

Brand

DORMER
