DORMER E105M12X1.25NO9 HSS / HSCo DIN Taps

Description

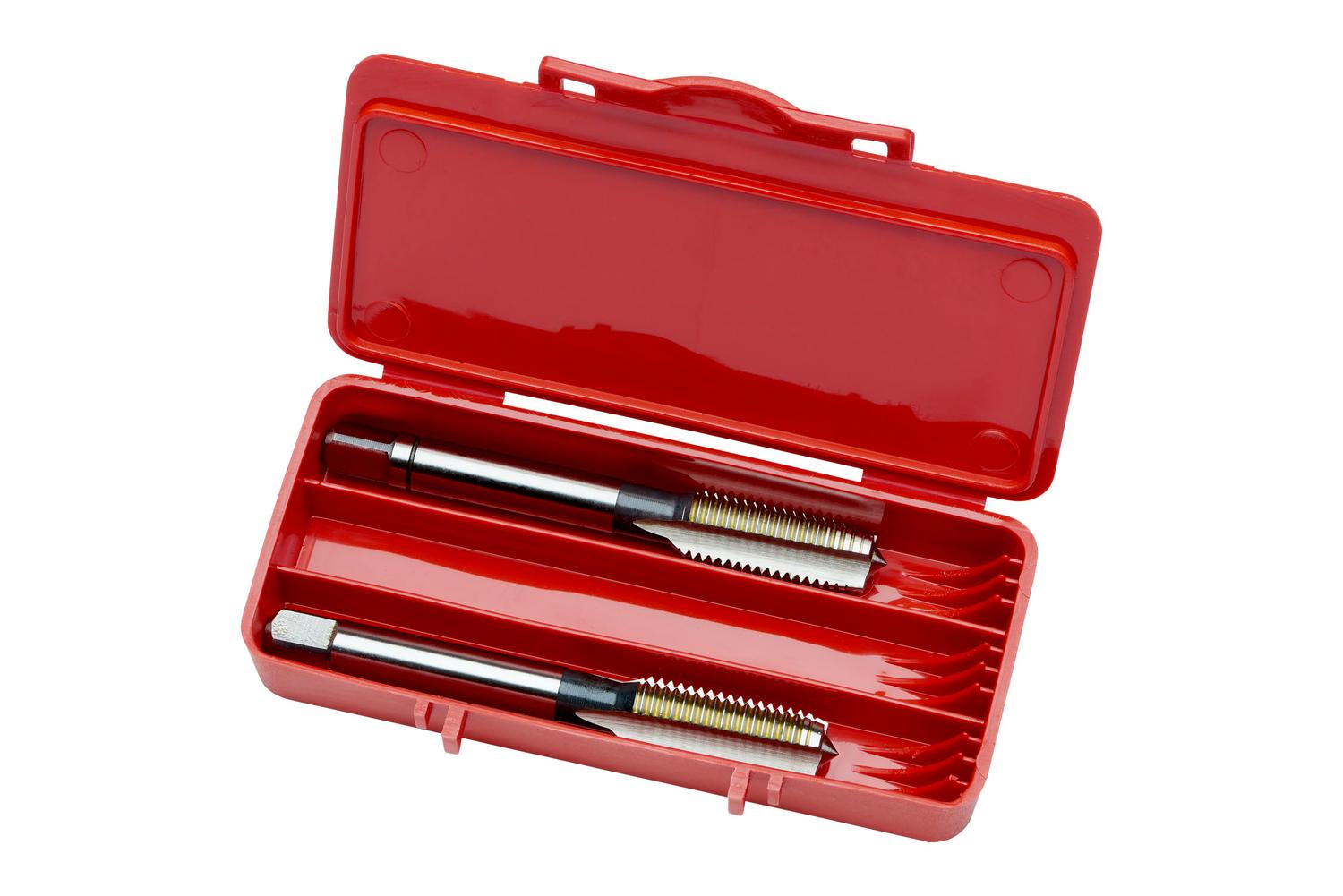

Set of straight flute serial taps NO9 for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 9.0mm shank and 7.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight	0.1441 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E105M12X1.25NO9 Product number (SAP): 86015347 EAN number: 7320760080382 Thread diameter size (TDZ): 12 Thread pitch – millimeter (TP): 1.25 mm Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.7559 inch Threading length – millimeter (THL): 16 mm Threading length – inch (THL): 0.6299 inch Connection diameter – inch (DCON MS): 0.3543 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.2756 inch Clamping width – millimeter (WSC): 7 mm Premachined hole diameter – inch (PHD): 0.4252 inch Premachined hole diameter – millimeter (PHD): 10.8 mm Gross weight – grams: 98.8 ISO: E105M12X1.25NO9 Ordering code ANSI: E105M12X1.25NO9
