DORMER E105M4X.5NO9 HSS / HSCo DIN Taps

Description

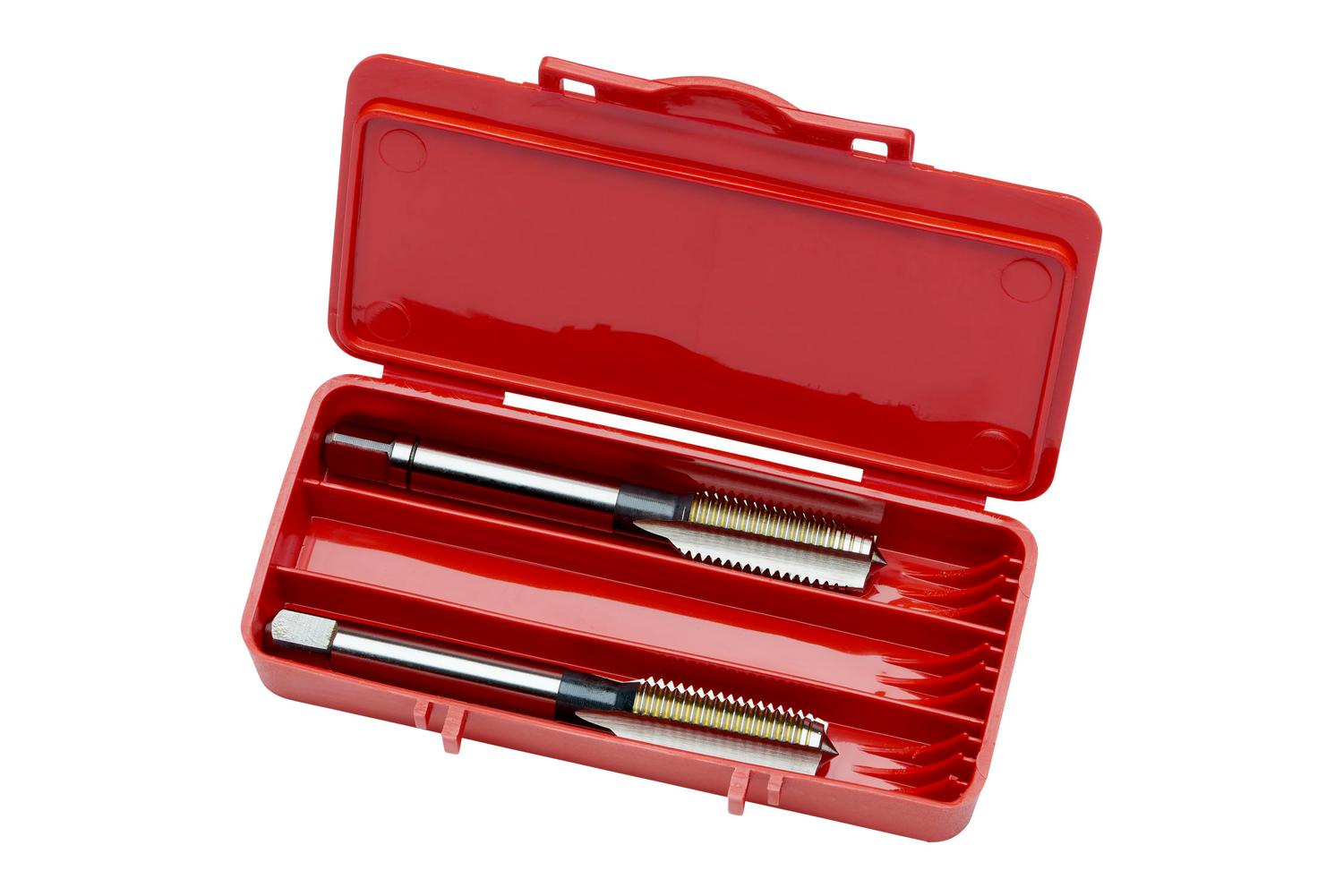

Set of straight flute serial taps NO9 for ISO-Metric Fine thread M4 with 0.50 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 4.5mm shank and 3.4mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight	0.0979 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E105M4X.5NO9 Product number (SAP): 86015485 EAN number: 7320760081419 Thread diameter size (TDZ): 4 Thread pitch – millimeter (TP): 0.5 mm Overall length – millimeter (OAL): 45 mm Overall length – inch (OAL): 1.7717 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.4724 inch Connection diameter – inch (DCON MS): 0.1772 inch Connection diameter – millimeter (DCON MS): 4.5 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.1339 inch Clamping width – millimeter (WSC): 3.4 mm Premachined hole diameter – inch (PHD): 0.1378 inch Premachined hole diameter – millimeter (PHD): 3.5 mm Gross weight – grams: 15.6 ISO: E105M4X.5NO9 Ordering code ANSI: E105M4X.5NO9

Need Technical Advice?

Description

Additional information

Brand

DORMER
