DORMER E105M8X.75NO9 HSS / HSCo DIN Taps

Description

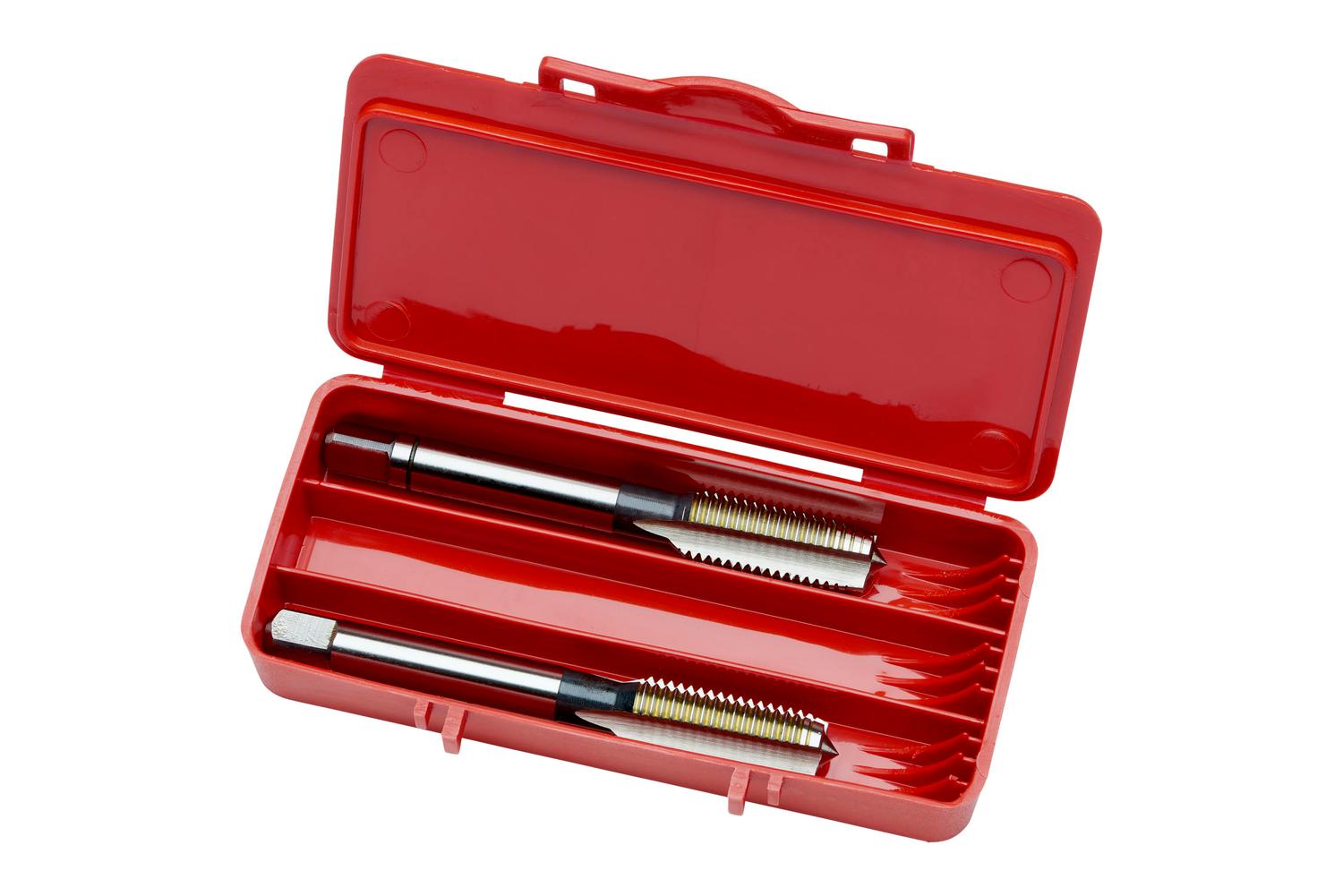

Set of straight flute serial taps NO9 for ISO-Metric Fine thread M8 with 0.75 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 6.0mm shank and 4.9mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight	0.1188 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E105M8X.75NO9 Product number (SAP): 86015507 EAN number: 7320760081990 Thread diameter size (TDZ): 8 Thread pitch – millimeter (TP): 0.75 mm Overall length – millimeter (OAL): 56 mm Overall length – inch (OAL): 2.2047 inch Threading length – millimeter (THL): 16 mm Threading length – inch (THL): 0.6299 inch Connection diameter – inch (DCON MS): 0.2362 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.1929 inch Clamping width – millimeter (WSC): 4.9 mm Premachined hole diameter – inch (PHD): 0.2874 inch Premachined hole diameter – millimeter (PHD): 7.3 mm Gross weight – grams: 40 ISO: E105M8X.75NO9 Ordering code ANSI: E105M8X.75NO9
