DORMER E1081/2NO8 HSS / HSCo DIN Taps

Product Code: E1081/2NO8

$245.86$223.51 Ex. GST

Product Code: E1081/2NO8 SKU E1081/2NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

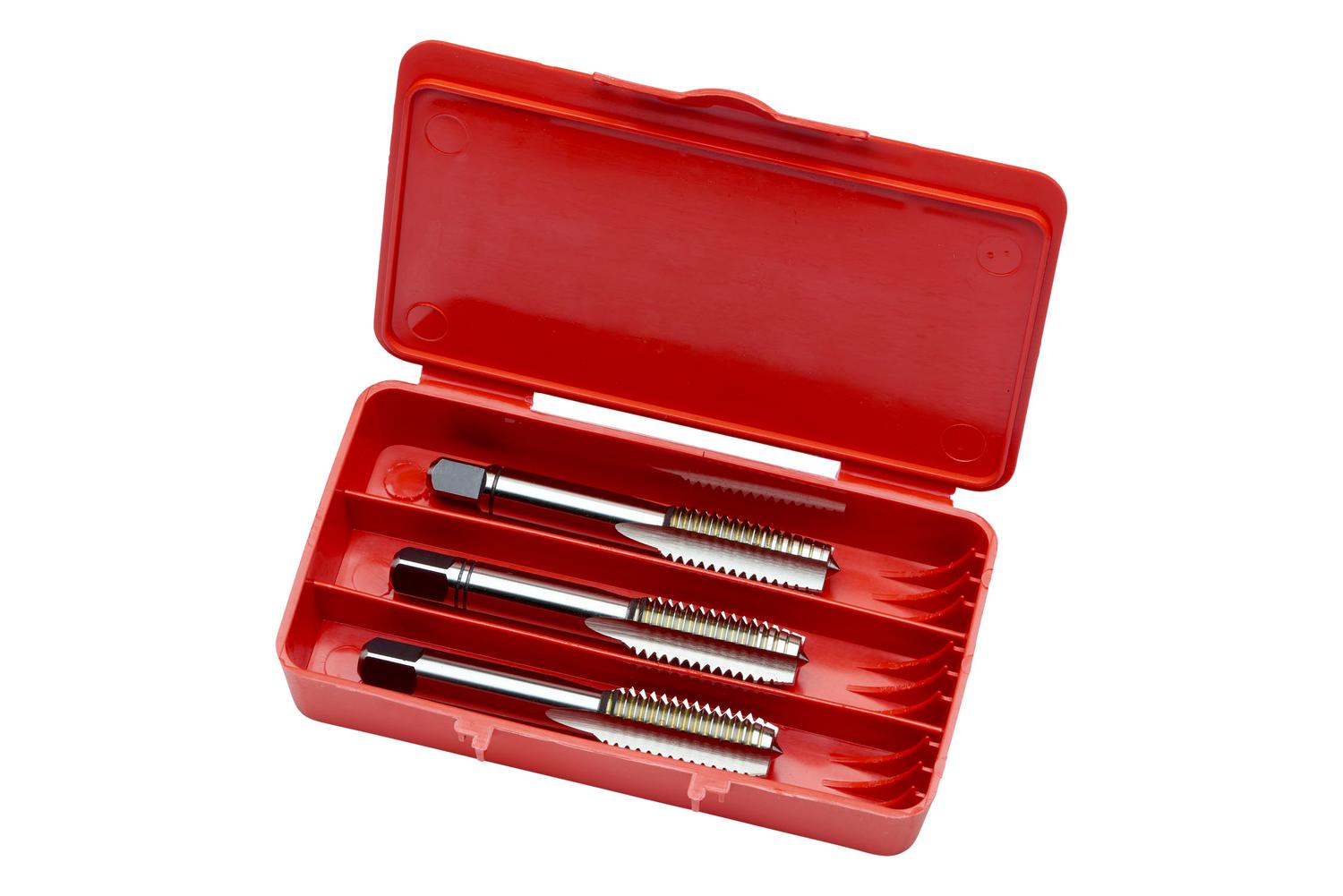

Set of straight flute serial taps NO8 for Unified National Coarse thread UNC 1/2″ with 13 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 9.0mm shank and 7.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight 0.2387 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E1081/2NO8
Product number (SAP): 86015518
EAN number: 7320760082232
Thread diameter size (TDZ): 1/2
Thread diameter – millimeter (TD): 12.7 mm
Threads per inch (TPI): 13
Overall length – millimeter (OAL): 75 mm
Overall length – inch (OAL): 2.9528 inch
Threading length – millimeter (THL): 27 mm
Threading length – inch (THL): 1.063 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.2756 inch
Clamping width – millimeter (WSC): 7 mm
Premachined hole diameter – inch (PHD): 0.4252 inch
Premachined hole diameter – millimeter (PHD): 10.8 mm
Gross weight – grams: 138.7
ISO: E1081/2NO8
Ordering code ANSI: E1081/2NO8

Brand

DORMER
