DORMER E1081NO8 HSS / HSCo DIN Taps

Product Code: E1081NO8

$863.35$784.86 Ex. GST

Product Code: E1081NO8 SKU E1081NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

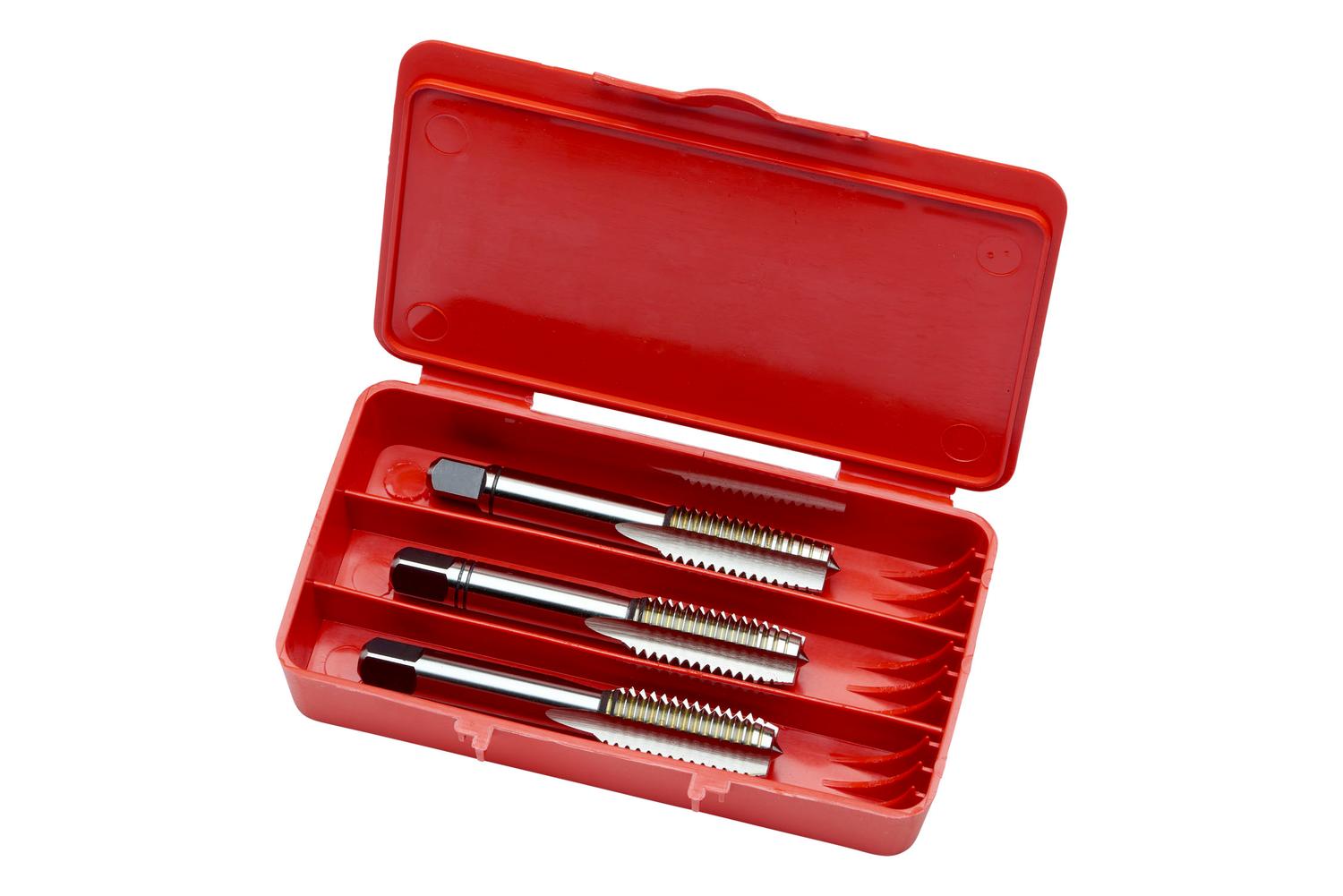

Set of straight flute serial taps NO8 for Unified National Coarse thread UNC 1″ with 8 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 20.0mm shank and 16.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight 0.8382 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E1081NO8
Product number (SAP): 86015525
EAN number: 7320760082119
Thread diameter size (TDZ): 1"
Thread diameter – millimeter (TD): 25.4 mm
Threads per inch (TPI): 8
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 38 mm
Threading length – inch (THL): 1.4961 inch
Connection diameter – inch (DCON MS): 0.7874 inch
Connection diameter – millimeter (DCON MS): 20 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.6299 inch
Clamping width – millimeter (WSC): 16 mm
Premachined hole diameter – inch (PHD): 0.876 inch
Premachined hole diameter – millimeter (PHD): 22.25 mm
Gross weight – grams: 792.1
ISO: E1081NO8
Ordering code ANSI: E1081NO8

Brand

DORMER
