DORMER E1083/8NO8 HSS / HSCo DIN Taps

Product Code: E1083/8NO8

$189.21$172.01 Ex. GST

Product Code: E1083/8NO8 SKU E1083/8NO8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

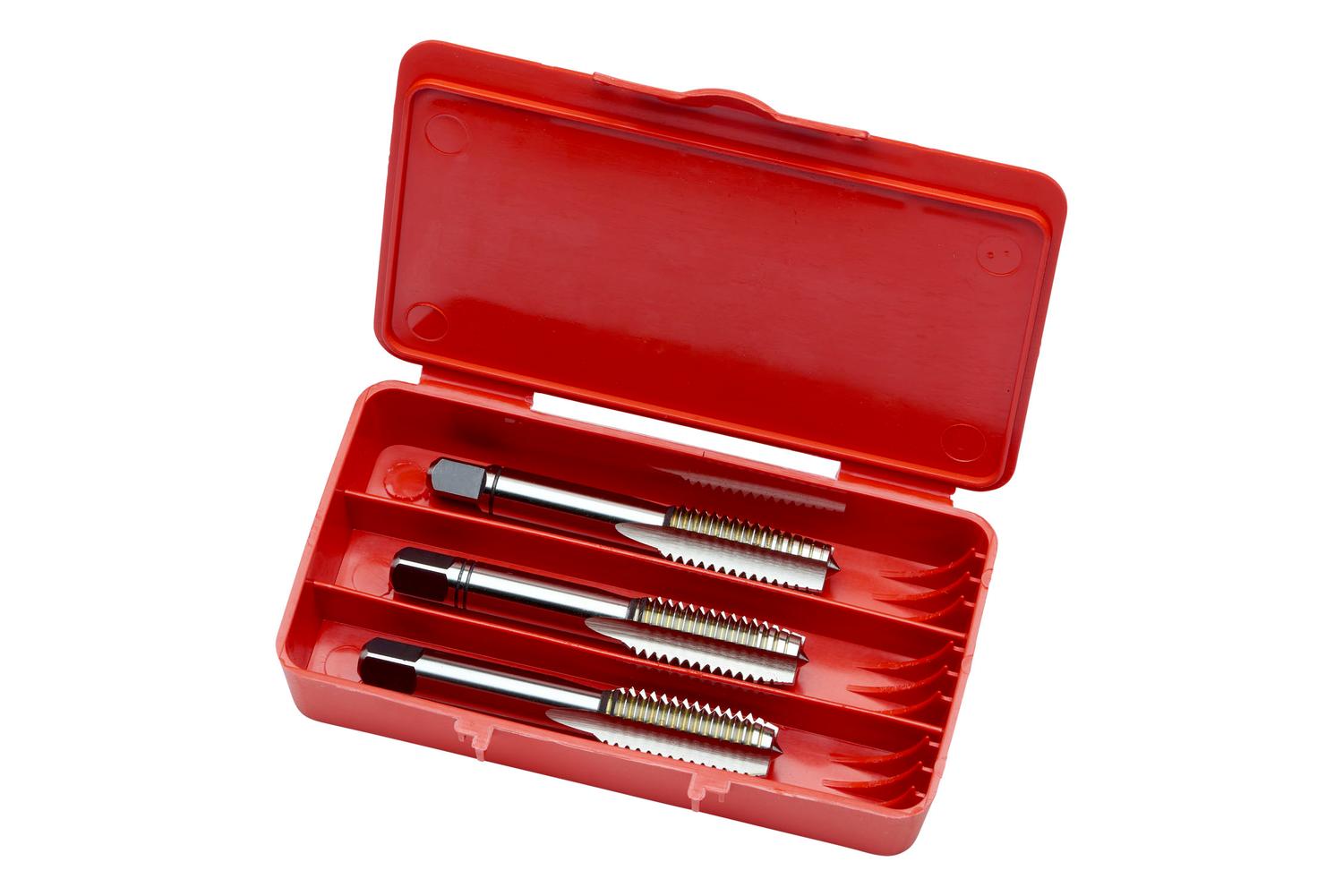

Set of straight flute serial taps NO8 for Unified National Coarse thread UNC 3/8″ with 16 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 7.0mm shank and 5.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight 0.1837 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E1083/8NO8
Product number (SAP): 86015529
EAN number: 7320760082478
Thread diameter size (TDZ): 3/8
Thread diameter – millimeter (TD): 9.53 mm
Threads per inch (TPI): 16
Overall length – millimeter (OAL): 70 mm
Overall length – inch (OAL): 2.7559 inch
Threading length – millimeter (THL): 22 mm
Threading length – inch (THL): 0.8661 inch
Connection diameter – inch (DCON MS): 0.2756 inch
Connection diameter – millimeter (DCON MS): 7 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.2165 inch
Clamping width – millimeter (WSC): 5.5 mm
Premachined hole diameter – inch (PHD): 0.315 inch
Premachined hole diameter – millimeter (PHD): 8 mm
Gross weight – grams: 74.6
ISO: E1083/8NO8
Ordering code ANSI: E1083/8NO8

Brand

DORMER
