DORMER E1087/8NO8 HSS / HSCo DIN Taps

Description

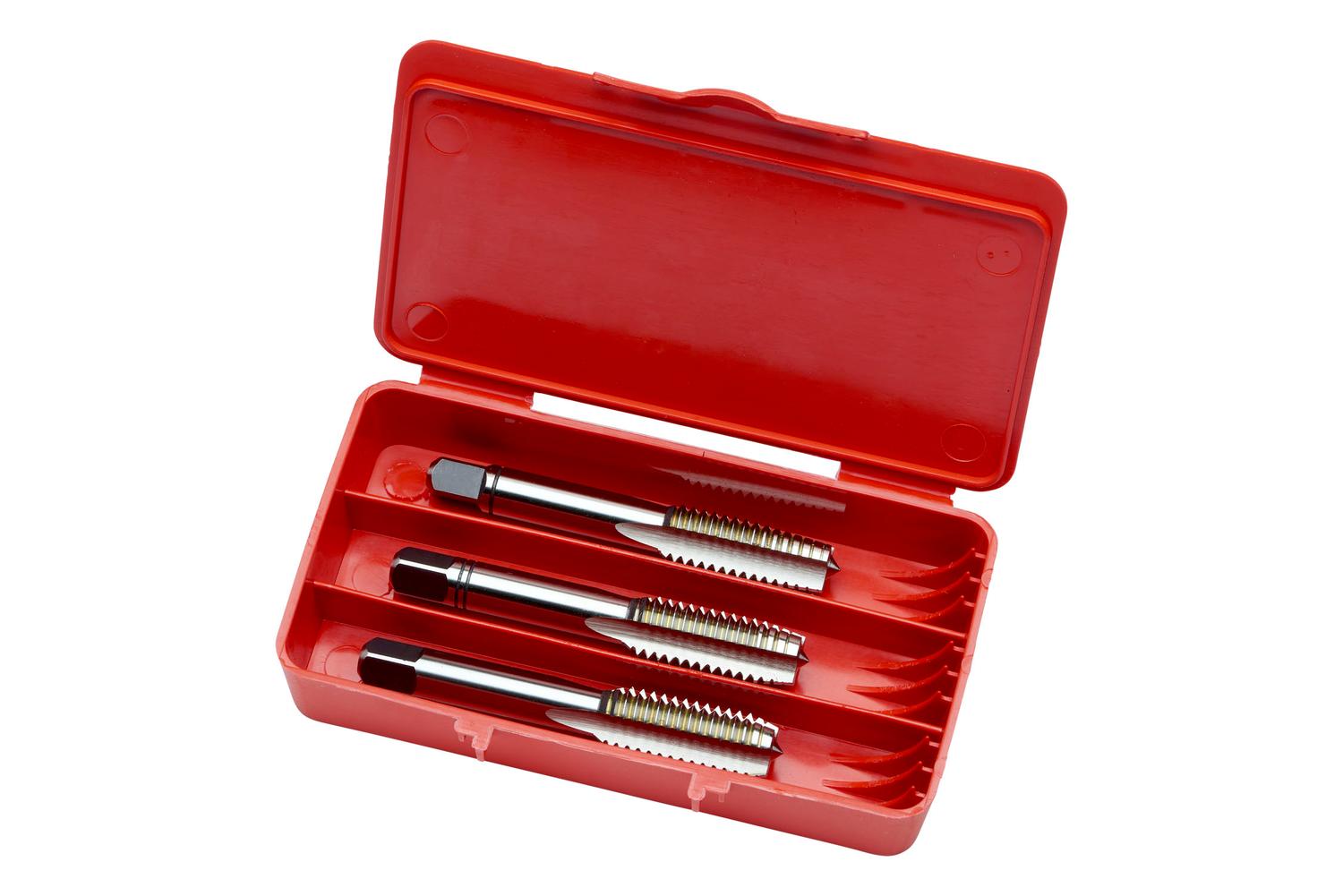

Set of straight flute serial taps NO8 for Unified National Coarse thread UNC 7/8″ with 9 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 18.0mm shank and 14.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight	0.7095 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E1087/8NO8 Product number (SAP): 86015541 EAN number: 7320760082751 Thread diameter size (TDZ): 7/8 Thread diameter – millimeter (TD): 22.23 mm Threads per inch (TPI): 9 Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.3307 inch Threading length – millimeter (THL): 38 mm Threading length – inch (THL): 1.4961 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Premachined hole diameter – inch (PHD): 0.7677 inch Premachined hole diameter – millimeter (PHD): 19.5 mm Gross weight – grams: 652.6 ISO: E1087/8NO8 Ordering code ANSI: E1087/8NO8

Need Technical Advice?

Description

Additional information

Brand

DORMER
