DORMER E1111/2NO9 HSS / HSCo DIN Taps

Description

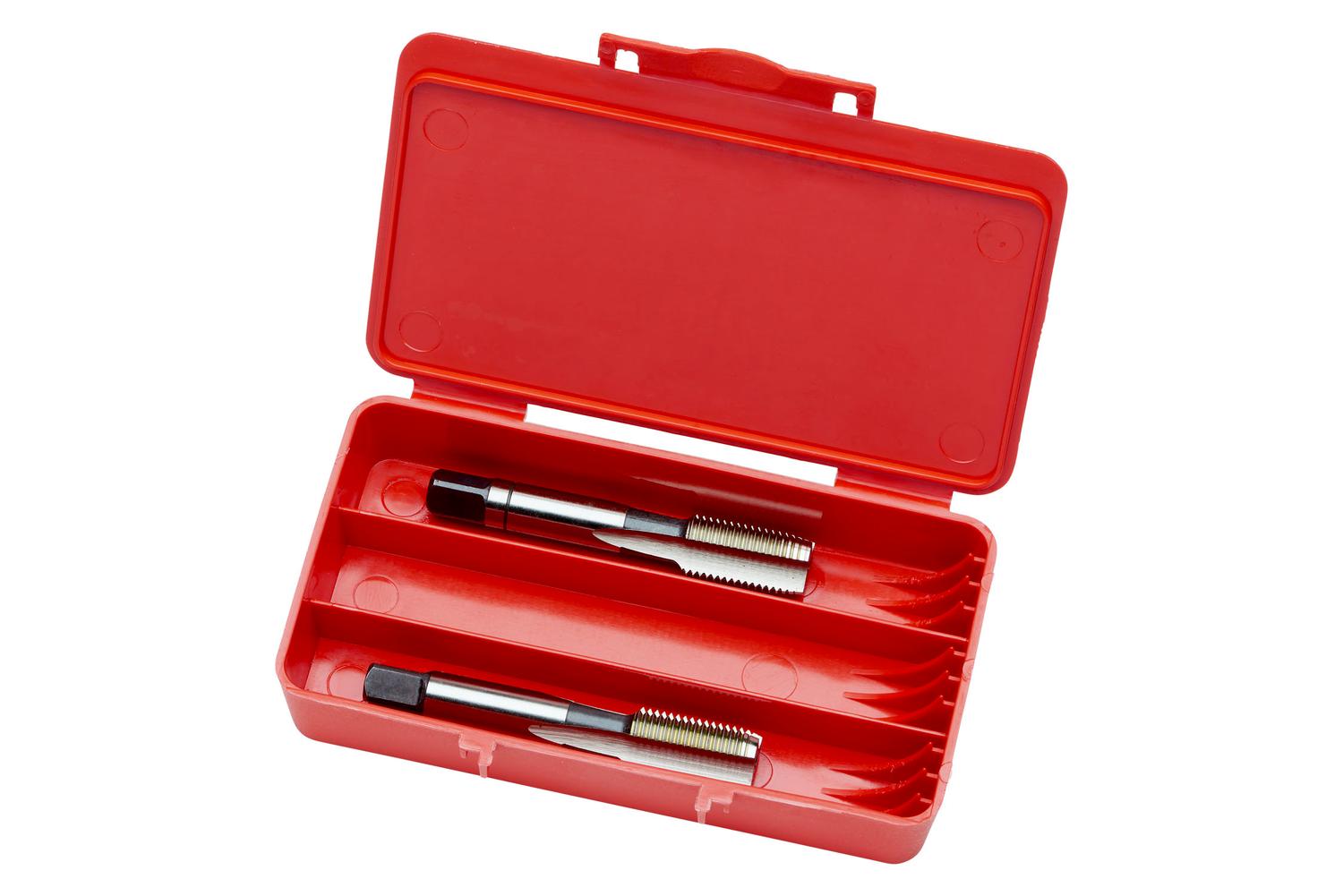

Set of straight flute serial taps NO9 for Unified National Fine thread UNF 1/2″ with 20 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 9.0mm shank and 7.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and non-ferrous metals

Additional information

Weight	0.1683 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E1111/2NO9 Product number (SAP): 86015547 EAN number: 7320760082997 Thread diameter size (TDZ): 1/2 Thread diameter – millimeter (TD): 12.7 mm Threads per inch (TPI): 20 Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.7559 inch Threading length – millimeter (THL): 22 mm Threading length – inch (THL): 0.8661 inch Connection diameter – inch (DCON MS): 0.3543 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.2756 inch Clamping width – millimeter (WSC): 7 mm Premachined hole diameter – inch (PHD): 0.4528 inch Premachined hole diameter – millimeter (PHD): 11.5 mm Gross weight – grams: 100 ISO: E1111/2NO9 Ordering code ANSI: E1111/2NO9

Need Technical Advice?

Description

Additional information

Brand

DORMER
