DORMER E1111NO9 HSS / HSCo DIN Taps

Description

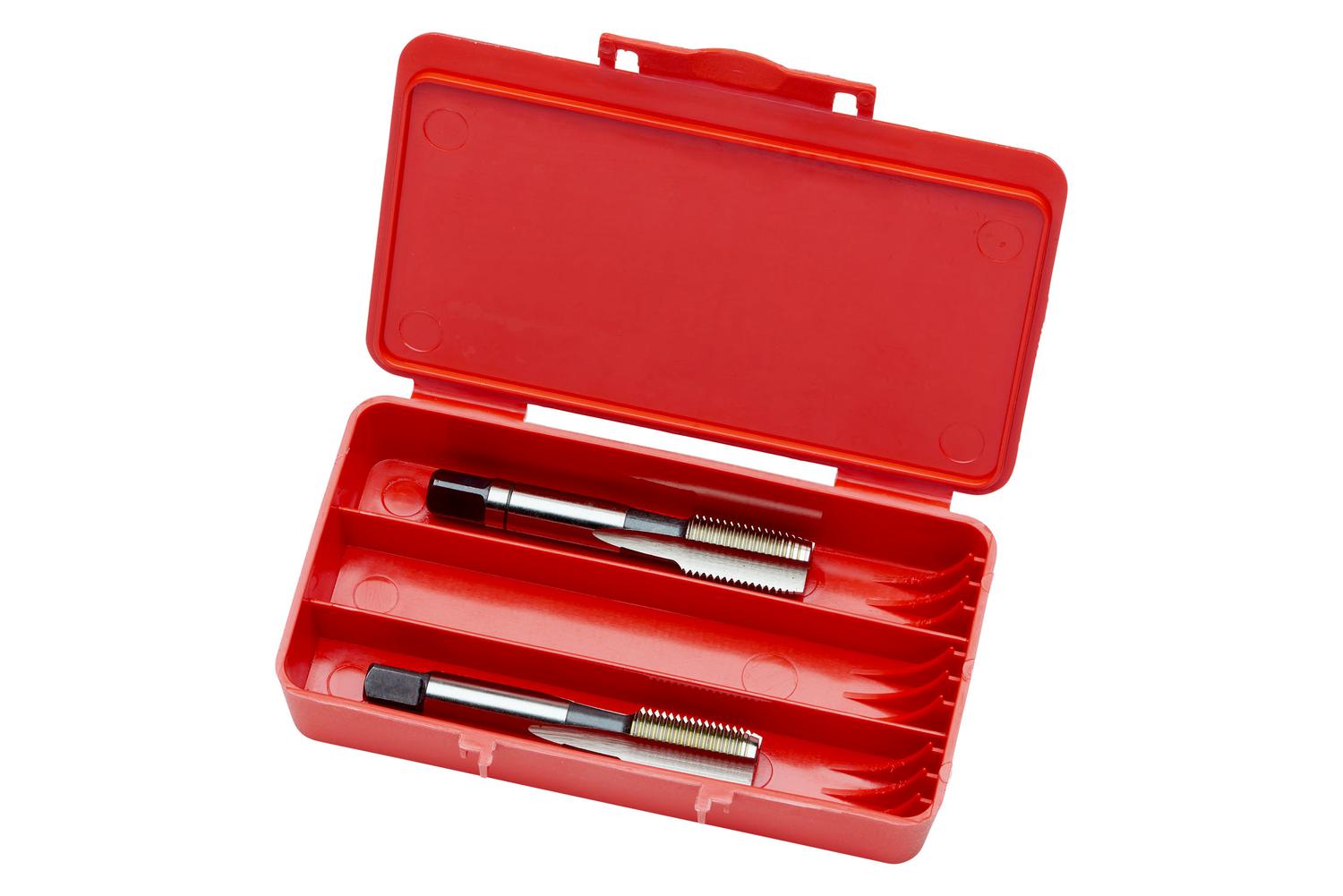

Set of straight flute serial taps NO9 for Unified National Fine thread UNF 1″ with 12 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 20.0mm shank and 16.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and non-ferrous metals

Additional information

Weight	0.5918 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E1111NO9 Product number (SAP): 86015553 EAN number: 7320760082904 Thread diameter size (TDZ): 1" Thread diameter – millimeter (TD): 25.4 mm Threads per inch (TPI): 12 Overall length – millimeter (OAL): 90 mm Overall length – inch (OAL): 3.5433 inch Threading length – millimeter (THL): 22 mm Threading length – inch (THL): 0.8661 inch Connection diameter – inch (DCON MS): 0.7874 inch Connection diameter – millimeter (DCON MS): 20 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.6299 inch Clamping width – millimeter (WSC): 16 mm Premachined hole diameter – inch (PHD): 0.9154 inch Premachined hole diameter – millimeter (PHD): 23.25 mm Gross weight – grams: 480 ISO: E1111NO9 Ordering code ANSI: E1111NO9

Need Technical Advice?

Description

Additional information

Brand

DORMER
