DORMER E1116-40NO9 HSS / HSCo DIN Taps

Description

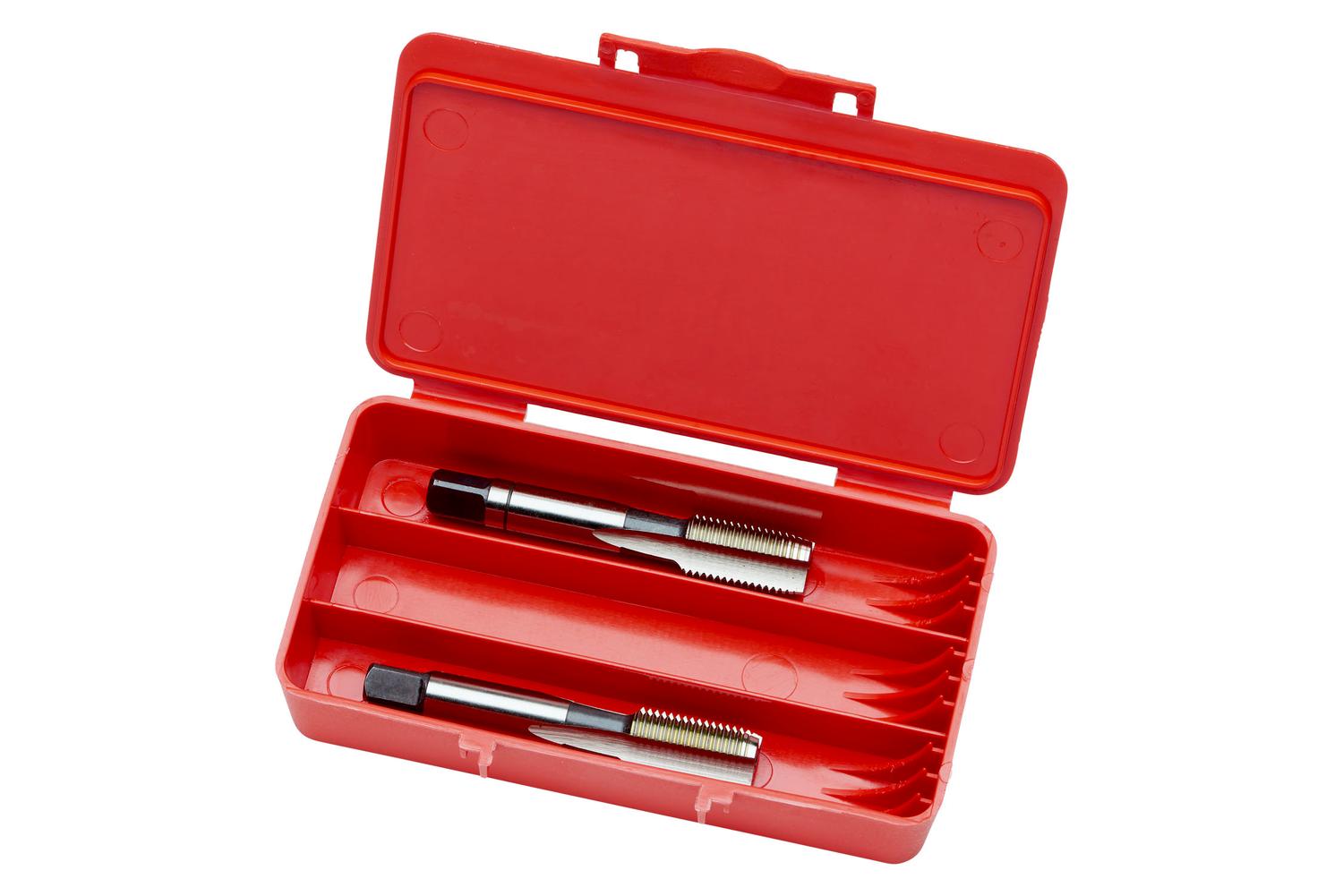

Set of straight flute serial taps NO9 for Unified National Fine thread UNF 6 with 40 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 4.0mm shank and 3.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and non-ferrous metals

Additional information

Weight	0.0957 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E1116-40NO9 Product number (SAP): 86015565 EAN number: 7320760083321 Thread diameter size (TDZ): 6 Thread diameter – millimeter (TD): 3.51 mm Threads per inch (TPI): 40 Overall length – millimeter (OAL): 45 mm Overall length – inch (OAL): 1.7717 inch Threading length – millimeter (THL): 10 mm Threading length – inch (THL): 0.3937 inch Connection diameter – inch (DCON MS): 0.1575 inch Connection diameter – millimeter (DCON MS): 4 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.1181 inch Clamping width – millimeter (WSC): 3 mm Premachined hole diameter – inch (PHD): 0.1161 inch Premachined hole diameter – millimeter (PHD): 2.95 mm Gross weight – grams: 14 ISO: E1116-40NO9 Ordering code ANSI: E1116-40NO9

Need Technical Advice?

Description

Additional information

Brand

DORMER
