DORMER E1117/8NO9 HSS / HSCo DIN Taps

Description

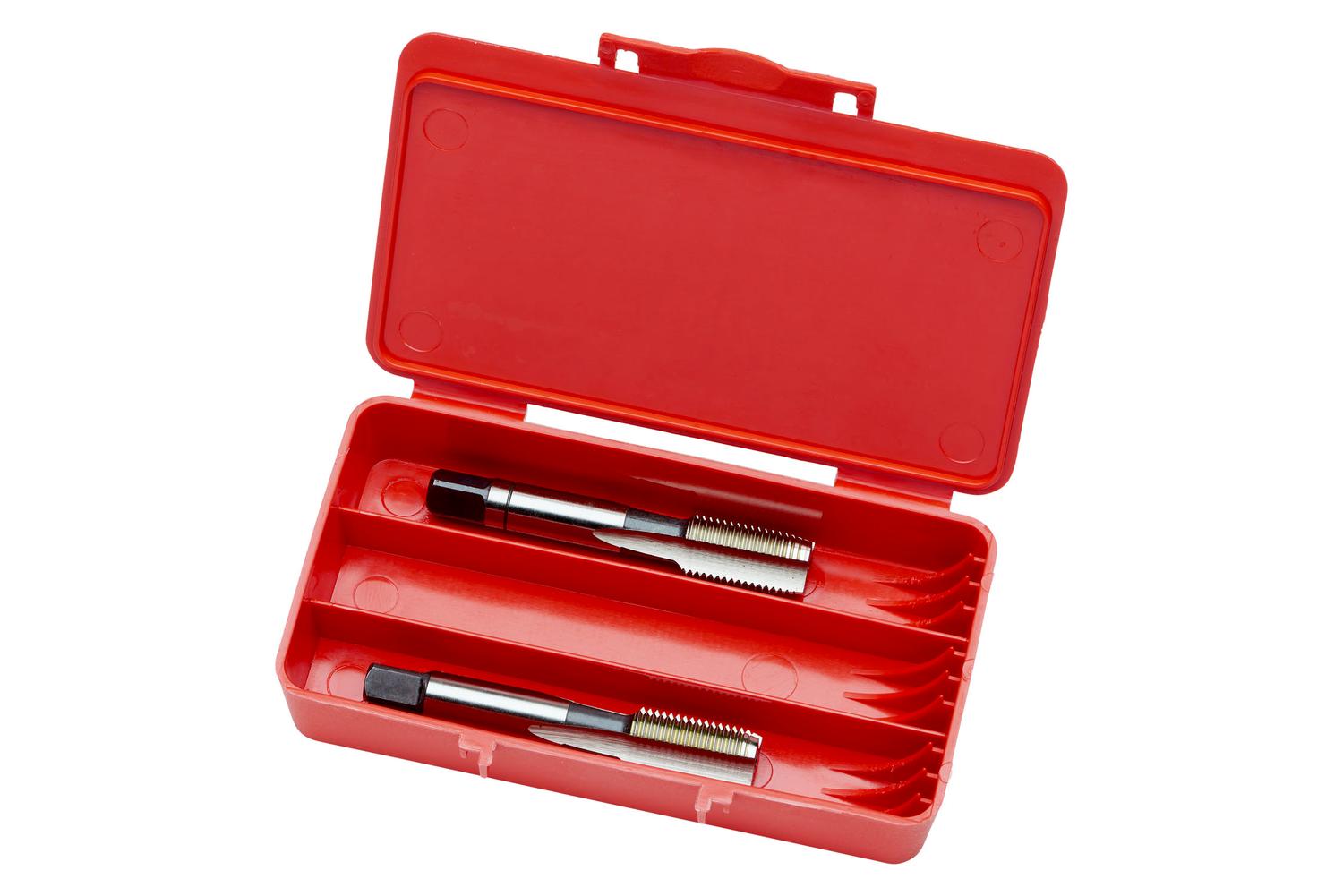

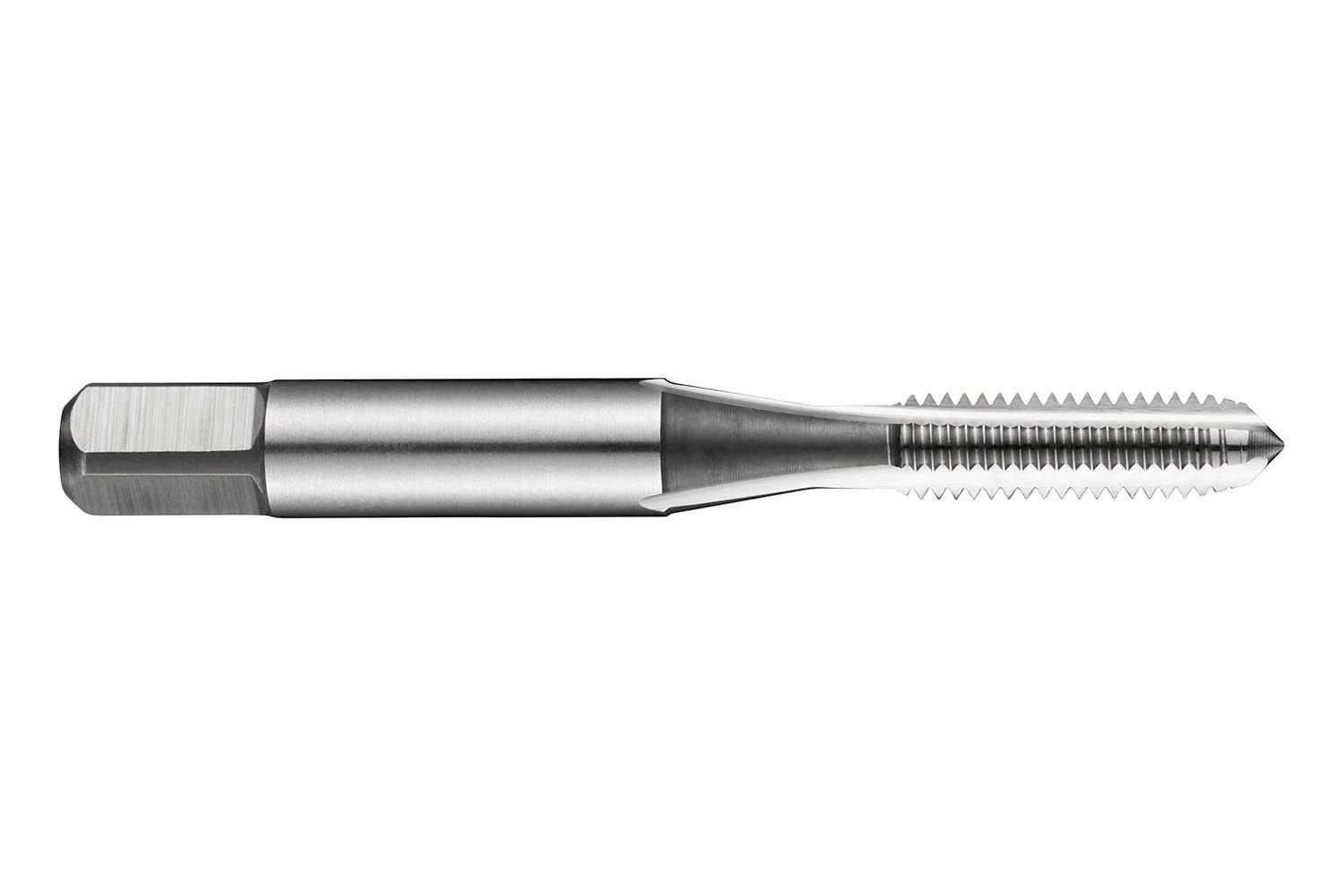

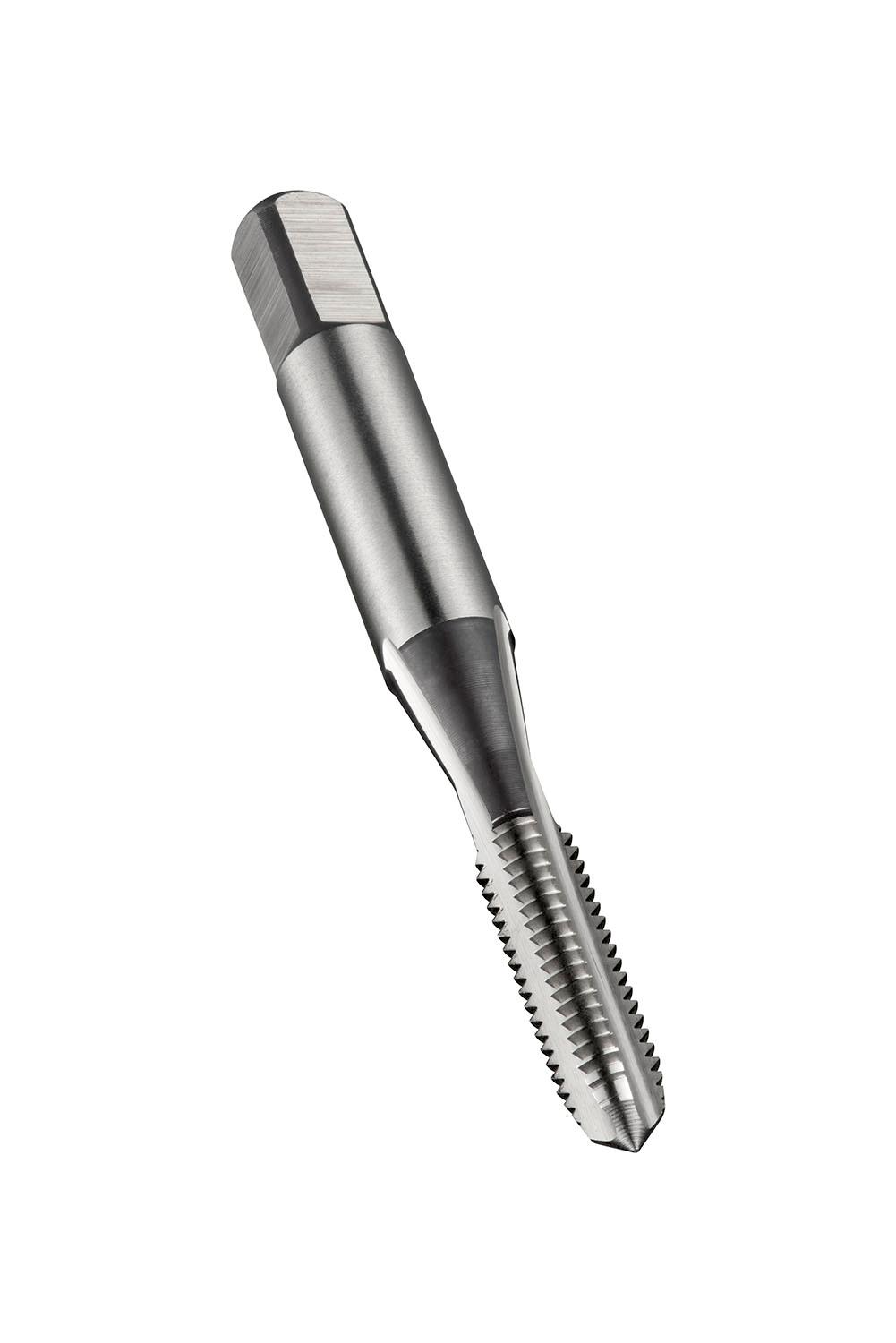

Set of straight flute serial taps NO9 for Unified National Fine thread UNF 7/8″ with 14 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 18.0mm shank and 14.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and non-ferrous metals

Additional information

Weight	0.5016 kg
Dimensions
barcode

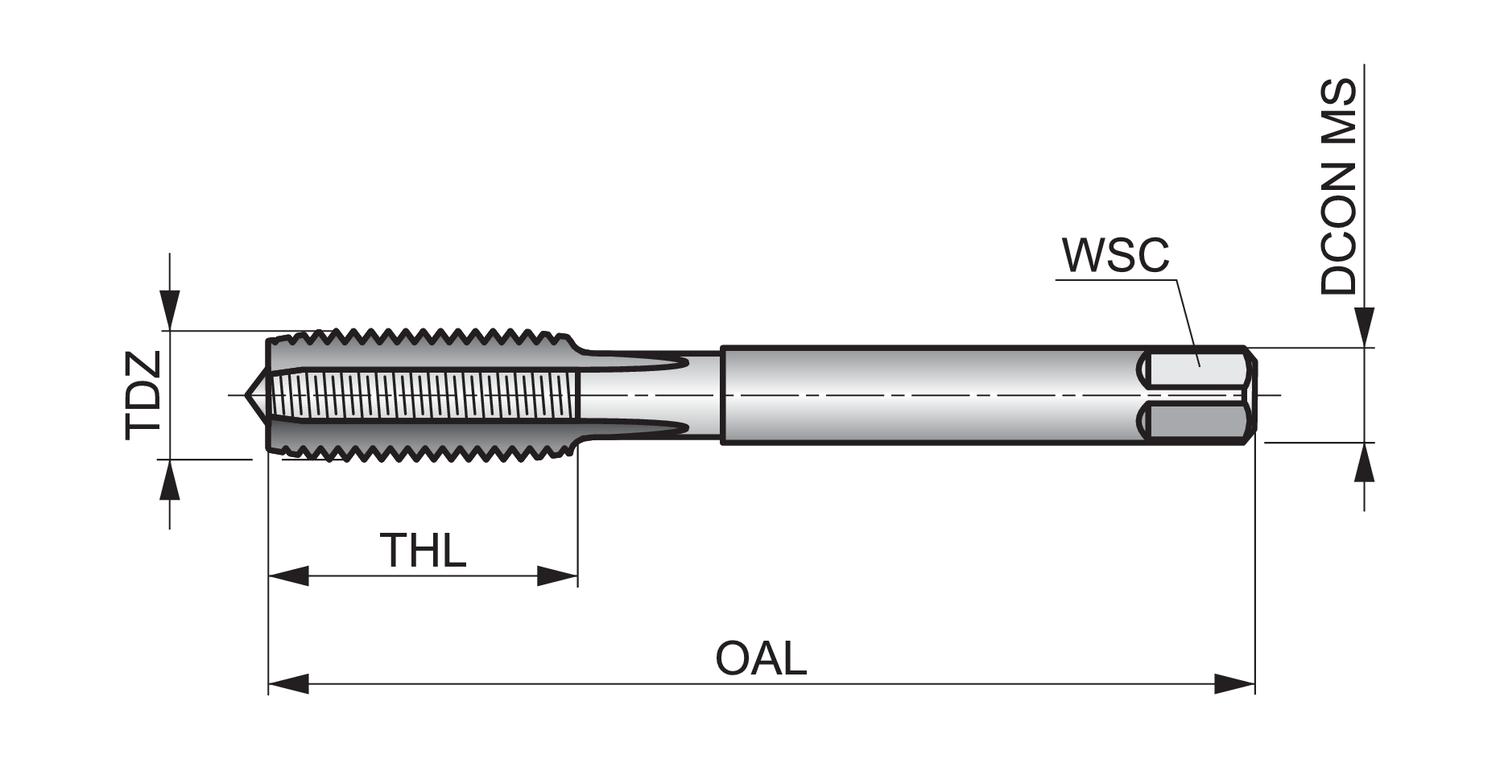

Additional Information	Description: Value Product name: E1117/8NO9 Product number (SAP): 86015569 EAN number: 7320760083383 Thread diameter size (TDZ): 7/8 Thread diameter – millimeter (TD): 22.23 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 90 mm Overall length – inch (OAL): 3.5433 inch Threading length – millimeter (THL): 22 mm Threading length – inch (THL): 0.8661 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Premachined hole diameter – inch (PHD): 0.8031 inch Premachined hole diameter – millimeter (PHD): 20.4 mm Gross weight – grams: 398.1 ISO: E1117/8NO9 Ordering code ANSI: E1117/8NO9

Need Technical Advice?

Description

Additional information

Brand

DORMER
