DORMER E1118-36NO9 HSS / HSCo DIN Taps

Description

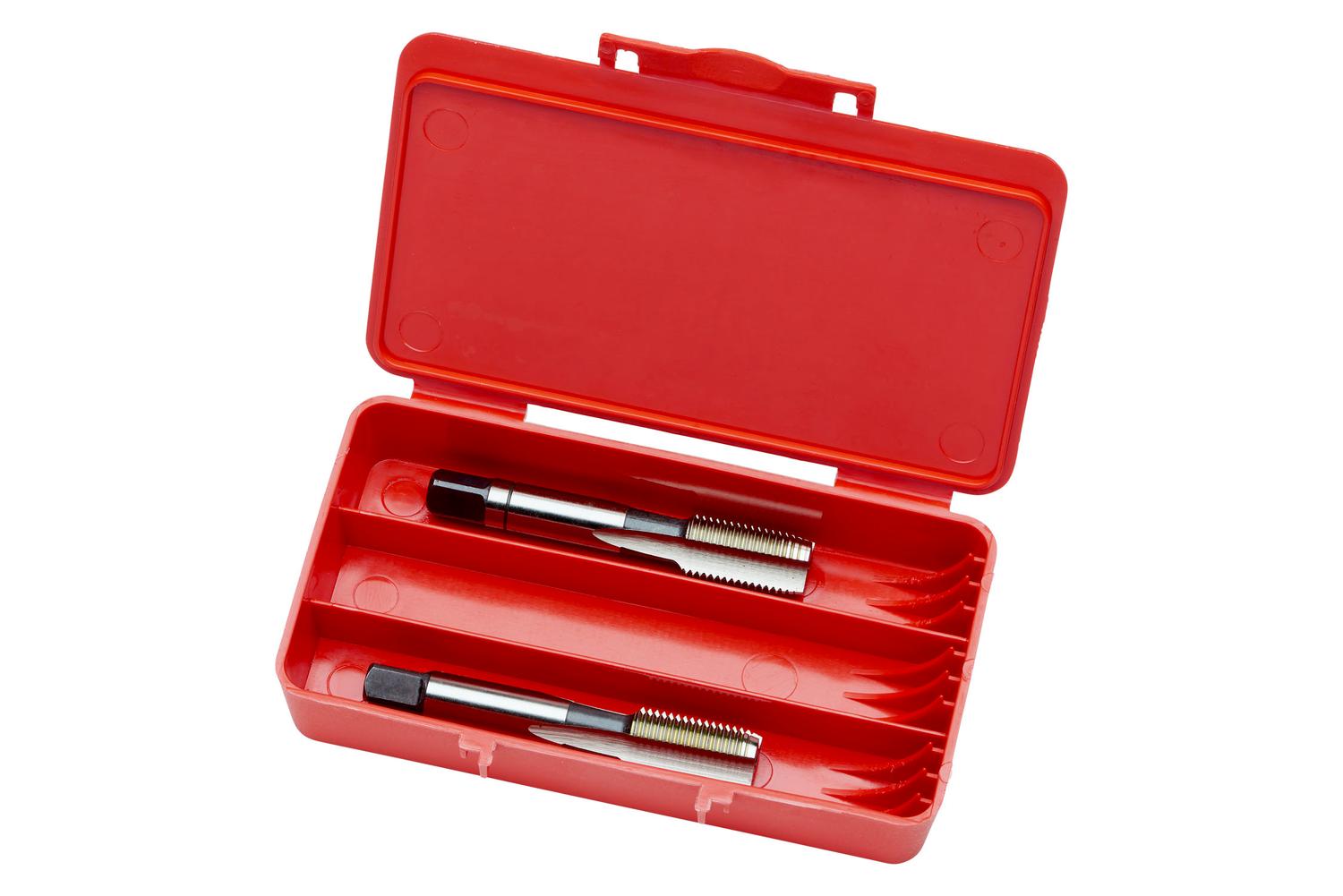

Set of straight flute serial taps NO9 for Unified National Fine thread UNF 8 with 36 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 6.0mm shank and 4.9mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and non-ferrous metals

Additional information

Weight	0.0858 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E1118-36NO9 Product number (SAP): 86015571 EAN number: 7320760083413 Thread diameter size (TDZ): 8 Thread diameter – millimeter (TD): 4.17 mm Threads per inch (TPI): 36 Overall length – millimeter (OAL): 50 mm Overall length – inch (OAL): 1.9685 inch Threading length – millimeter (THL): 14 mm Threading length – inch (THL): 0.5512 inch Connection diameter – inch (DCON MS): 0.2362 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.1929 inch Clamping width – millimeter (WSC): 4.9 mm Premachined hole diameter – inch (PHD): 0.1378 inch Premachined hole diameter – millimeter (PHD): 3.5 mm Gross weight – grams: 21.2 ISO: E1118-36NO9 Ordering code ANSI: E1118-36NO9
