DORMER E1151/2NO8 HSS / HSCo DIN Taps

Description

Set of straight flute serial taps NO8 for British Standard Whitworth thread BSW 1/2″ with 12 TPI and Medium class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 351 standard with 9.0mm shank and 7.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Additional information

Weight	0.2607 kg
Dimensions
barcode

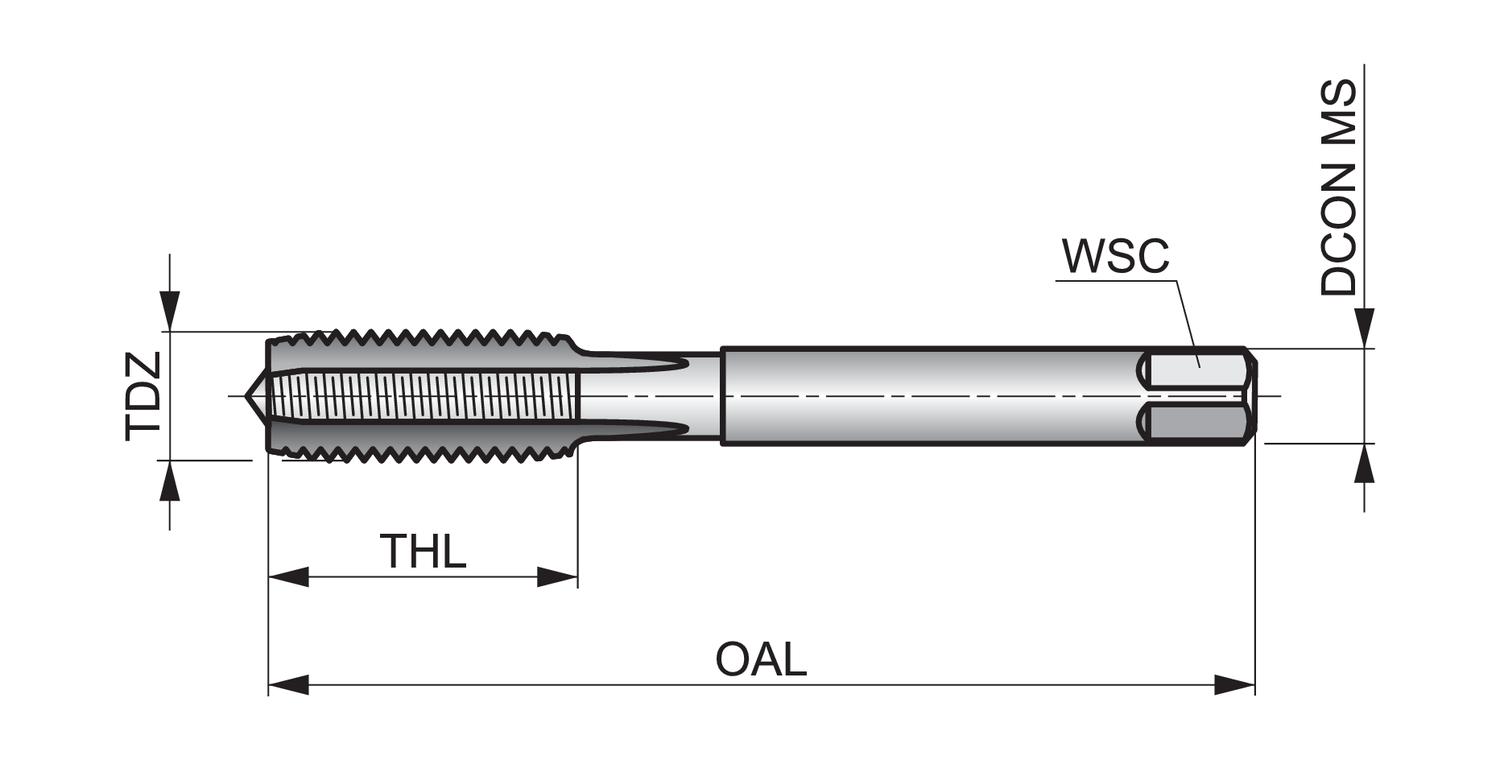

Additional Information	Description: Value Product name: E1151/2NO8 Product number (SAP): 86015575 EAN number: 7320760083796 Thread diameter size (TDZ): 1/2 Thread diameter – millimeter (TD): 12.7 mm Threads per inch (TPI): 12 Overall length – millimeter (OAL): 80 mm Overall length – inch (OAL): 3.1496 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.1811 inch Connection diameter – inch (DCON MS): 0.3543 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.2756 inch Clamping width – millimeter (WSC): 7 mm Premachined hole diameter – inch (PHD): 0.4134 inch Premachined hole diameter – millimeter (PHD): 10.5 mm Gross weight – grams: 147.4 ISO: E1151/2NO8 Ordering code ANSI: E1151/2NO8
