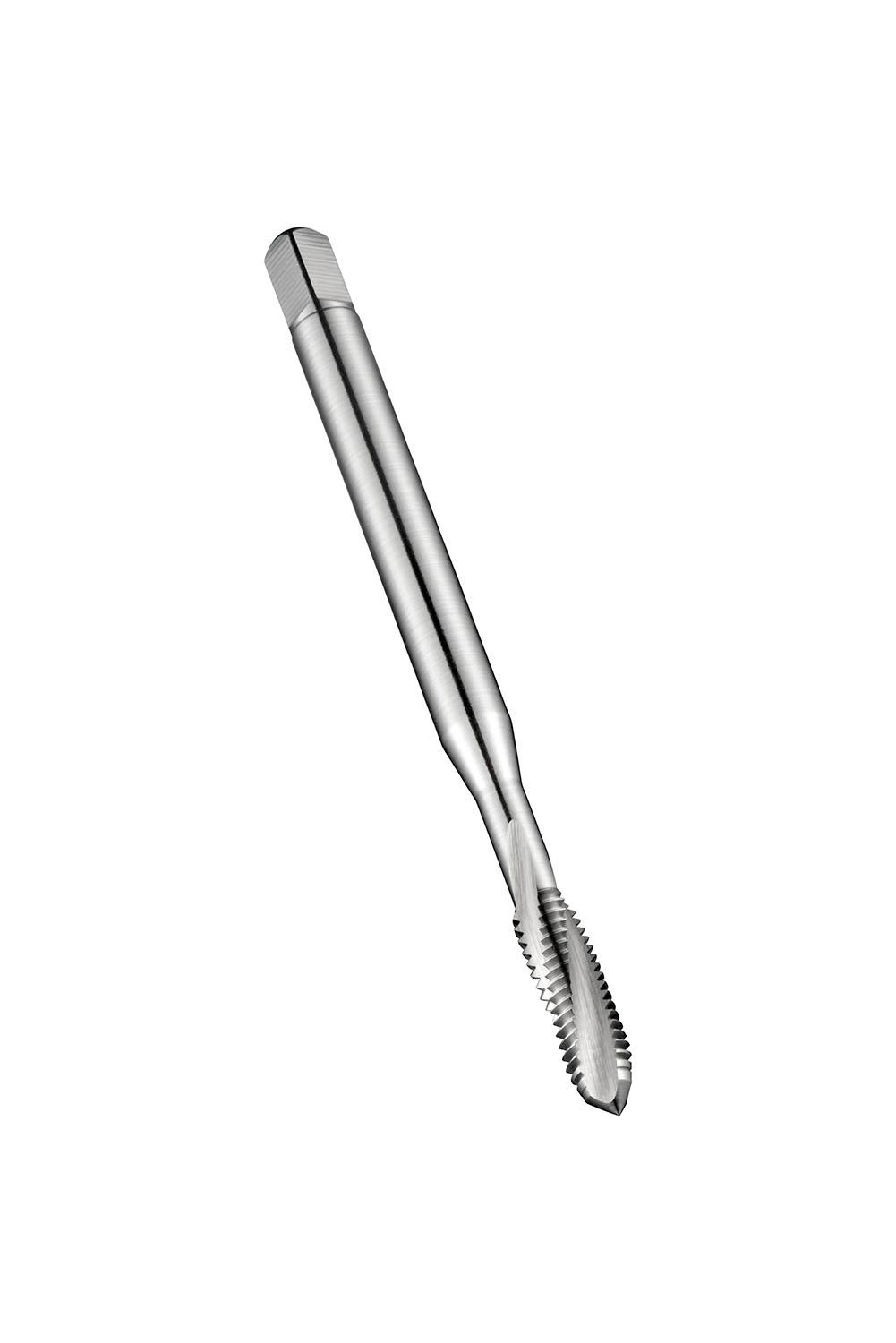

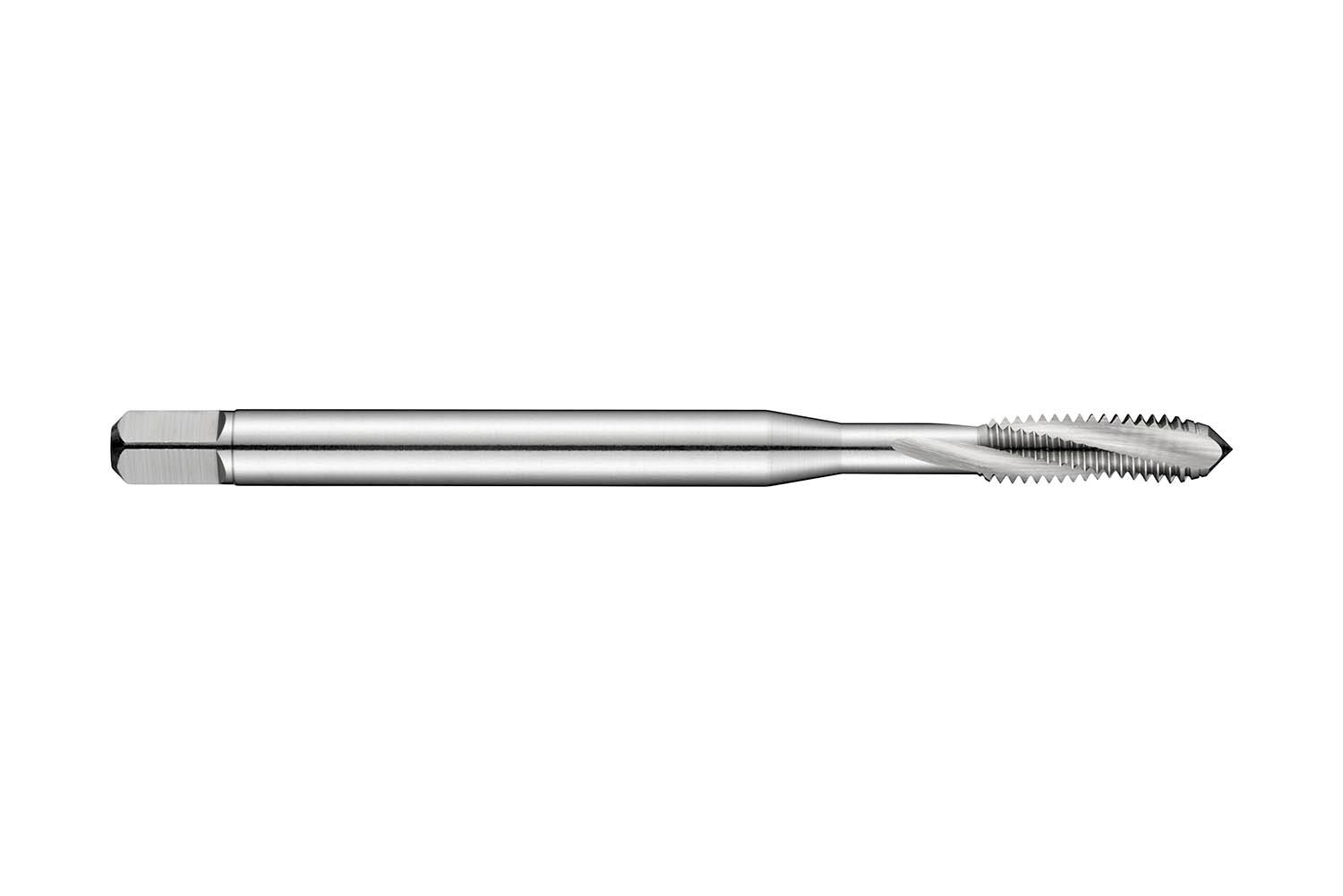

DORMER E207M2 HSS / HSCo DIN Taps

Description: Value
Product name: E207M2
Product number (SAP): 86015659
EAN number: 7320760085363

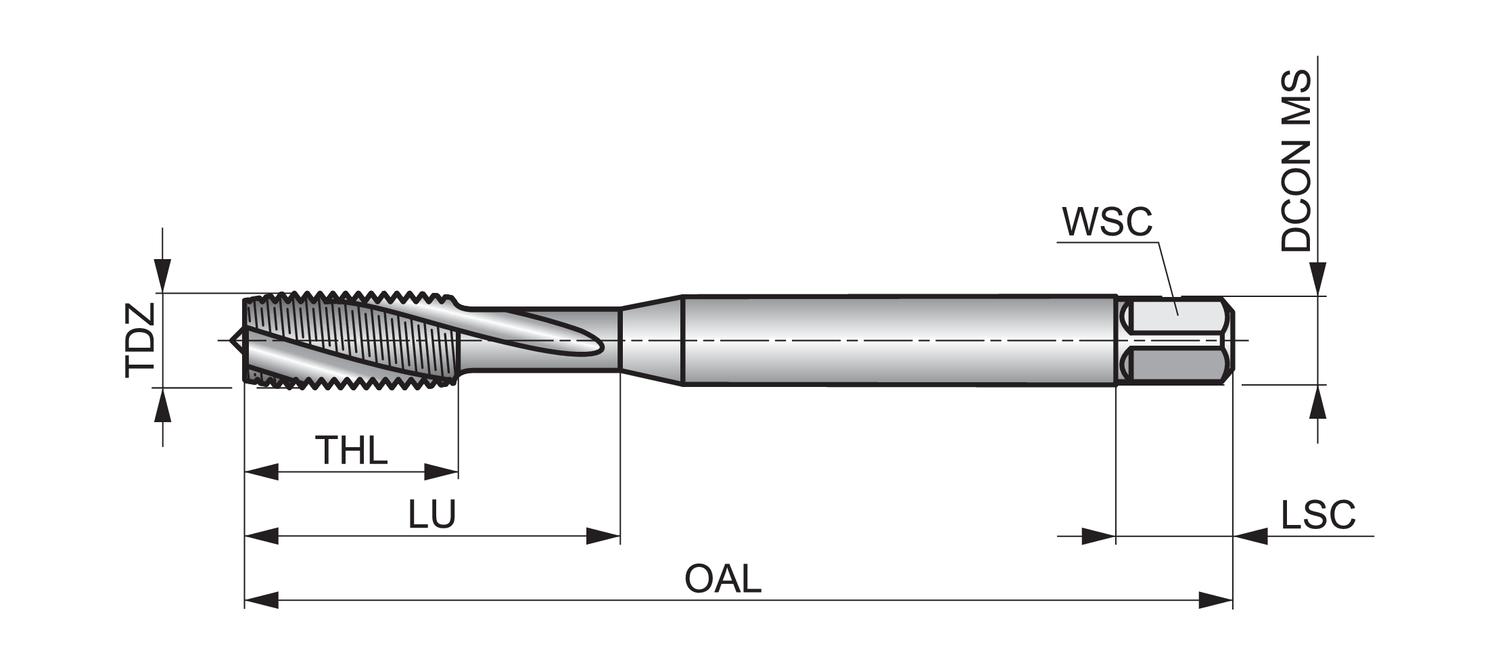

Thread diameter size (TDZ): 2
Thread pitch – millimeter (TP): 0.4 mm
Overall length – millimeter (OAL): 45 mm
Overall length – inch (OAL): 1.7717 inch
Threading length – millimeter (THL): 4 mm
Threading length – inch (THL): 0.1575 inch
Connection diameter – inch (DCON MS): 0.1102 inch
Connection diameter – millimeter (DCON MS): 2.8 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.3543 inch
Usable Length – millimeter (LU): 9 mm
Clamping width – inch (WSC): 0.0827 inch
Clamping width – millimeter (WSC): 2.1 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.063 inch
Premachined hole diameter – millimeter (PHD): 1.6 mm
Gross weight – grams: 4.2
ISO: E207M2
Ordering code ANSI: E207M2
