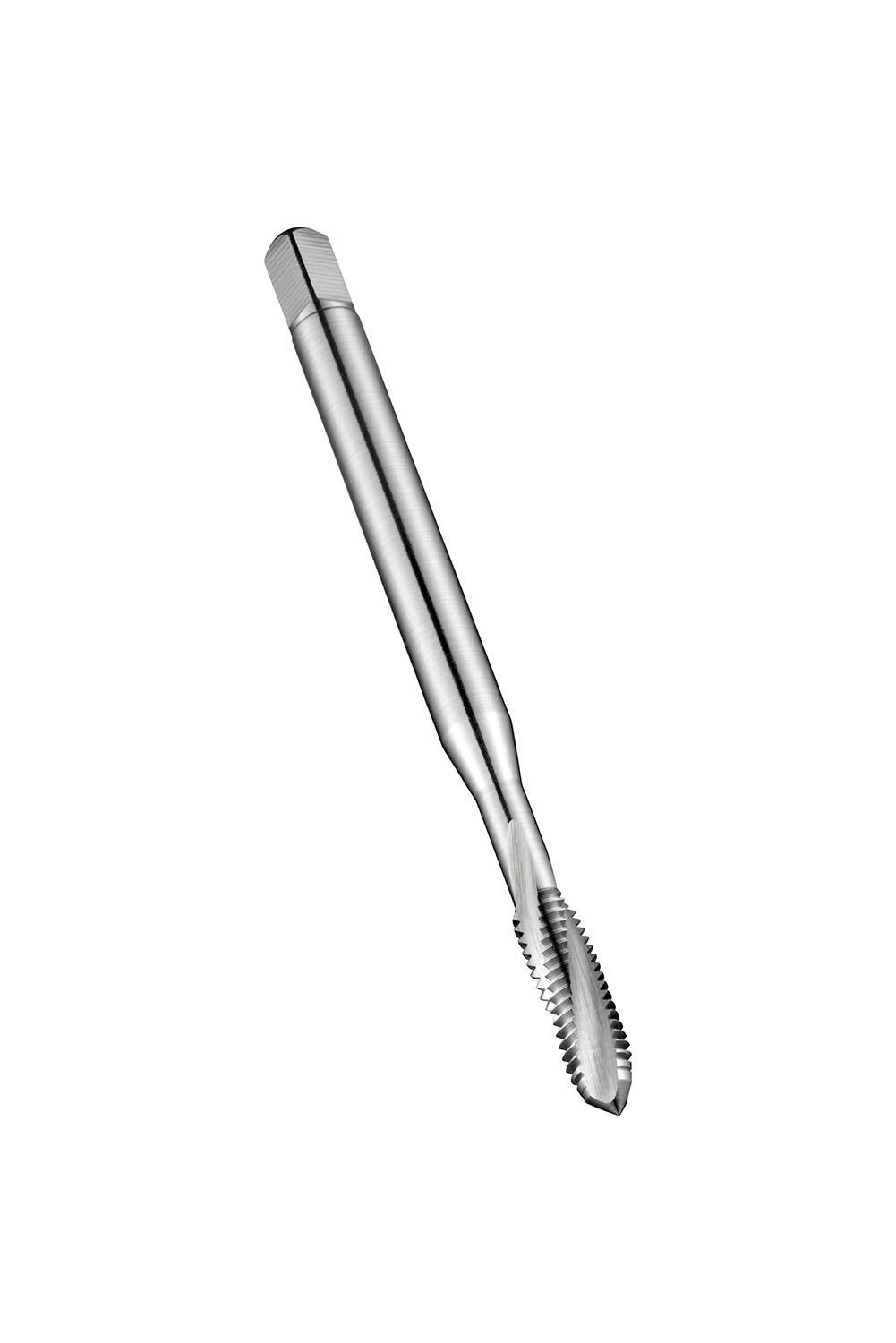

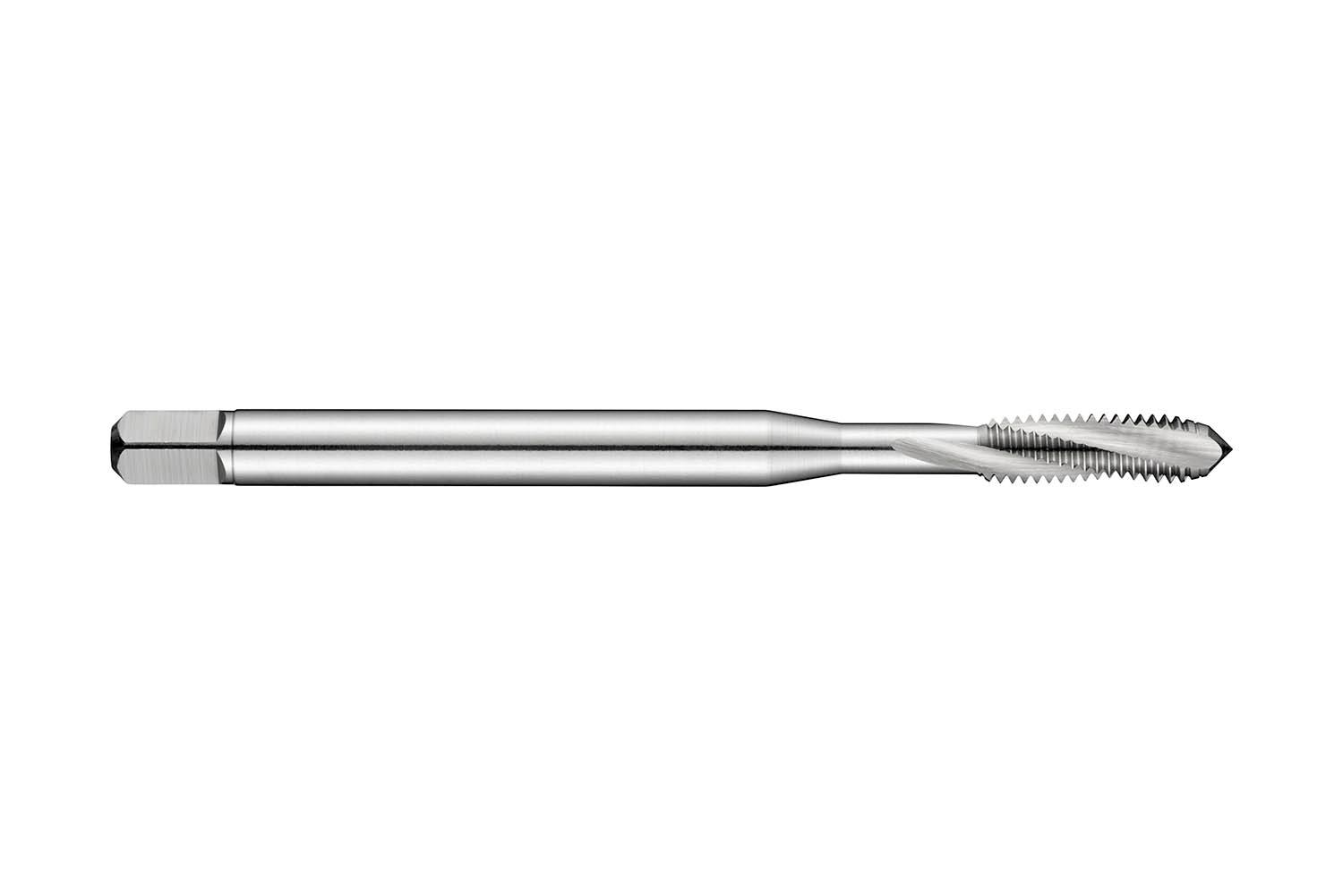

DORMER E207M5 HSS / HSCo DIN Taps

Description: Value
Product name: E207M5
Product number (SAP): 86015664
EAN number: 7320760085417

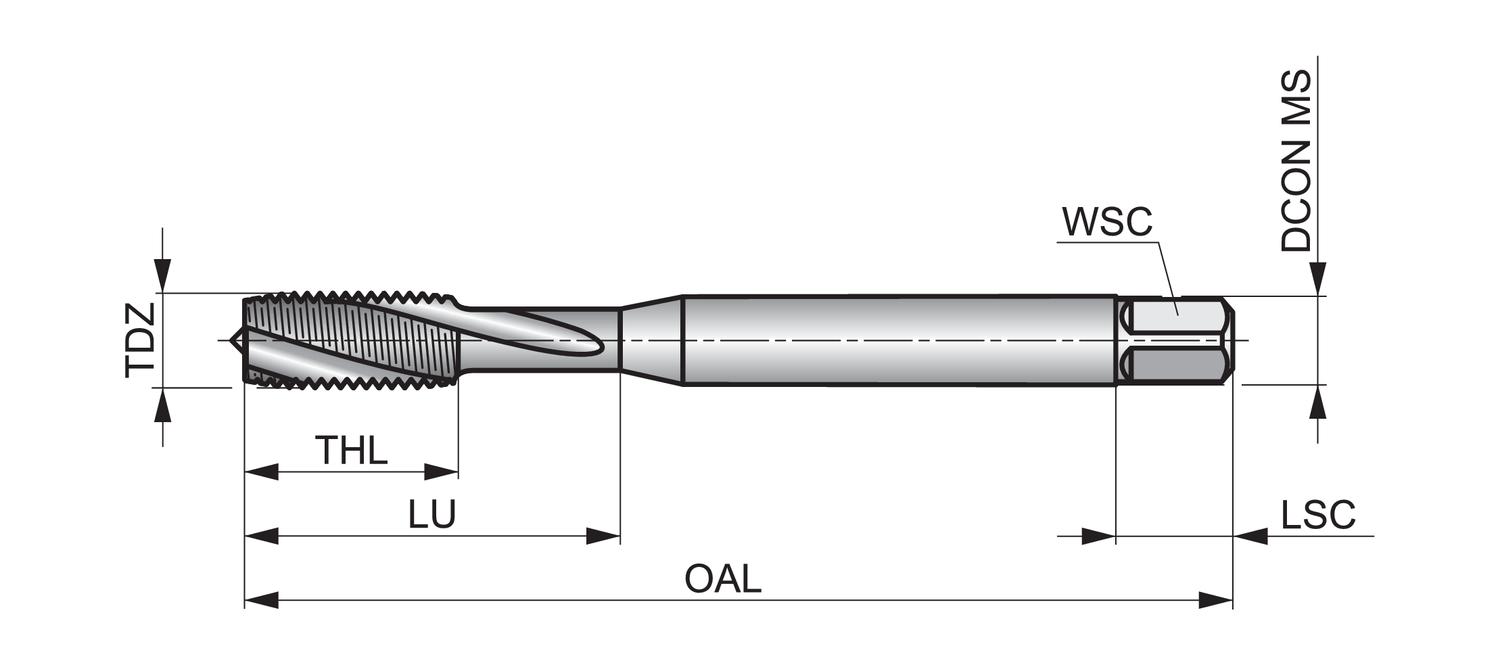

Thread diameter size (TDZ): 5
Thread pitch – millimeter (TP): 0.8 mm
Overall length – millimeter (OAL): 70 mm
Overall length – inch (OAL): 2.7559 inch
Threading length – millimeter (THL): 13 mm
Threading length – inch (THL): 0.5118 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.9843 inch
Usable Length – millimeter (LU): 25 mm
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.1654 inch
Premachined hole diameter – millimeter (PHD): 4.2 mm
Gross weight – grams: 14
ISO: E207M5
Ordering code ANSI: E207M5
