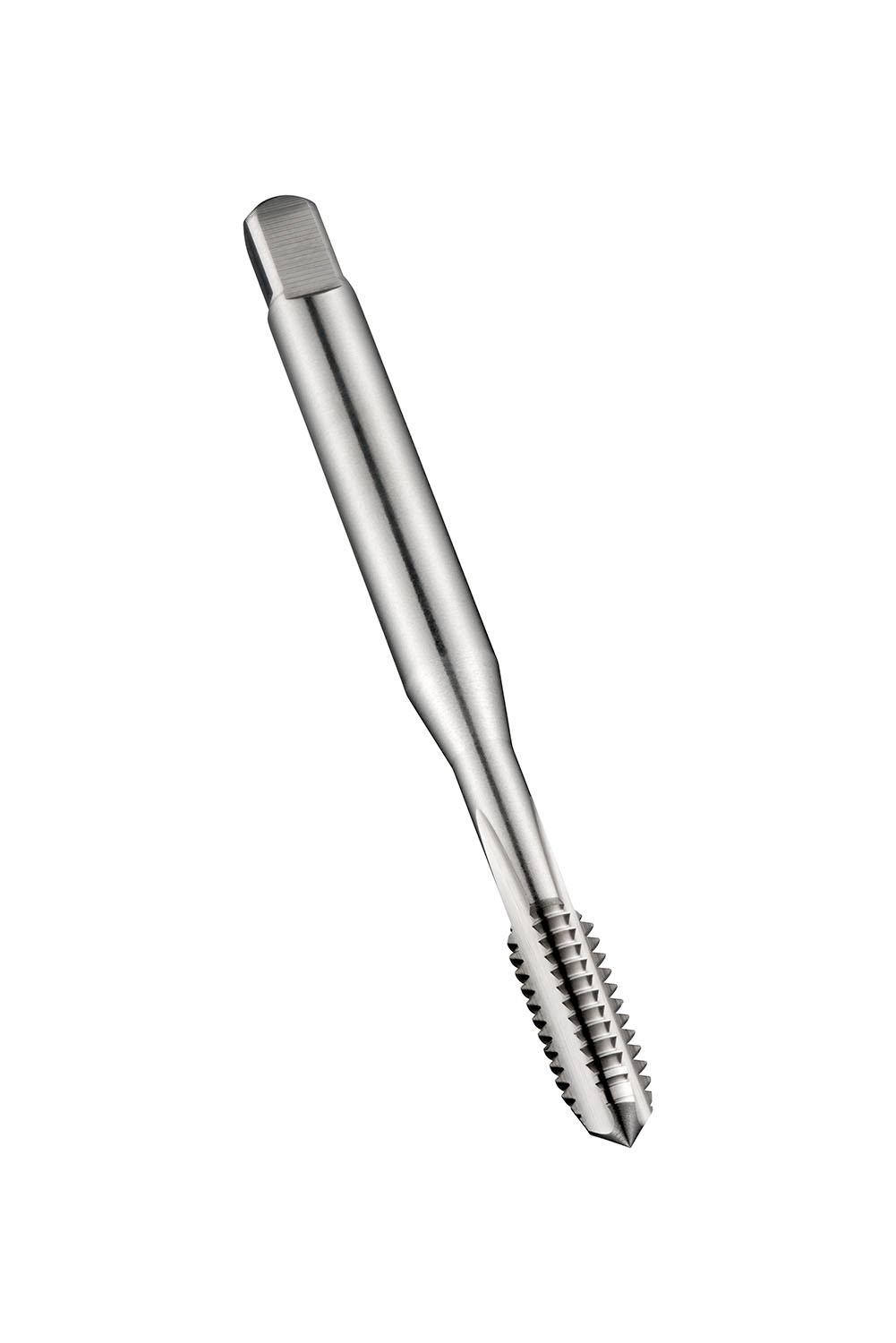

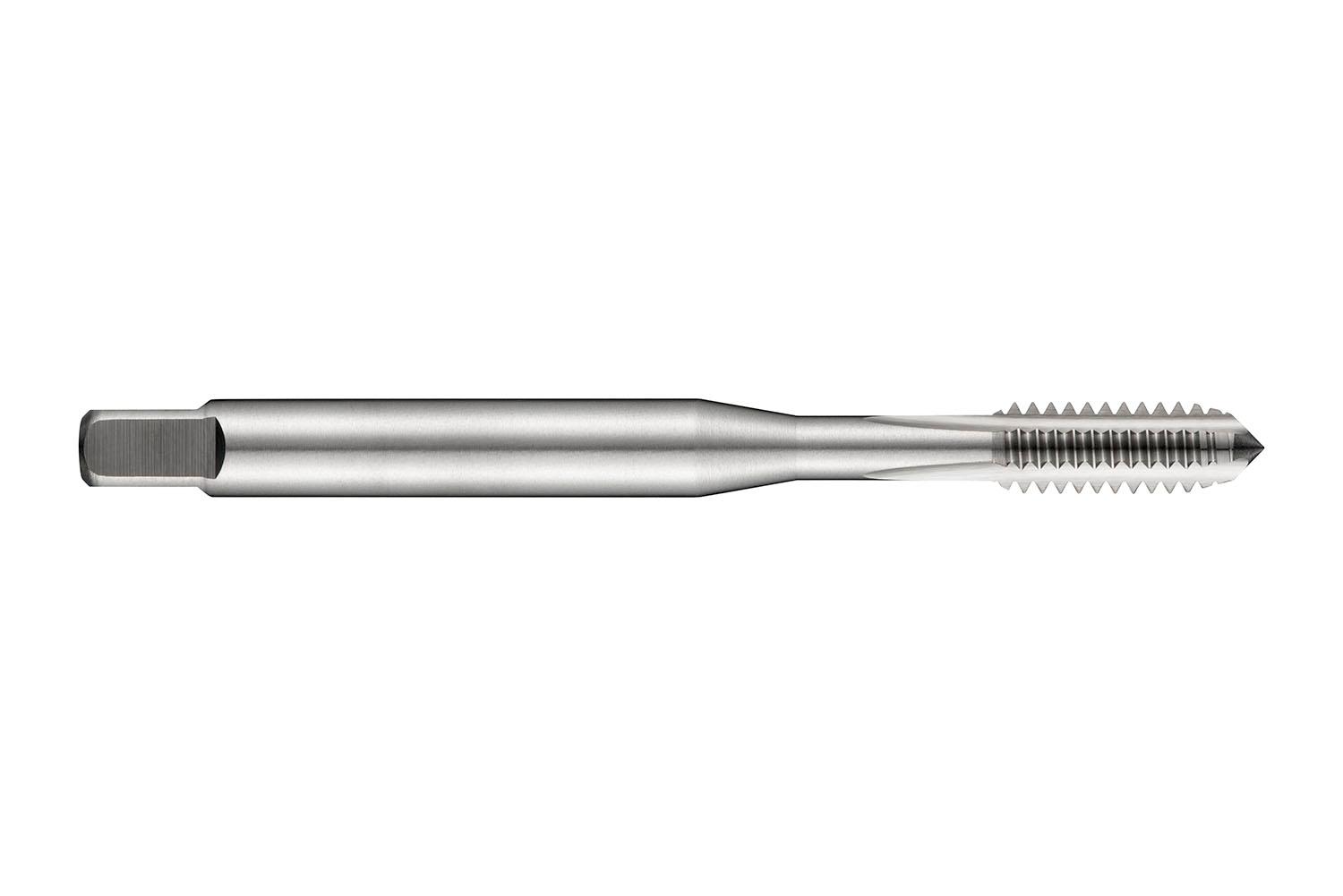

DORMER E2255-40 HSS / HSCo DIN Taps

Description: Value
Product name: E2255-40
Product number (SAP): 86015686
EAN number: 7320760086186

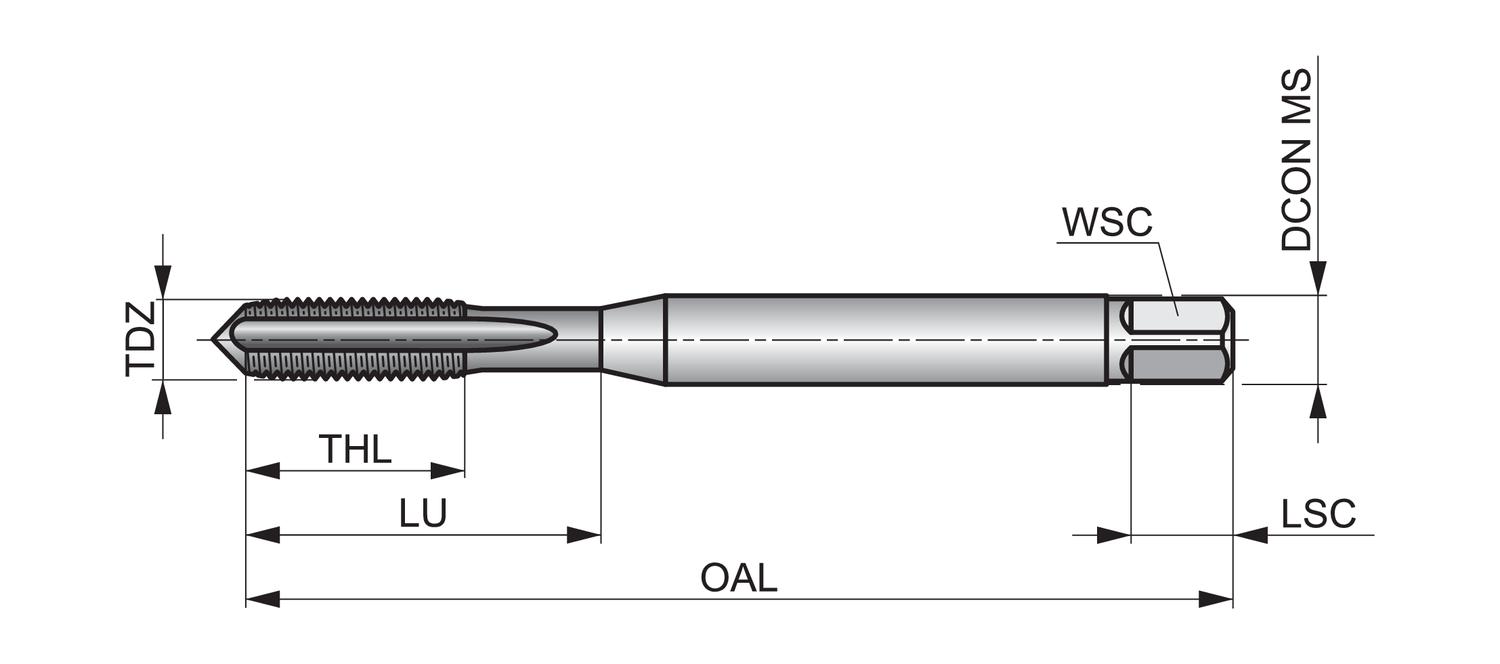

Thread diameter size (TDZ): 5
Thread diameter – millimeter (TD): 3.175 mm
Threads per inch (TPI): 40
Overall length – millimeter (OAL): 56 mm
Overall length – inch (OAL): 2.2047 inch
Threading length – millimeter (THL): 10 mm
Threading length – inch (THL): 0.3937 inch
Connection diameter – inch (DCON MS): 0.1378 inch
Connection diameter – millimeter (DCON MS): 3.5 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.7087 inch
Usable Length – millimeter (LU): 18 mm
Clamping width – inch (WSC): 0.1063 inch
Clamping width – millimeter (WSC): 2.7 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.1043 inch
Premachined hole diameter – millimeter (PHD): 2.65 mm
Gross weight – grams: 6.02
ISO: E2255-40
Ordering code ANSI: E2255-40
