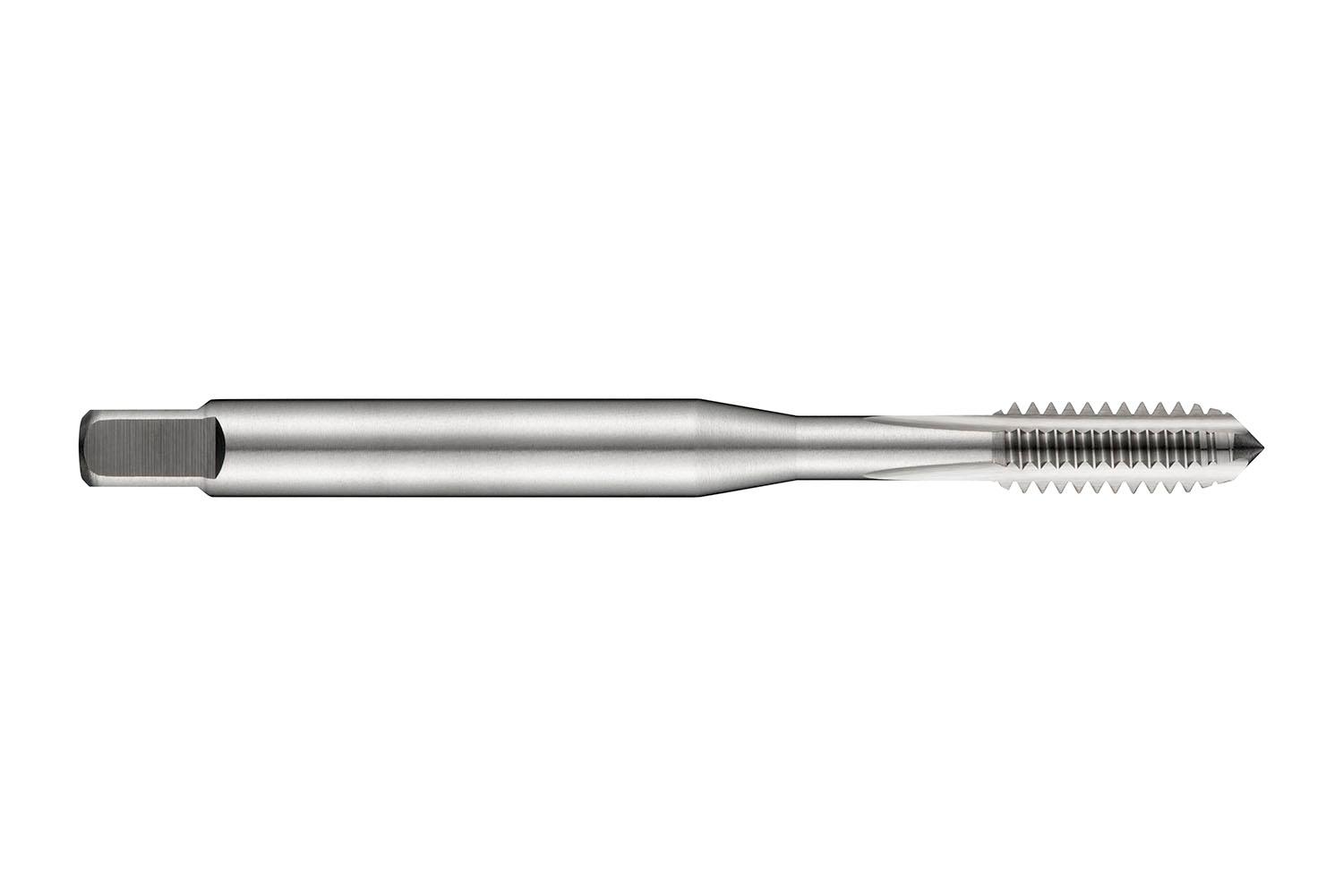

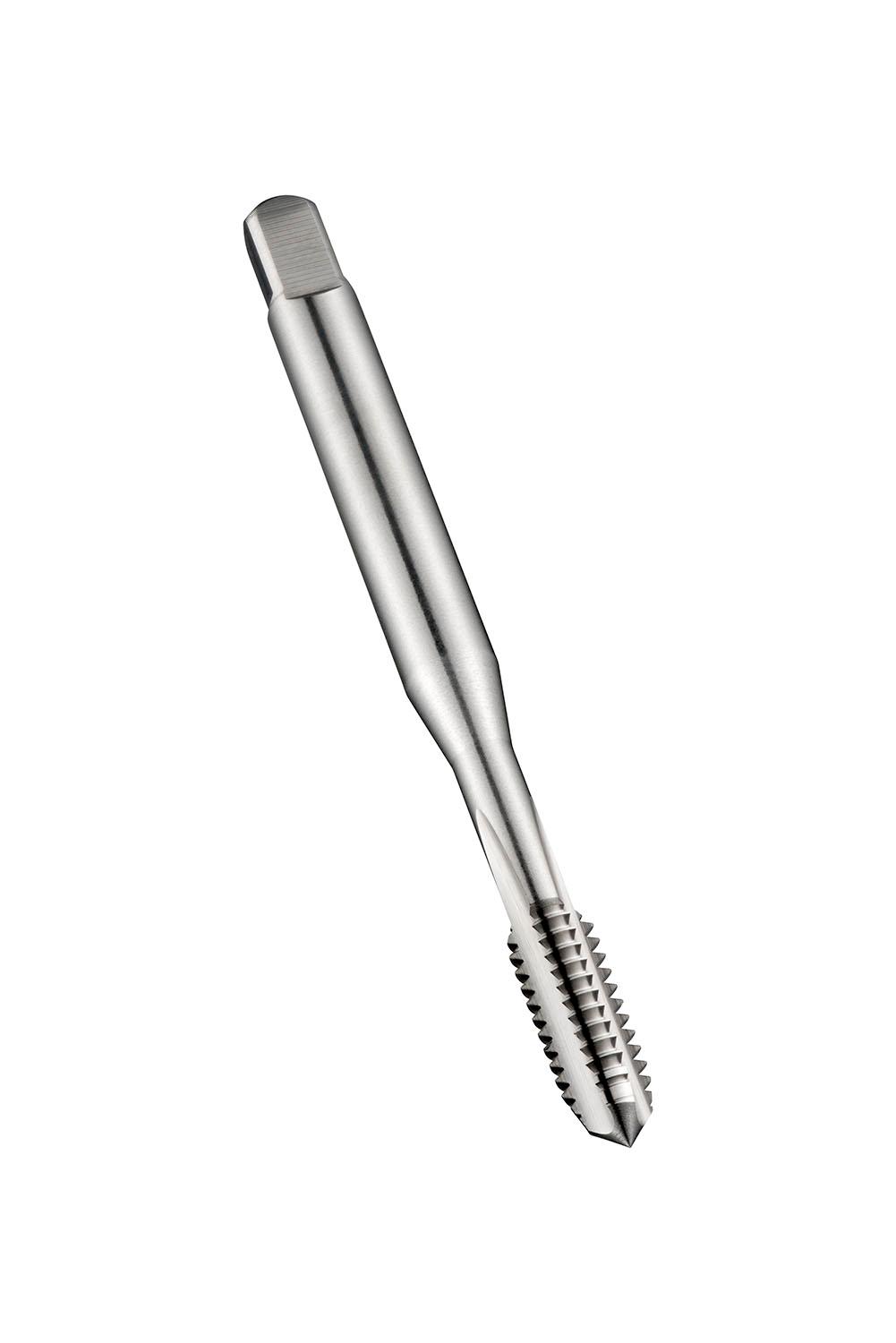

DORMER E2292-64 HSS / HSCo DIN Taps

Description: Value
Product name: E2292-64
Product number (SAP): 86015692
EAN number: 7320760086322

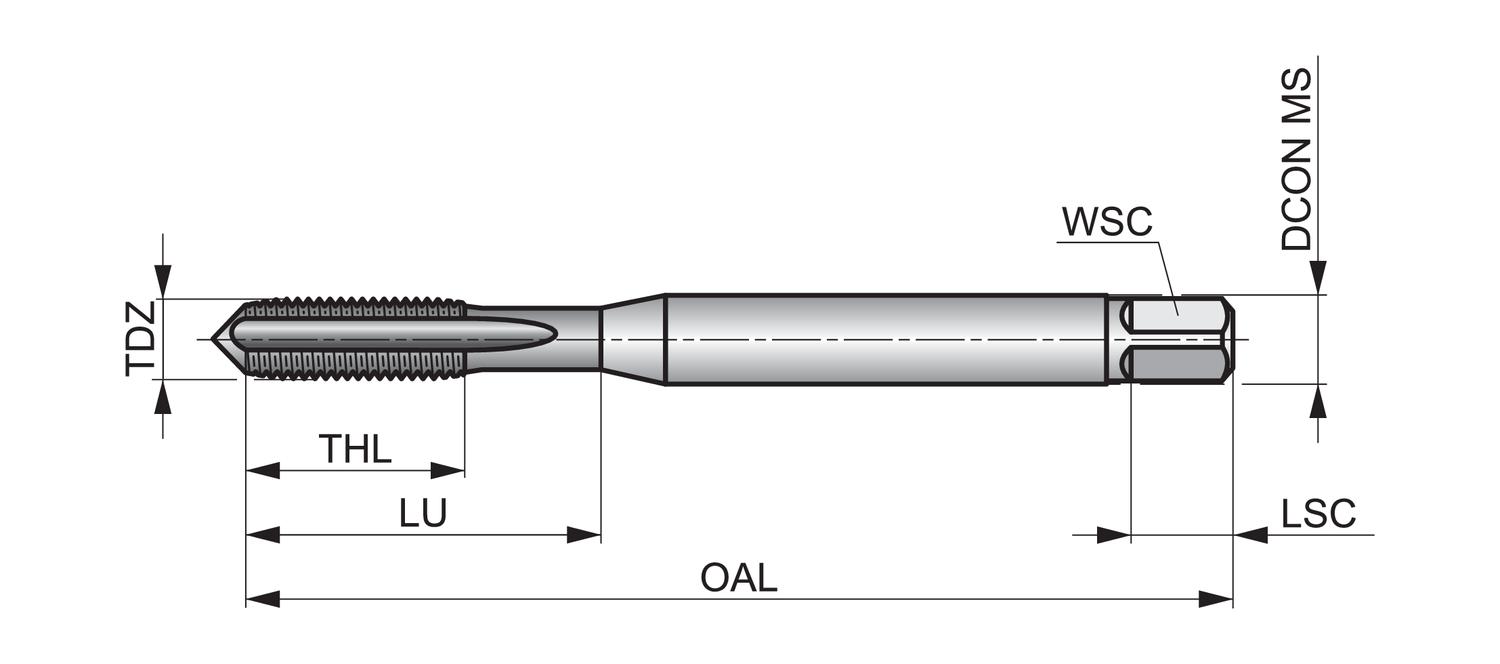

Thread diameter size (TDZ): 2
Thread diameter – millimeter (TD): 2.184 mm
Threads per inch (TPI): 64
Overall length – millimeter (OAL): 45 mm
Overall length – inch (OAL): 1.7717 inch
Threading length – millimeter (THL): 7 mm
Threading length – inch (THL): 0.2756 inch
Connection diameter – inch (DCON MS): 0.1102 inch
Connection diameter – millimeter (DCON MS): 2.8 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.4724 inch
Usable Length – millimeter (LU): 12 mm
Clamping width – inch (WSC): 0.0827 inch
Clamping width – millimeter (WSC): 2.1 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.0748 inch
Premachined hole diameter – millimeter (PHD): 1.9 mm
Gross weight – grams: 4.1
ISO: E2292-64
Ordering code ANSI: E2292-64
