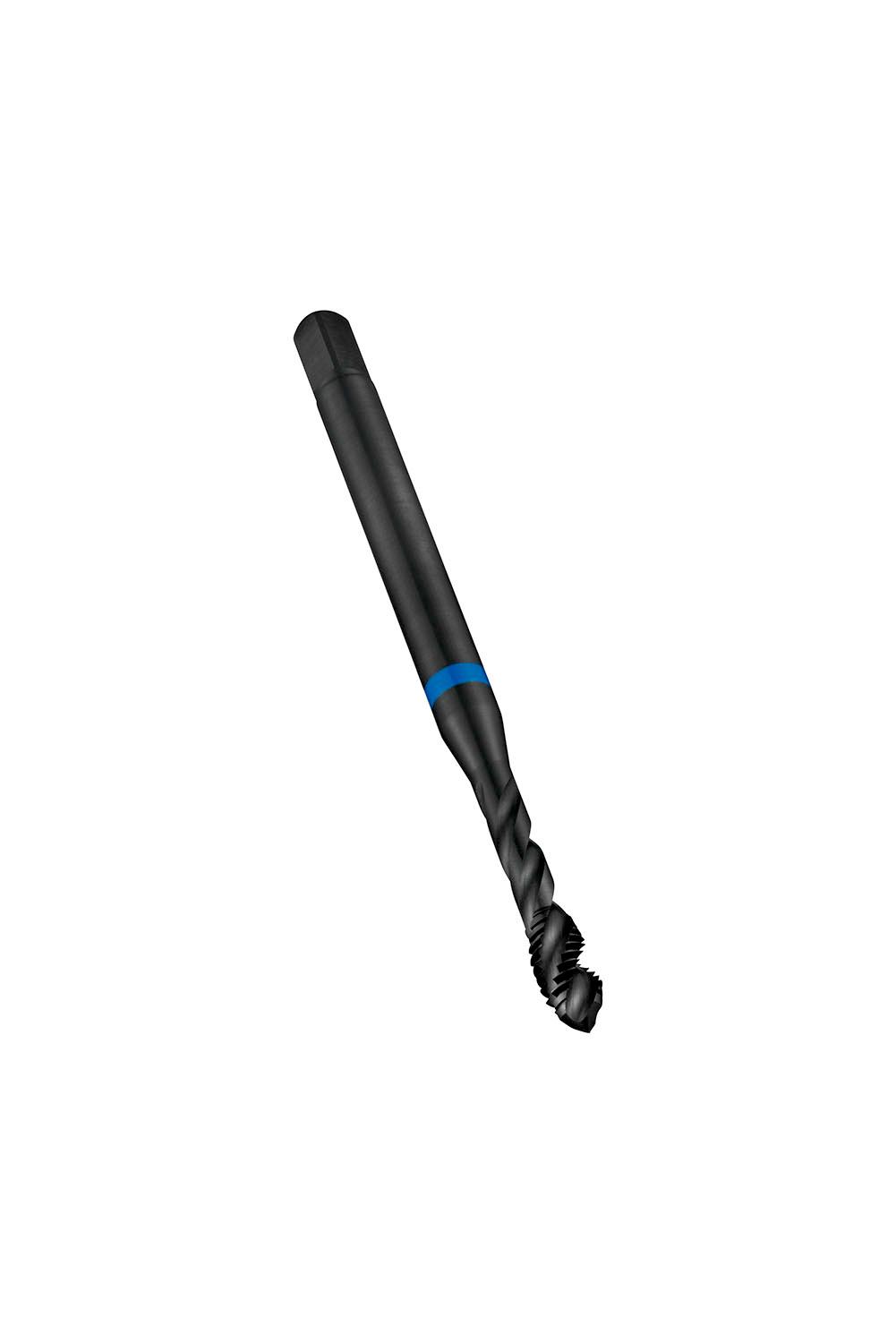

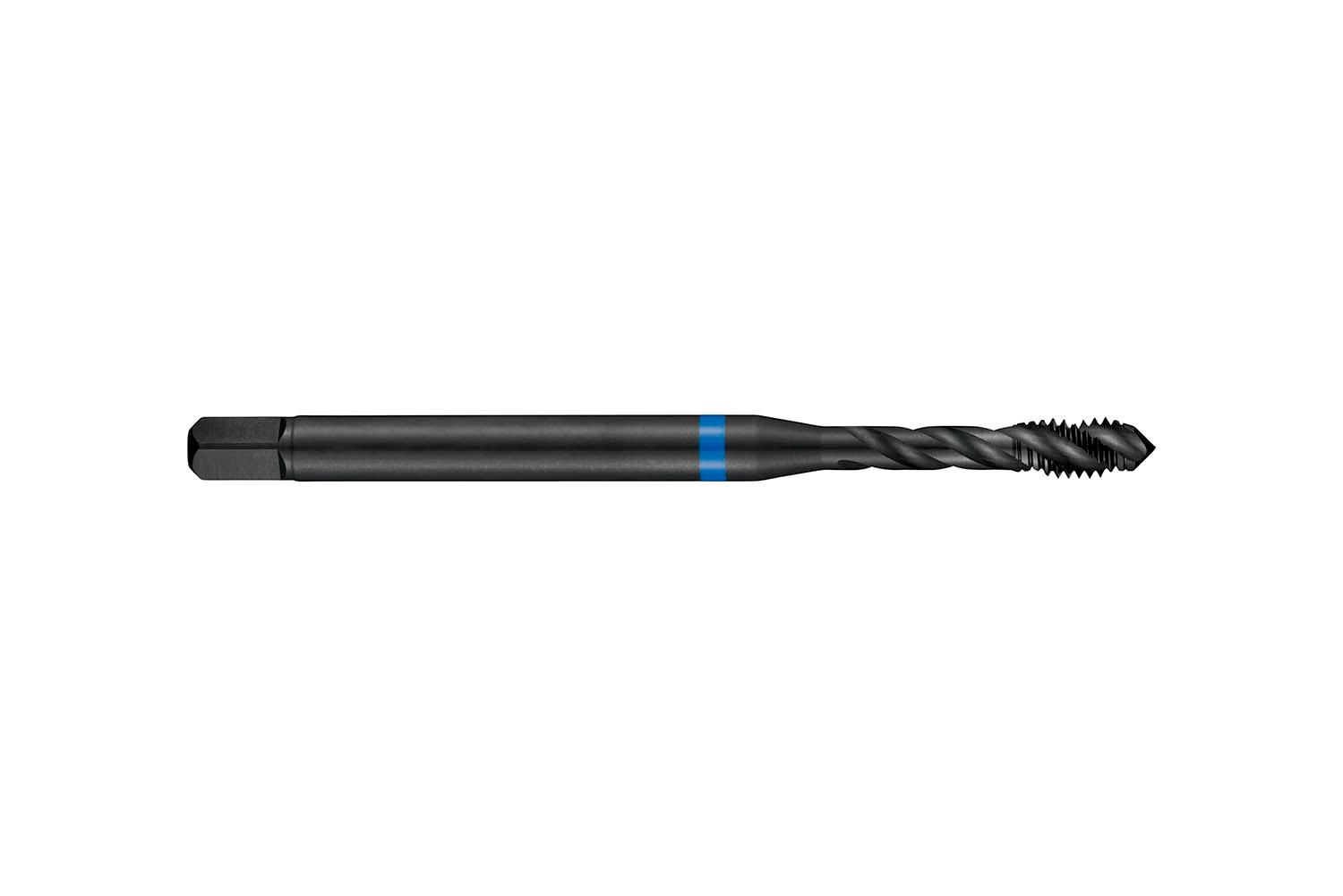

DORMER E238M12 HSS / HSCo DIN Taps

Description: Value
Product name: E238M12
Product number (SAP): 86015705
EAN number: 7320760664032
Product Line: SHARK

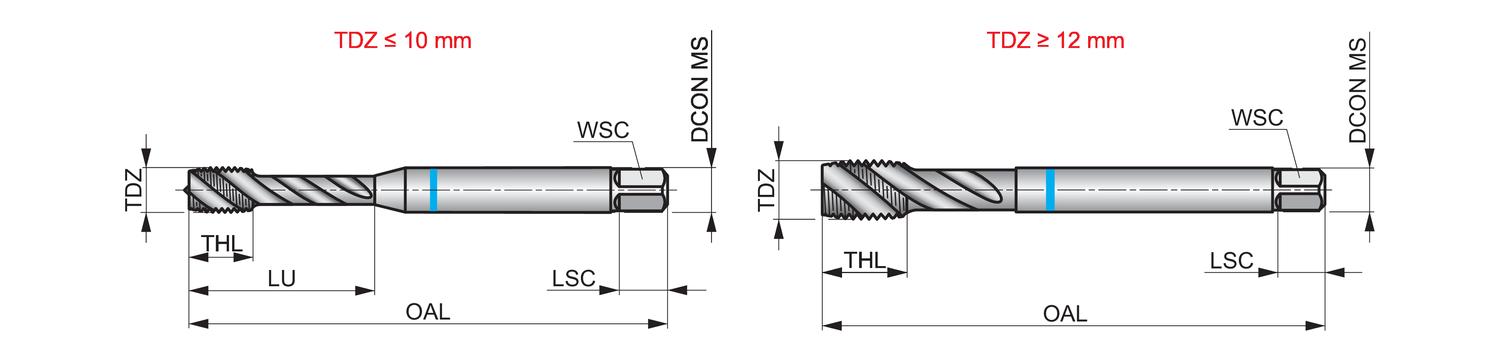

Thread diameter size (TDZ): 12
Thread pitch – millimeter (TP): 1.75 mm
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 16 mm
Threading length – inch (THL): 0.6299 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.2756 inch
Clamping width – millimeter (WSC): 7 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4055 inch
Premachined hole diameter – millimeter (PHD): 10.3 mm
Gross weight – grams: 58.1
ISO: E238M12
Ordering code ANSI: E238M12
