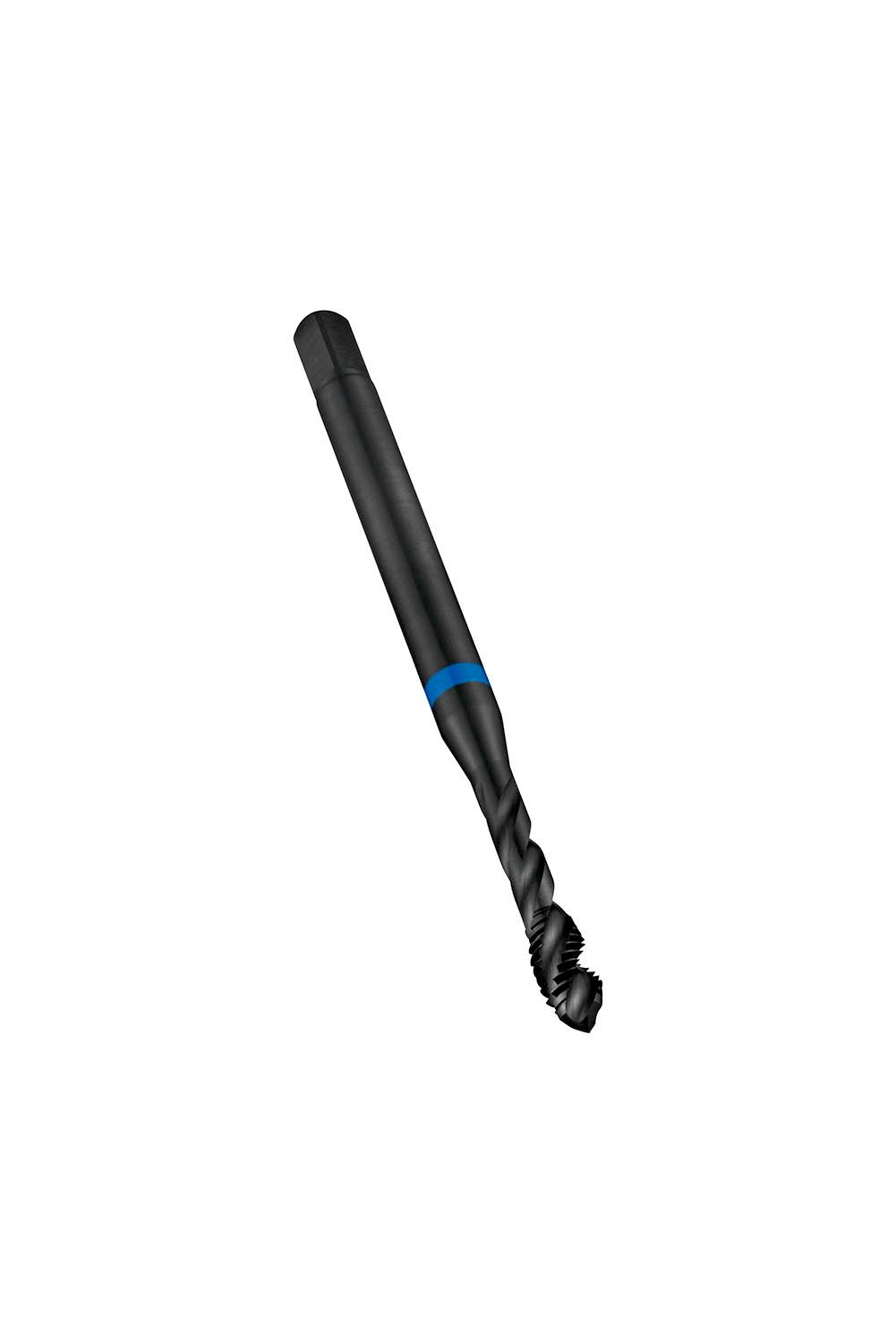

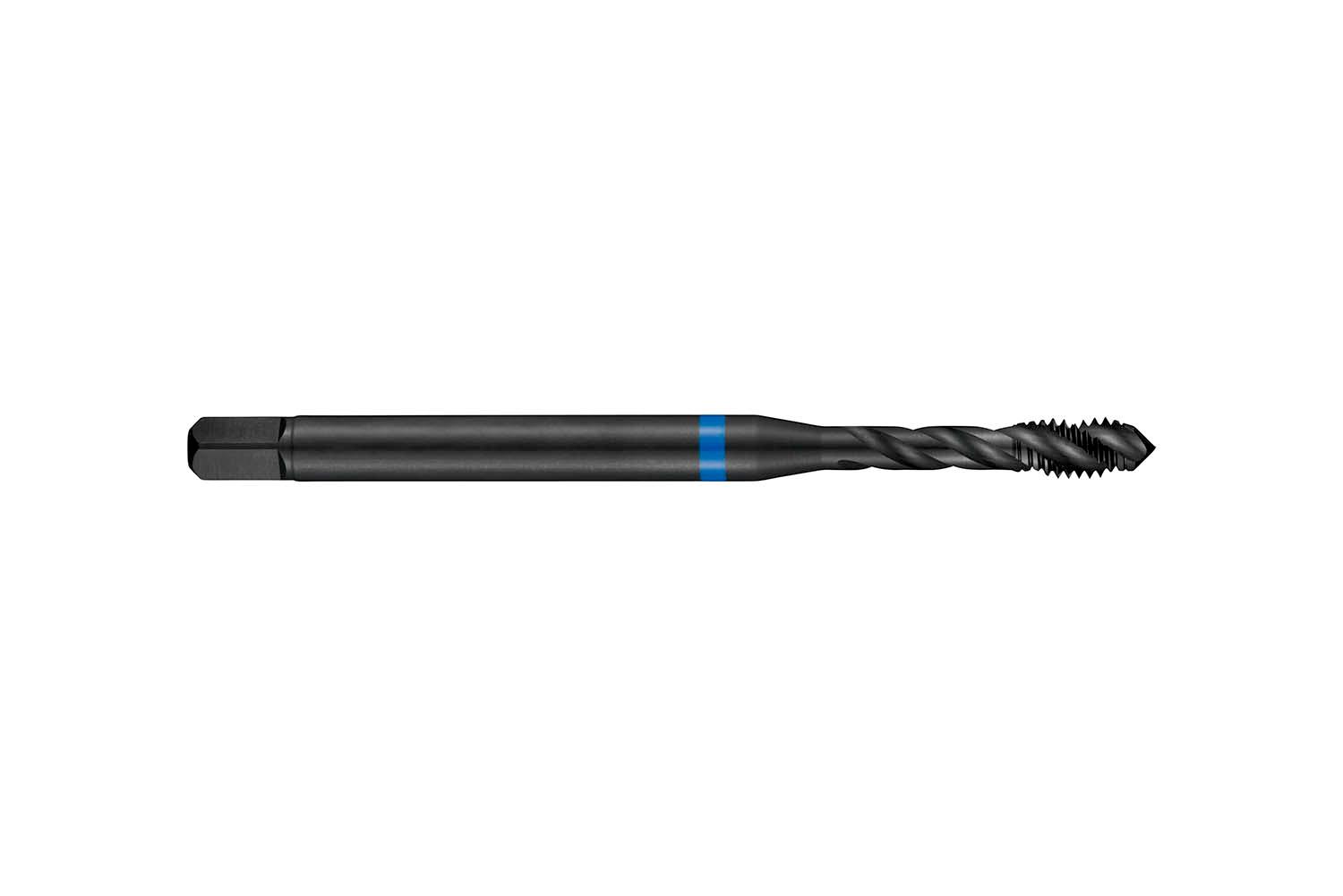

DORMER E238M30 HSS / HSCo DIN Taps

Description: Value
Product name: E238M30
Product number (SAP): 86015714
EAN number: 7320760664124
Product Line: SHARK

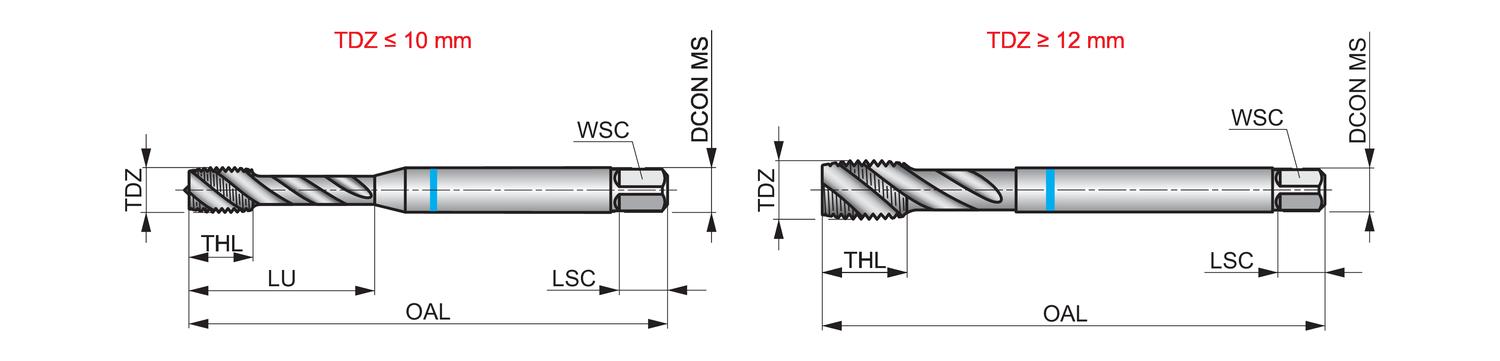

Thread diameter size (TDZ): 30
Thread pitch – millimeter (TP): 3.5 mm
Overall length – millimeter (OAL): 180 mm
Overall length – inch (OAL): 7.0866 inch
Threading length – millimeter (THL): 36 mm
Threading length – inch (THL): 1.4173 inch
Connection diameter – inch (DCON MS): 0.8661 inch
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Clamping Length – inch (LCS): 0.8268 inch
Clamping Length – millimeter (LSC): 21 mm
Premachined hole diameter – inch (PHD): 1.0433 inch
Premachined hole diameter – millimeter (PHD): 26.5 mm
Gross weight – grams: 508.8
ISO: E238M30
Ordering code ANSI: E238M30
