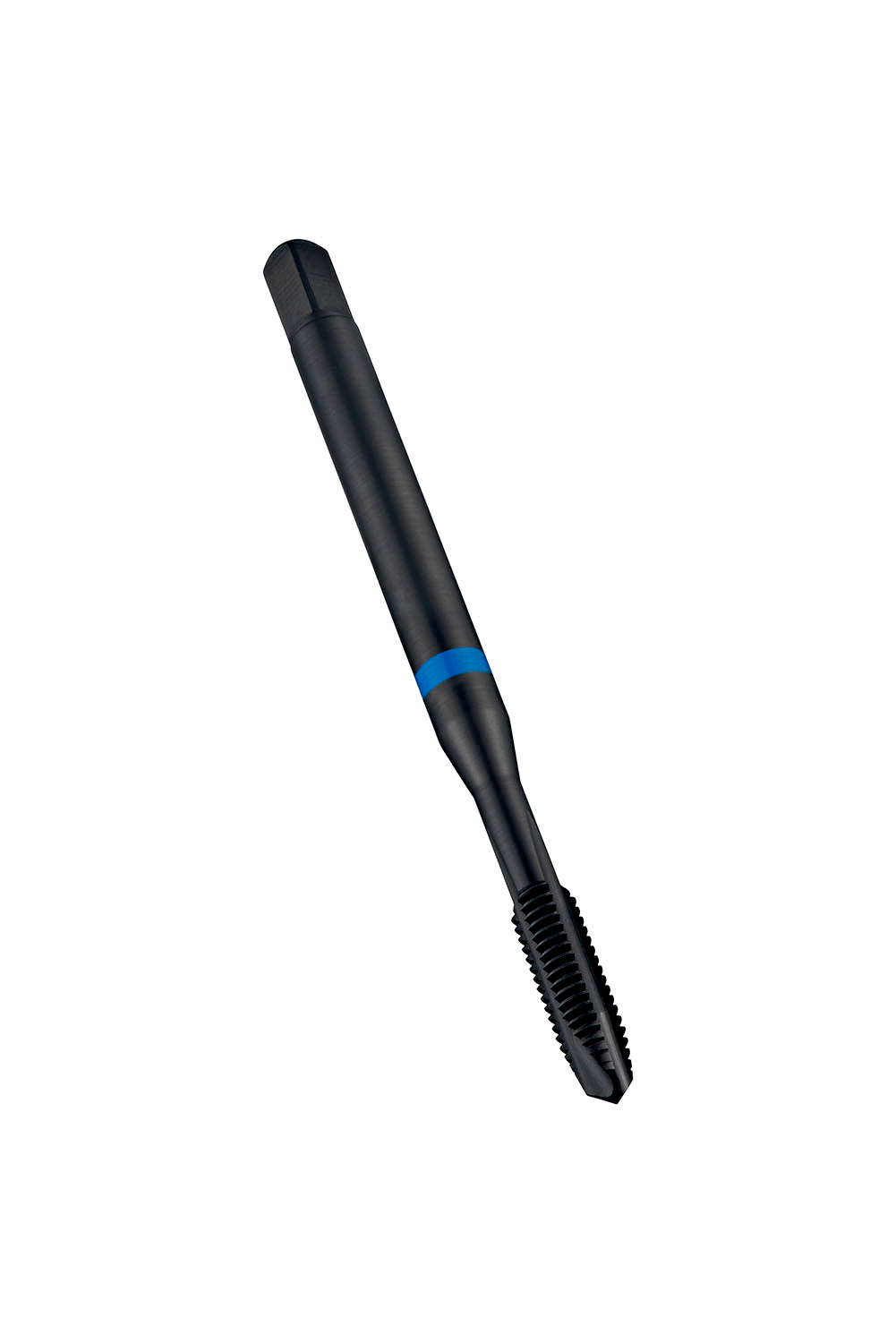

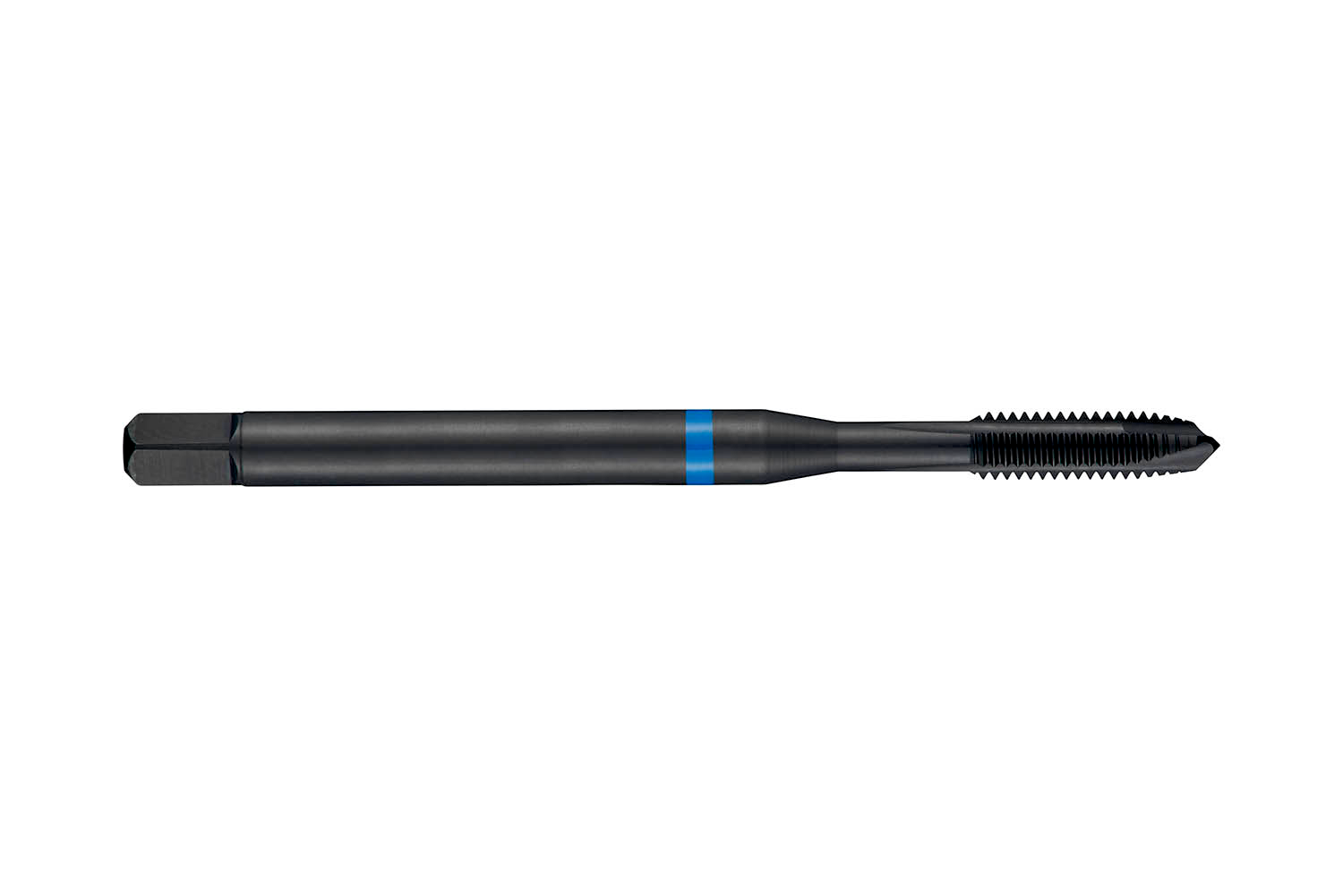

DORMER E240M3 HSS / HSCo DIN Taps

Description: Value
Product name: E240M3
Product number (SAP): 86015738
EAN number: 7320760664360
Product Line: SHARK

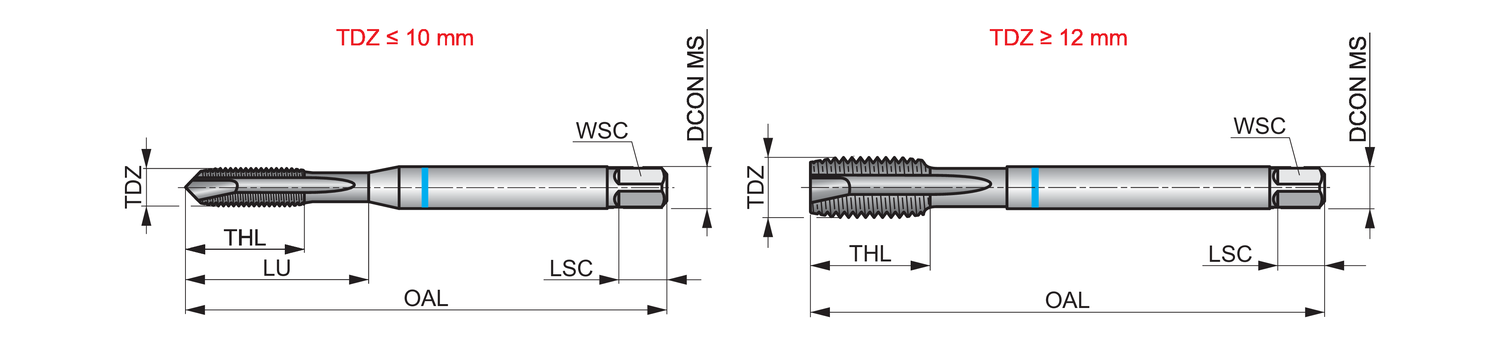

Thread diameter size (TDZ): 3
Thread pitch – millimeter (TP): 0.5 mm
Overall length – millimeter (OAL): 56 mm
Overall length – inch (OAL): 2.2047 inch
Threading length – millimeter (THL): 9 mm
Threading length – inch (THL): 0.3543 inch
Connection diameter – inch (DCON MS): 0.1378 inch
Connection diameter – millimeter (DCON MS): 3.5 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.7087 inch
Usable Length – millimeter (LU): 18 mm
Clamping width – inch (WSC): 0.1063 inch
Clamping width – millimeter (WSC): 2.7 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.0984 inch
Premachined hole diameter – millimeter (PHD): 2.5 mm
Gross weight – grams: 6.1
ISO: E240M3
Ordering code ANSI: E240M3
