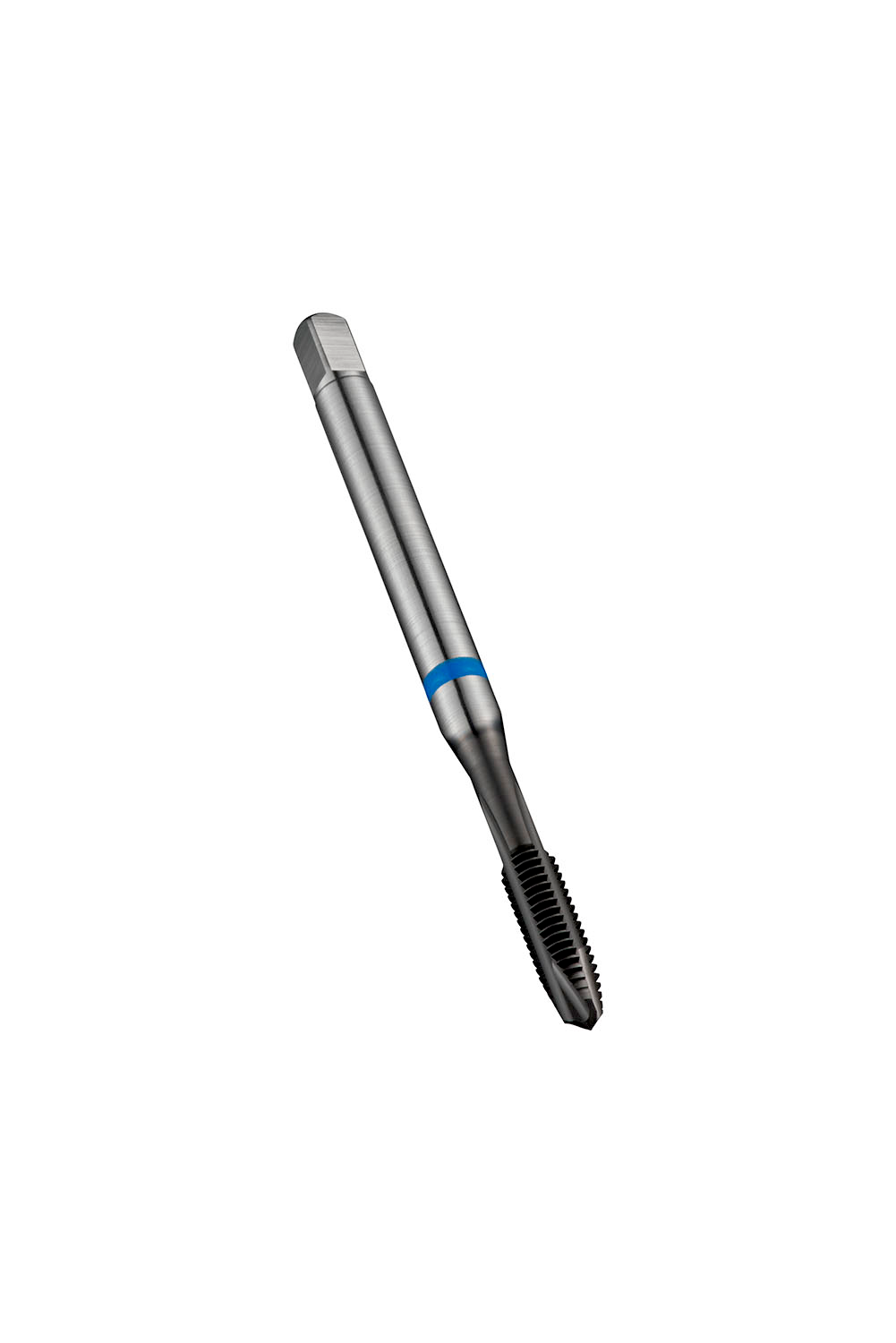

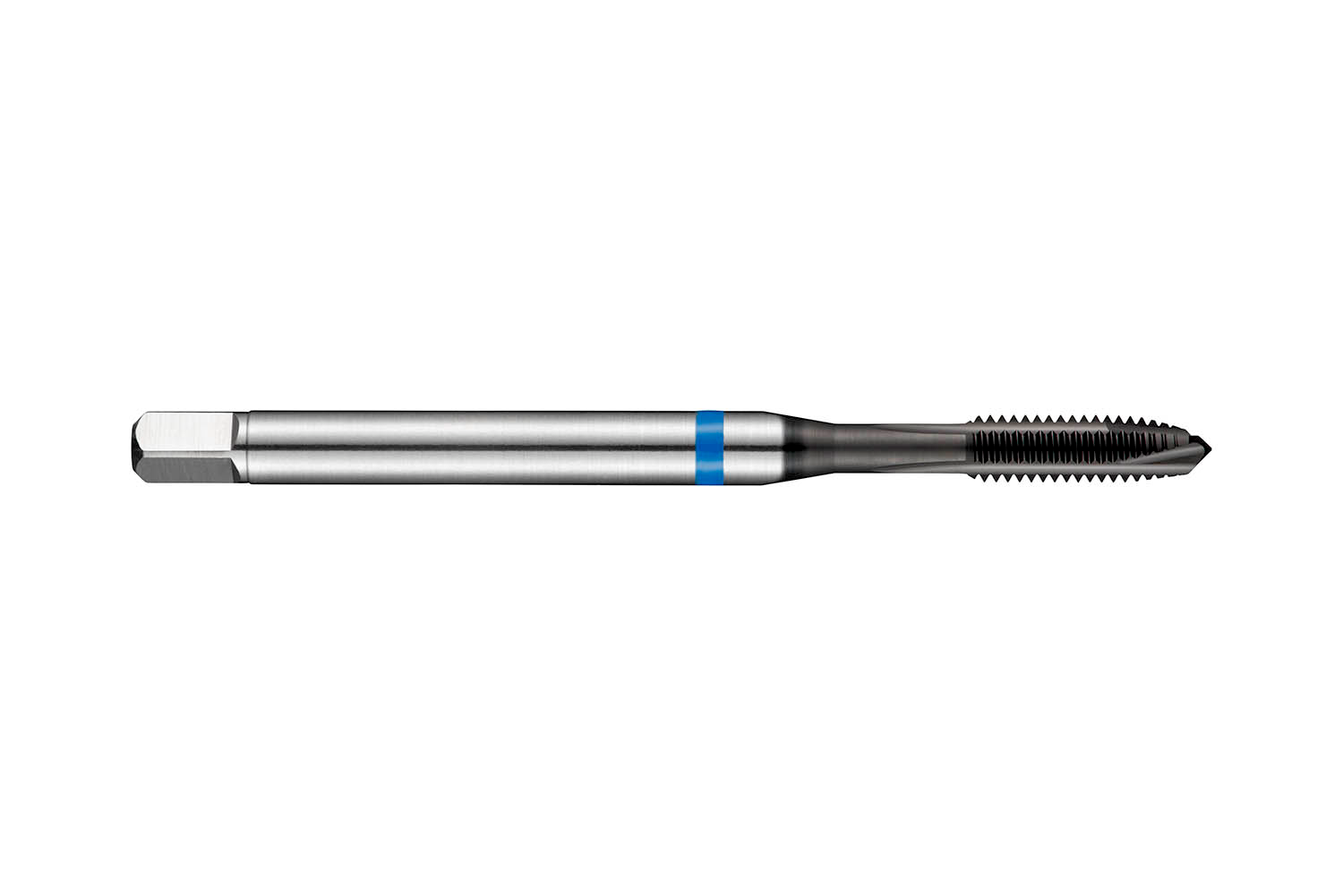

DORMER E241M4 HSS / HSCo DIN Taps

Description: Value
Product name: E241M4
Product number (SAP): 86015751
EAN number: 7320760664490
Product Line: SHARK

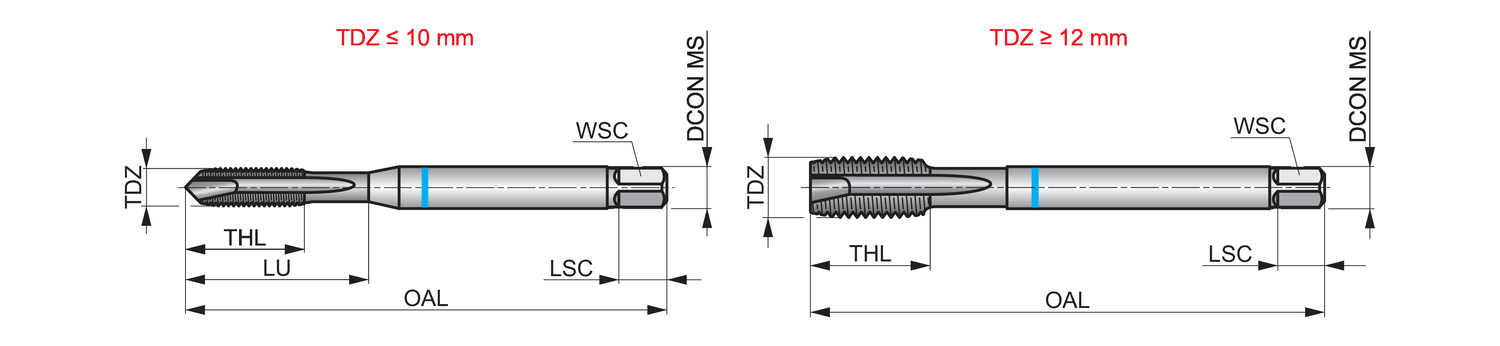

Thread diameter size (TDZ): 4
Thread pitch – millimeter (TP): 0.7 mm
Overall length – millimeter (OAL): 63 mm
Overall length – inch (OAL): 2.4803 inch
Threading length – millimeter (THL): 12 mm
Threading length – inch (THL): 0.4724 inch
Connection diameter – inch (DCON MS): 0.1772 inch
Connection diameter – millimeter (DCON MS): 4.5 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.8268 inch
Usable Length – millimeter (LU): 21 mm
Clamping width – inch (WSC): 0.1339 inch
Clamping width – millimeter (WSC): 3.4 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.1299 inch
Premachined hole diameter – millimeter (PHD): 3.3 mm
Gross weight – grams: 8.6
ISO: E241M4
Ordering code ANSI: E241M4
