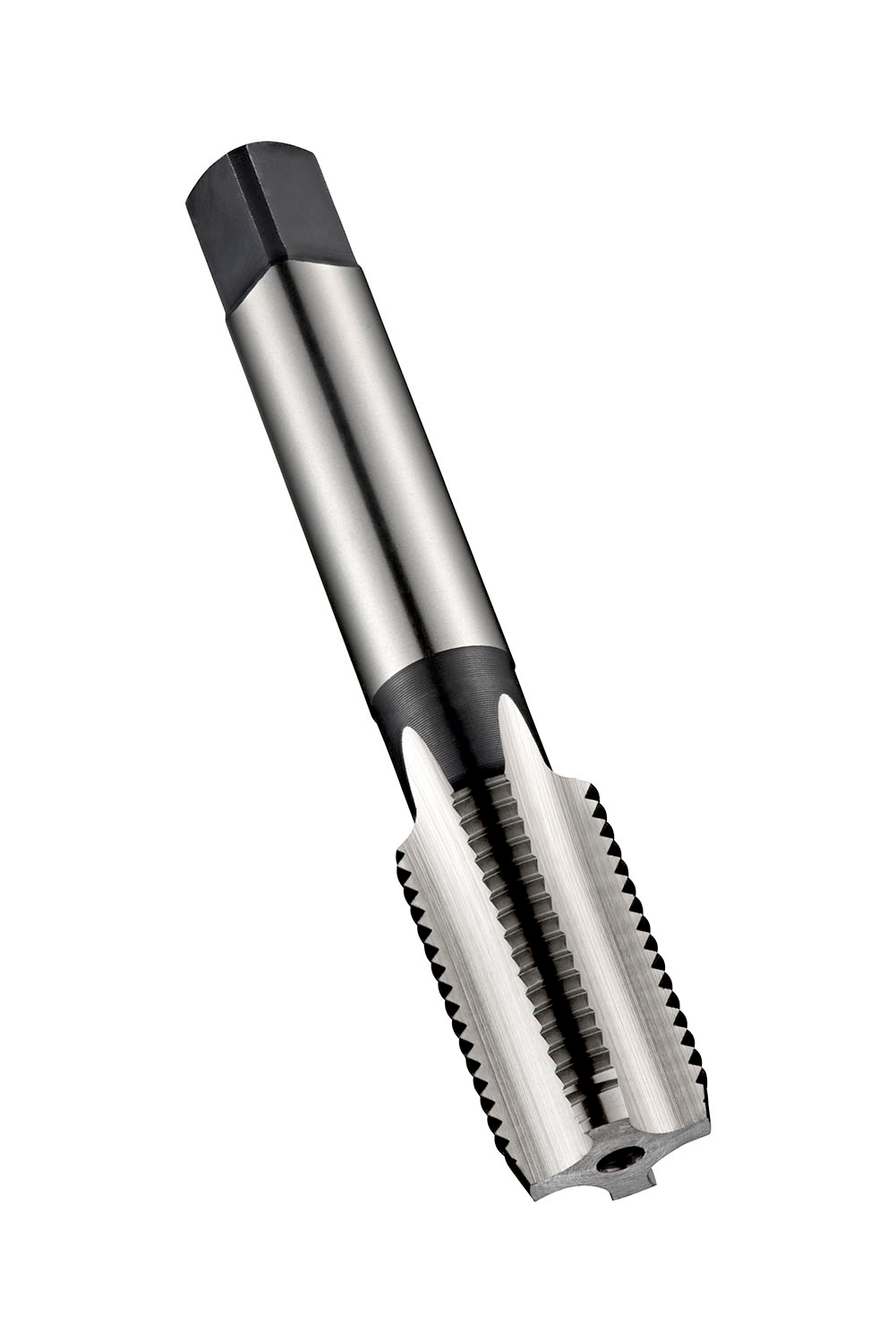

DORMER E243PG16NO3 HSS / HSCo DIN Taps

Description: Value
Product name: E243PG16NO3
Product number (SAP): 86015762
EAN number: 7320760086612

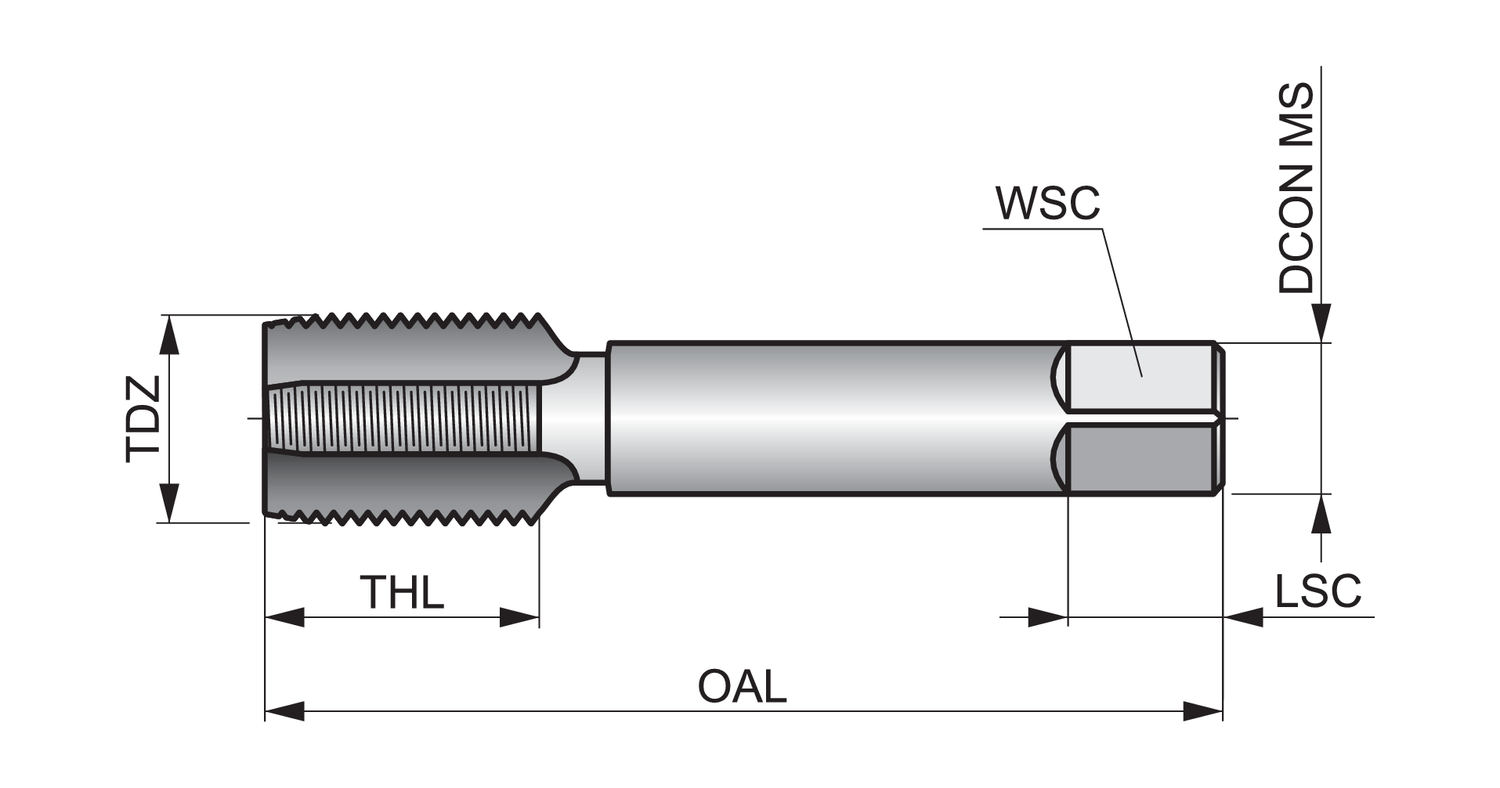

Thread diameter size (TDZ): 16
Thread diameter – millimeter (TD): 22.5 mm
Threads per inch (TPI): 18
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 22 mm
Threading length – inch (THL): 0.8661 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.5709 inch
Clamping width – millimeter (WSC): 14.5 mm
Clamping Length – inch (LCS): 0.6693 inch
Clamping Length – millimeter (LSC): 17 mm
Premachined hole diameter – inch (PHD): 0.8366 inch
Premachined hole diameter – millimeter (PHD): 21.25 mm
Gross weight – grams: 159.7
ISO: E243PG16NO3
Ordering code ANSI: E243PG16NO3
