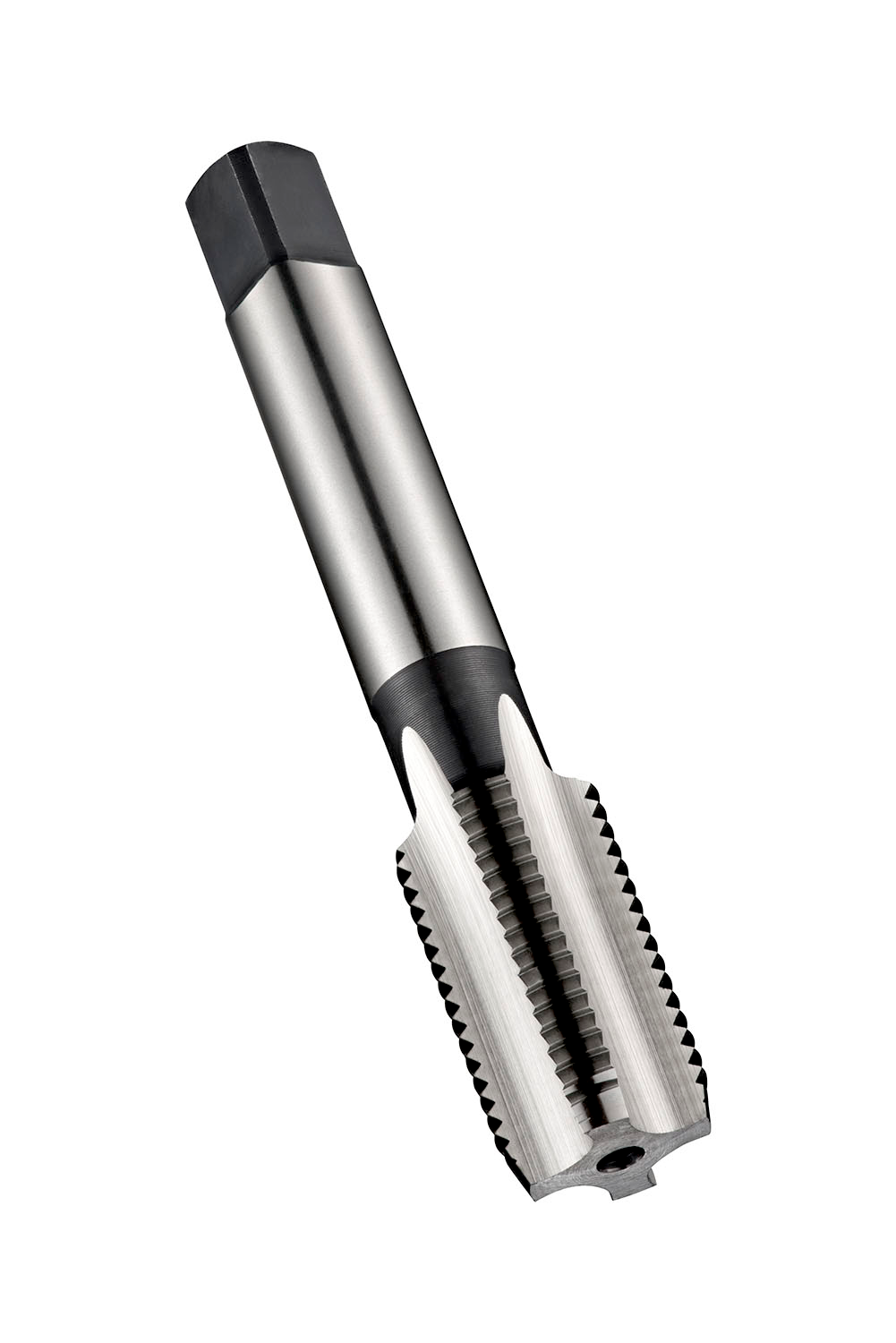

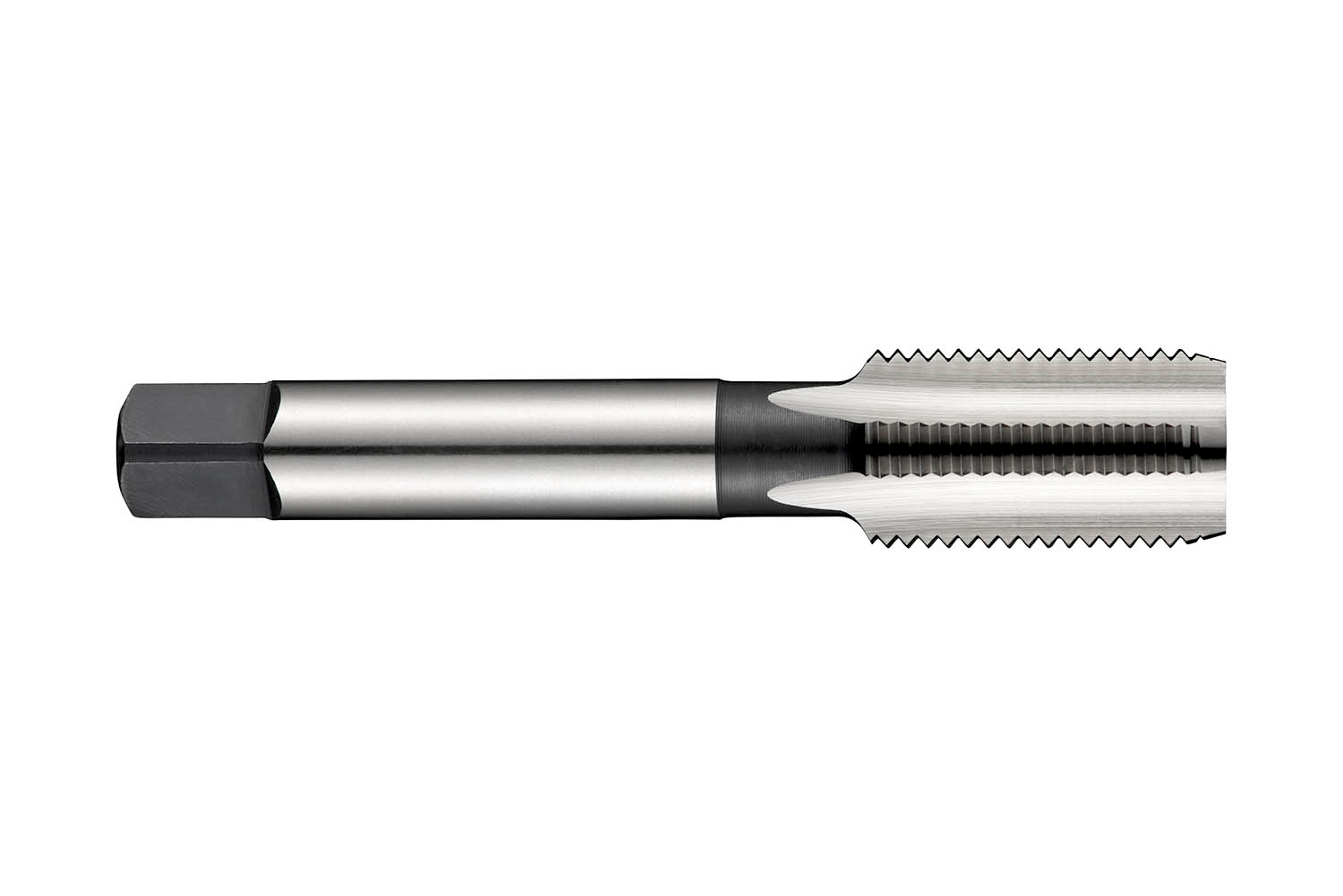

DORMER E243PG21NO2 HSS / HSCo DIN Taps

Description: Value
Product name: E243PG21NO2
Product number (SAP): 86015763
EAN number: 7320760086629

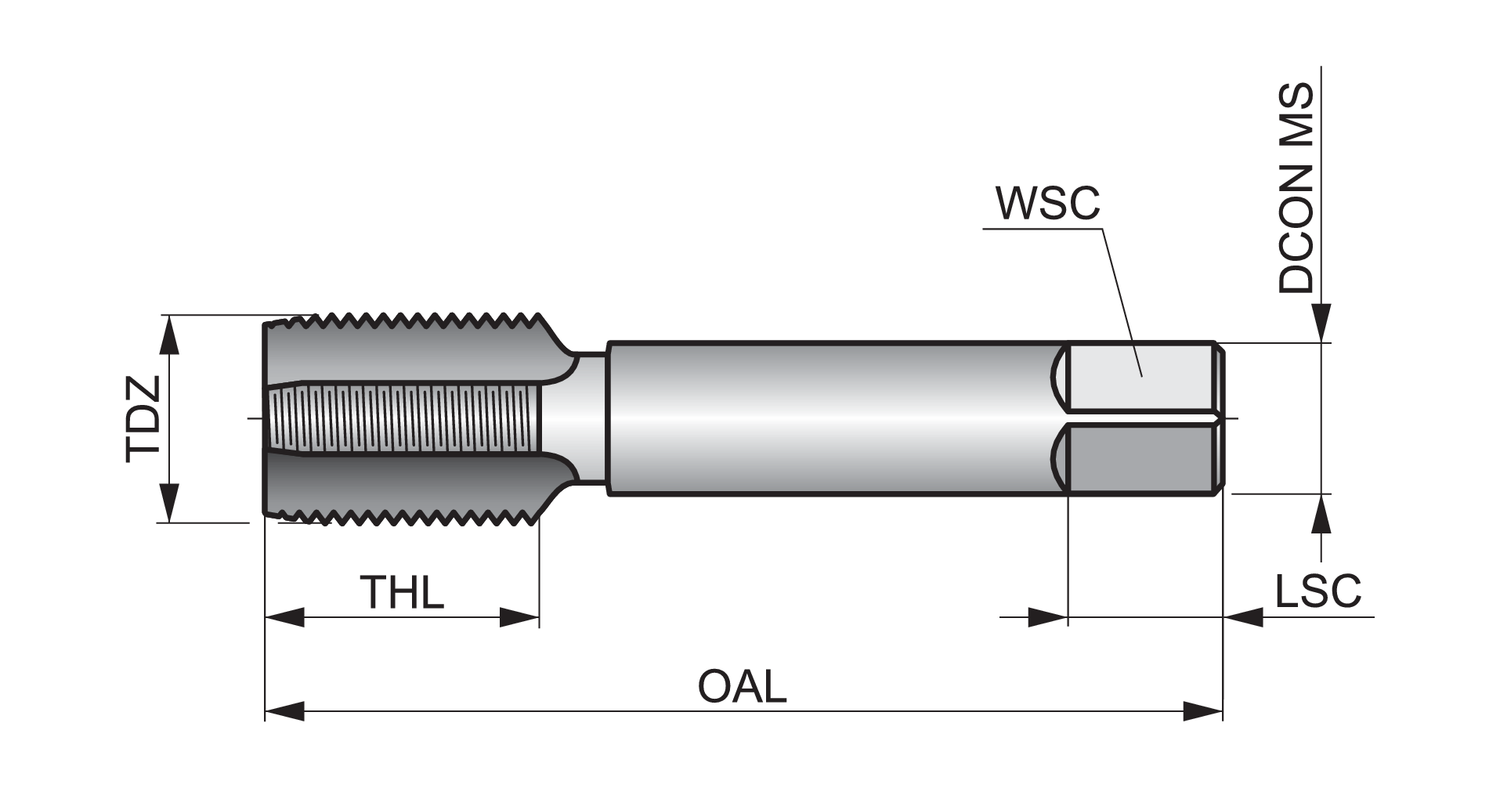

Thread diameter size (TDZ): 21
Thread diameter – millimeter (TD): 28.3 mm
Threads per inch (TPI): 16
Overall length – millimeter (OAL): 90 mm
Overall length – inch (OAL): 3.5433 inch
Threading length – millimeter (THL): 22 mm
Threading length – inch (THL): 0.8661 inch
Connection diameter – inch (DCON MS): 0.8661 inch
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Clamping Length – inch (LCS): 0.8268 inch
Clamping Length – millimeter (LSC): 21 mm
Premachined hole diameter – inch (PHD): 1.063 inch
Premachined hole diameter – millimeter (PHD): 27 mm
Gross weight – grams: 279.6
ISO: E243PG21NO2
Ordering code ANSI: E243PG21NO2
