DORMER E243PG9NO3 HSS / HSCo DIN Taps

Description

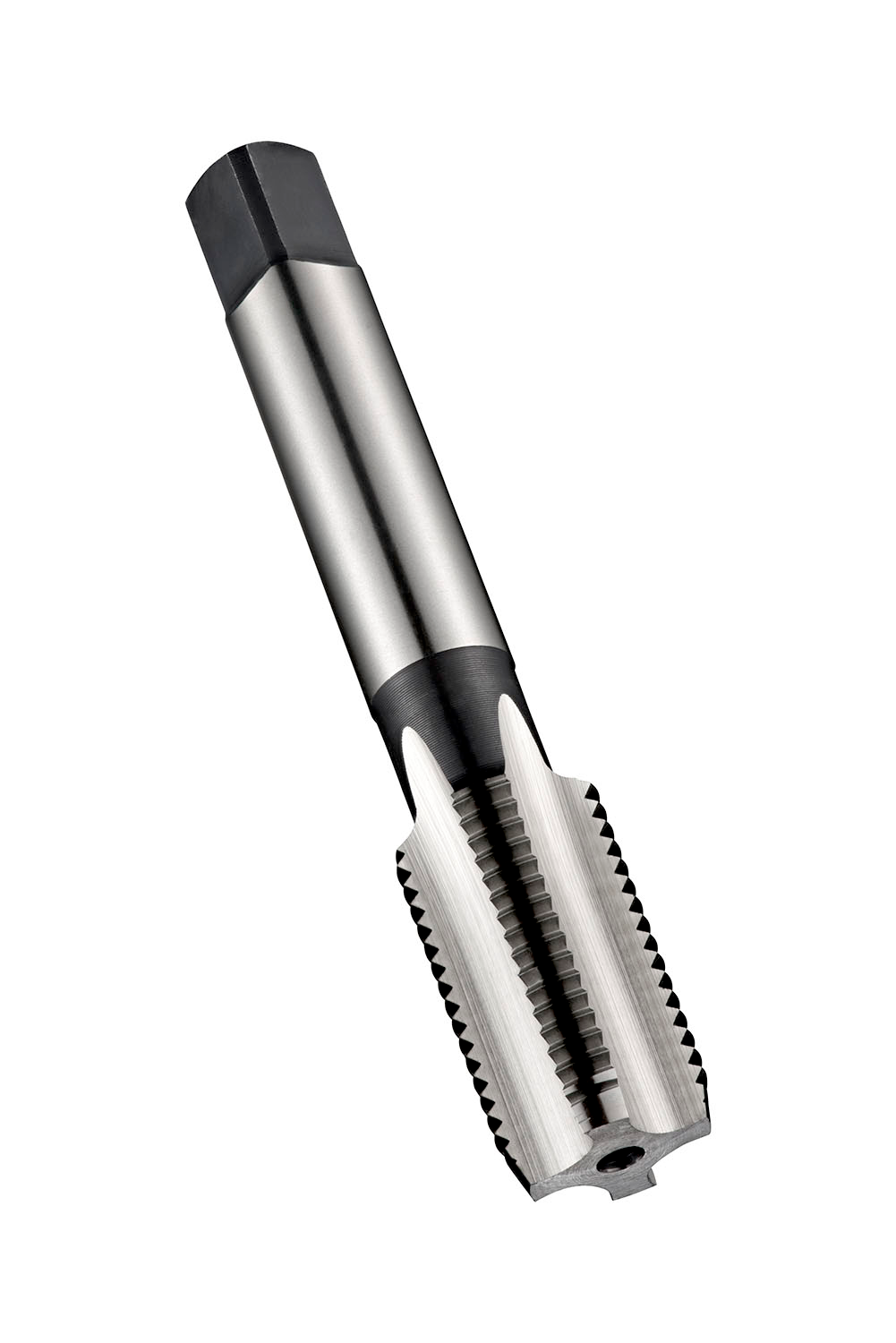

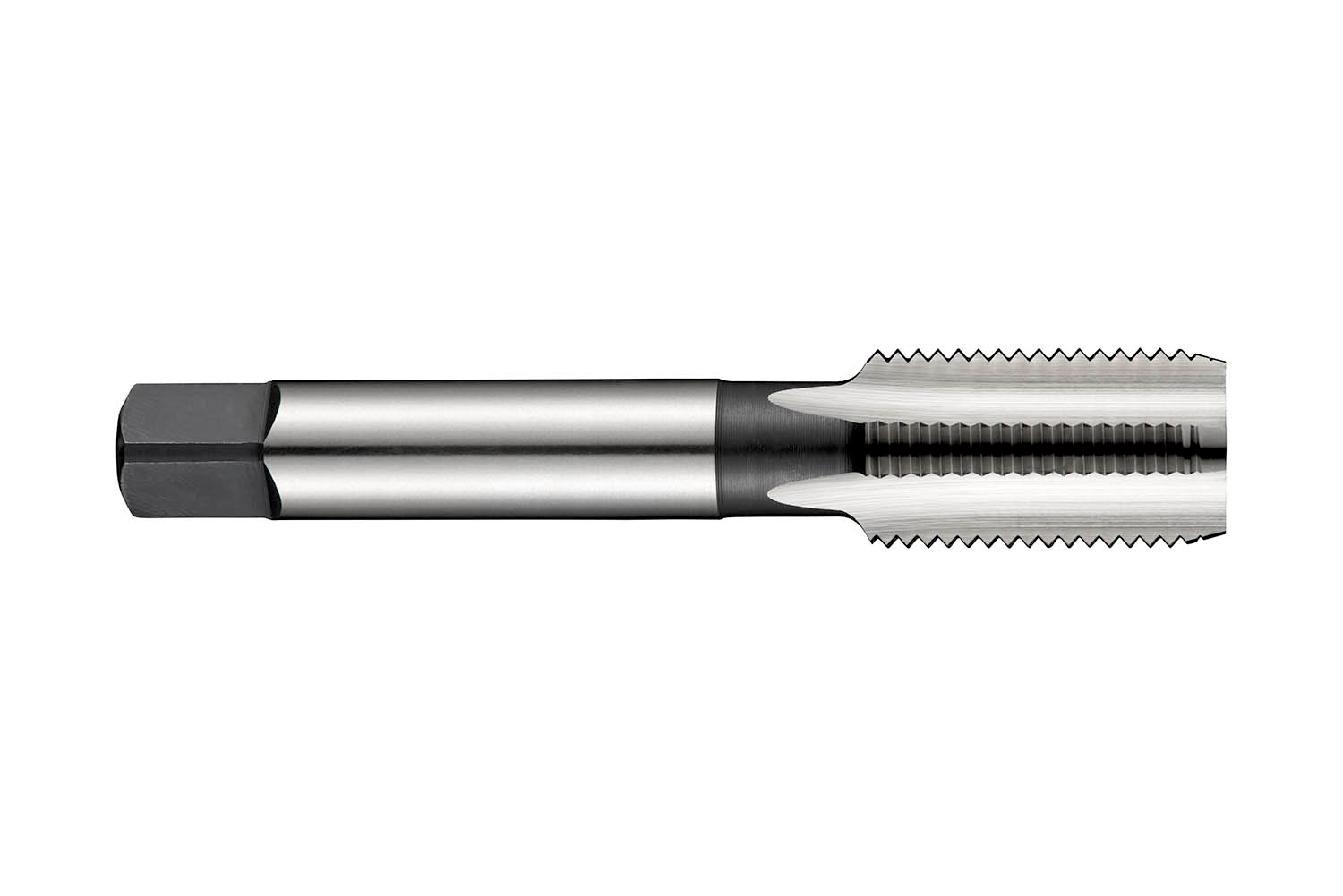

Straight flute tap NO3 with a 2-3xP plug lead, for Panzergewinde (steel conduit thread) PG9 with 18 TPI and Normal class of fit, dimensions according to DIN 40432 standard with 12.0mm shank and 9.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1452 kg
Dimensions
barcode

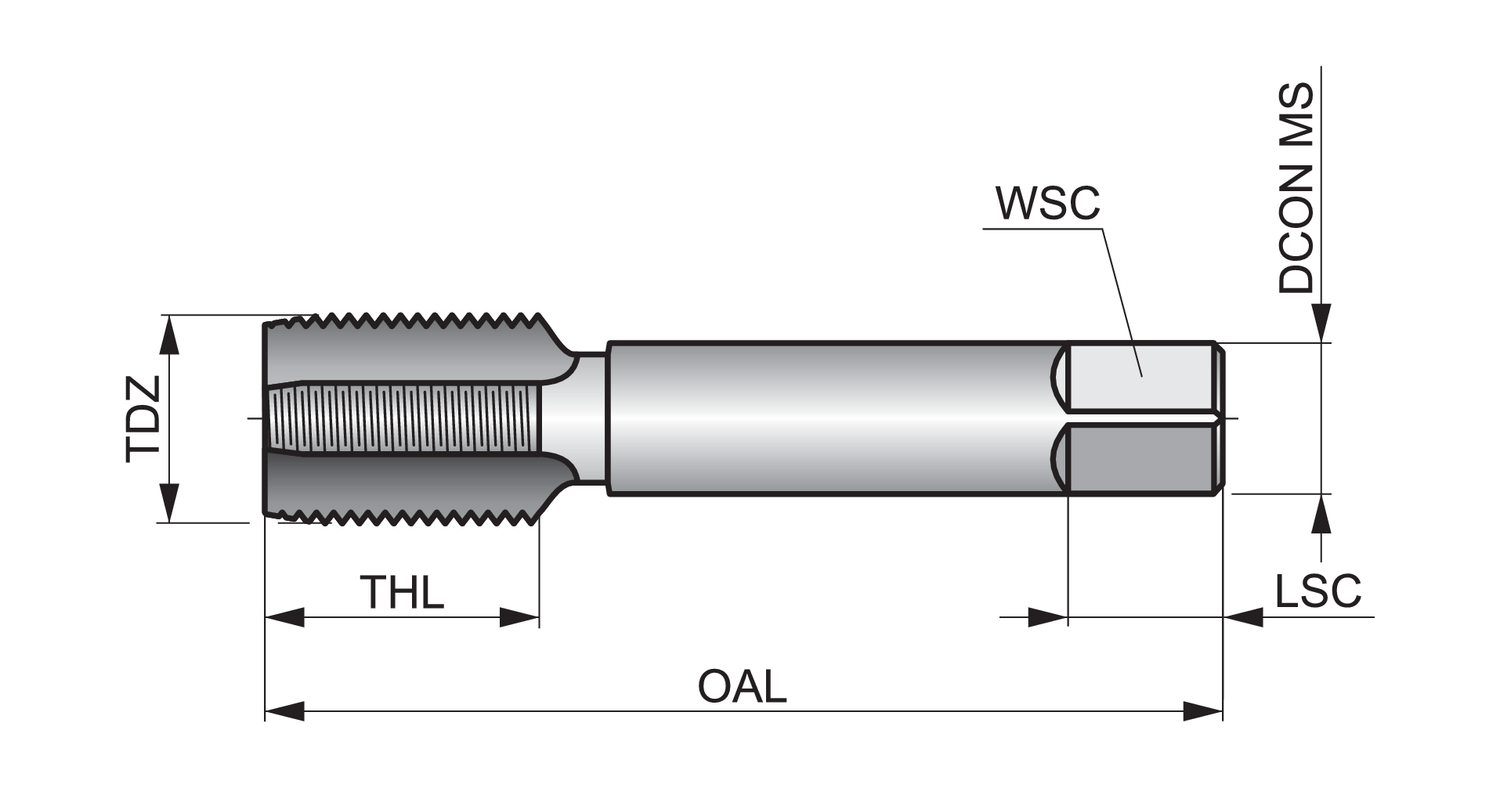

Additional Information	Description: Value Product name: E243PG9NO3 Product number (SAP): 86015772 EAN number: 7320760086711 Thread diameter size (TDZ): 9 Thread diameter – millimeter (TD): 15.2 mm Threads per inch (TPI): 18 Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.7559 inch Threading length – millimeter (THL): 22 mm Threading length – inch (THL): 0.8661 inch Connection diameter – inch (DCON MS): 0.4724 inch Connection diameter – millimeter (DCON MS): 12 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.4724 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.5472 inch Premachined hole diameter – millimeter (PHD): 13.9 mm Gross weight – grams: 64 ISO: E243PG9NO3 Ordering code ANSI: E243PG9NO3
