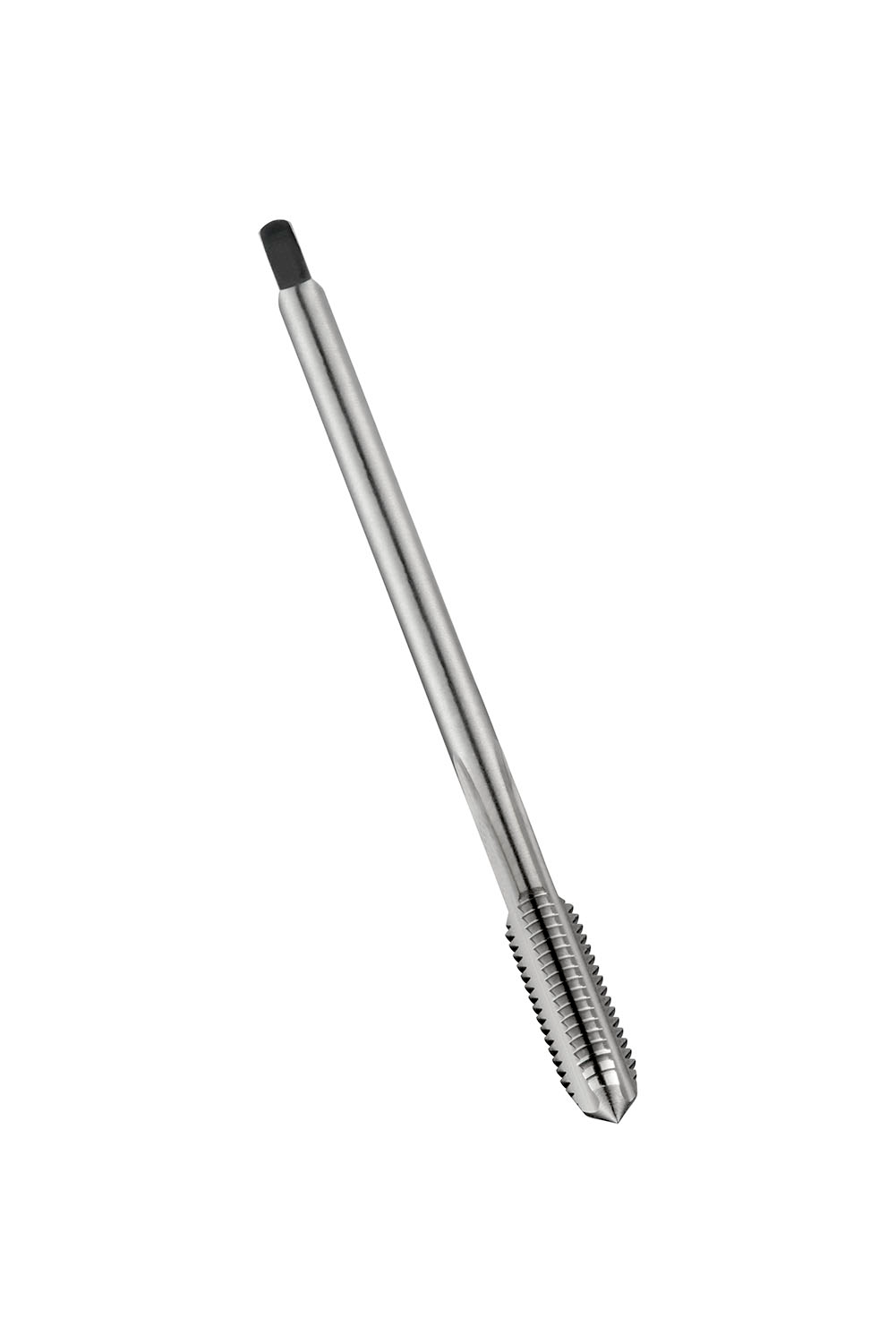

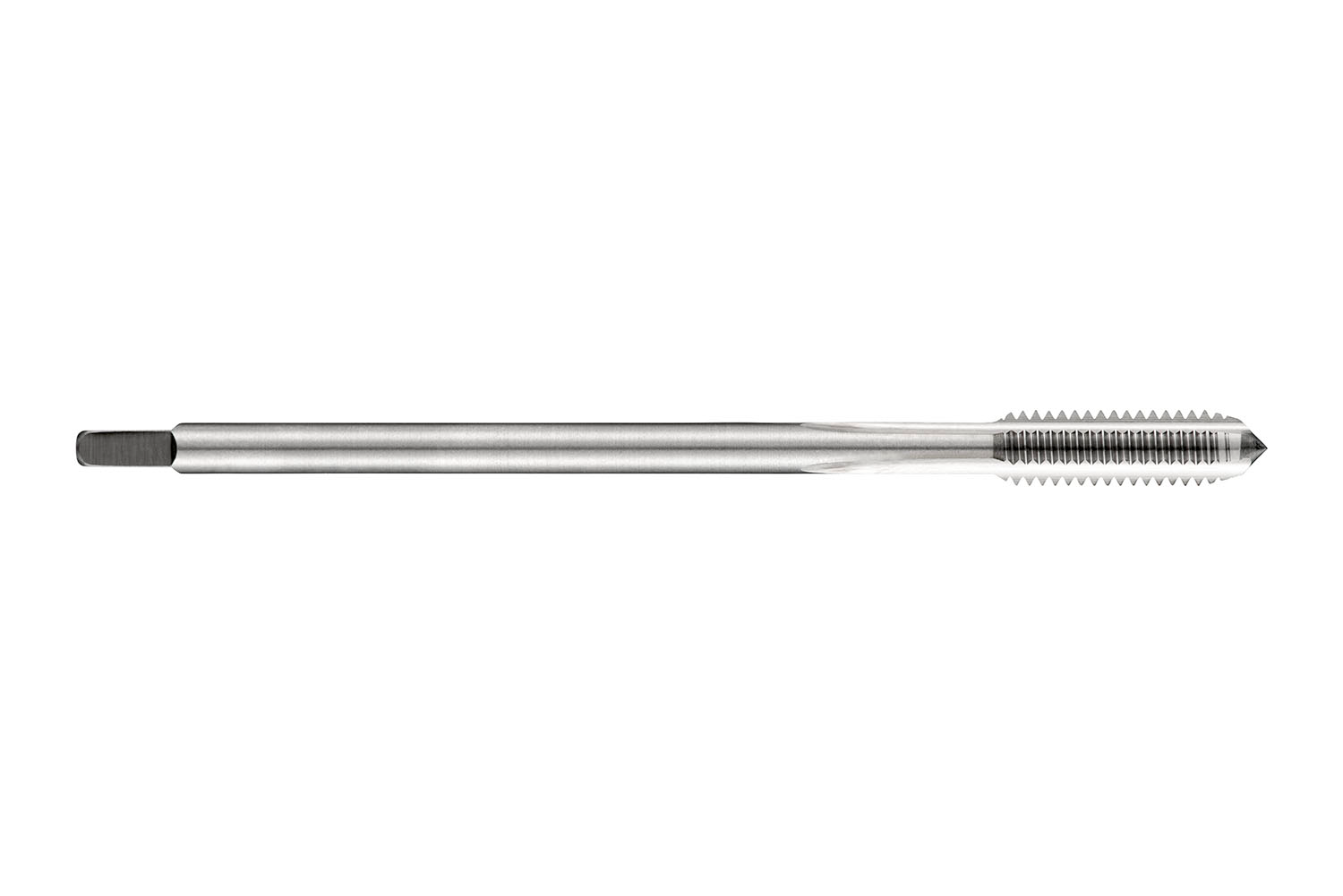

DORMER E250M45 HSS / HSCo DIN Taps

Description: Value
Product name: E250M45
Product number (SAP): 86015798
EAN number: 7320760087114
Thread diameter size (TDZ): 45
Thread pitch – millimeter (TP): 4.5 mm
Overall length – millimeter (OAL): 220 mm
Overall length – inch (OAL): 8.6614 inch
Threading length – millimeter (THL): 65 mm
Threading length – inch (THL): 2.5591 inch
Connection diameter – inch (DCON MS): 1.4173 inch
Connection diameter – millimeter (DCON MS): 36 mm
Flute count (NOF): 6
Clamping width – inch (WSC): 1.1417 inch
Clamping width – millimeter (WSC): 29 mm
Clamping Length – inch (LCS): 1.2598 inch
Clamping Length – millimeter (LSC): 32 mm
Premachined hole diameter – inch (PHD): 1.5945 inch
Premachined hole diameter – millimeter (PHD): 40.5 mm
Gross weight – grams: 1750.2
ISO: E250M45
Ordering code ANSI: E250M45
