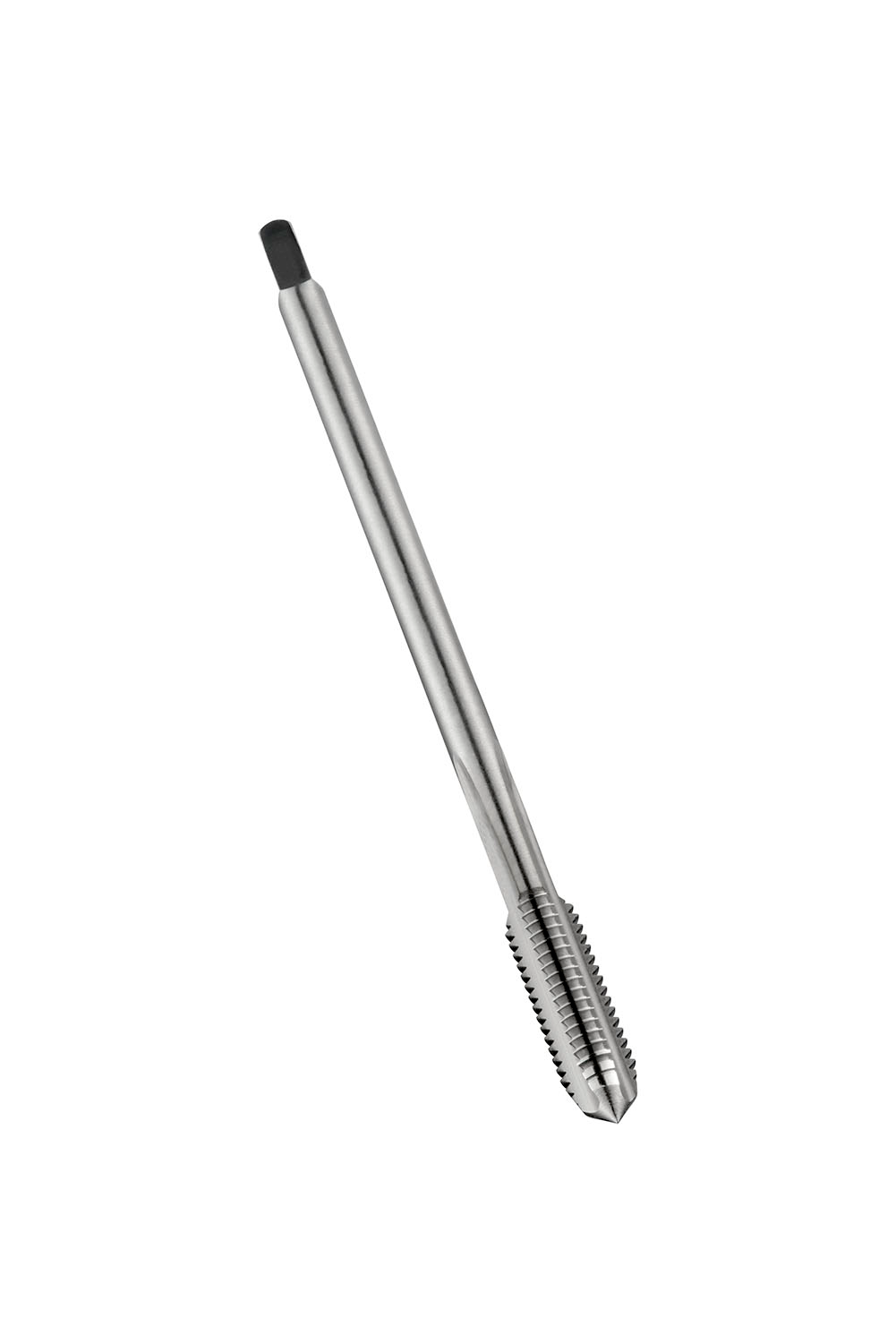

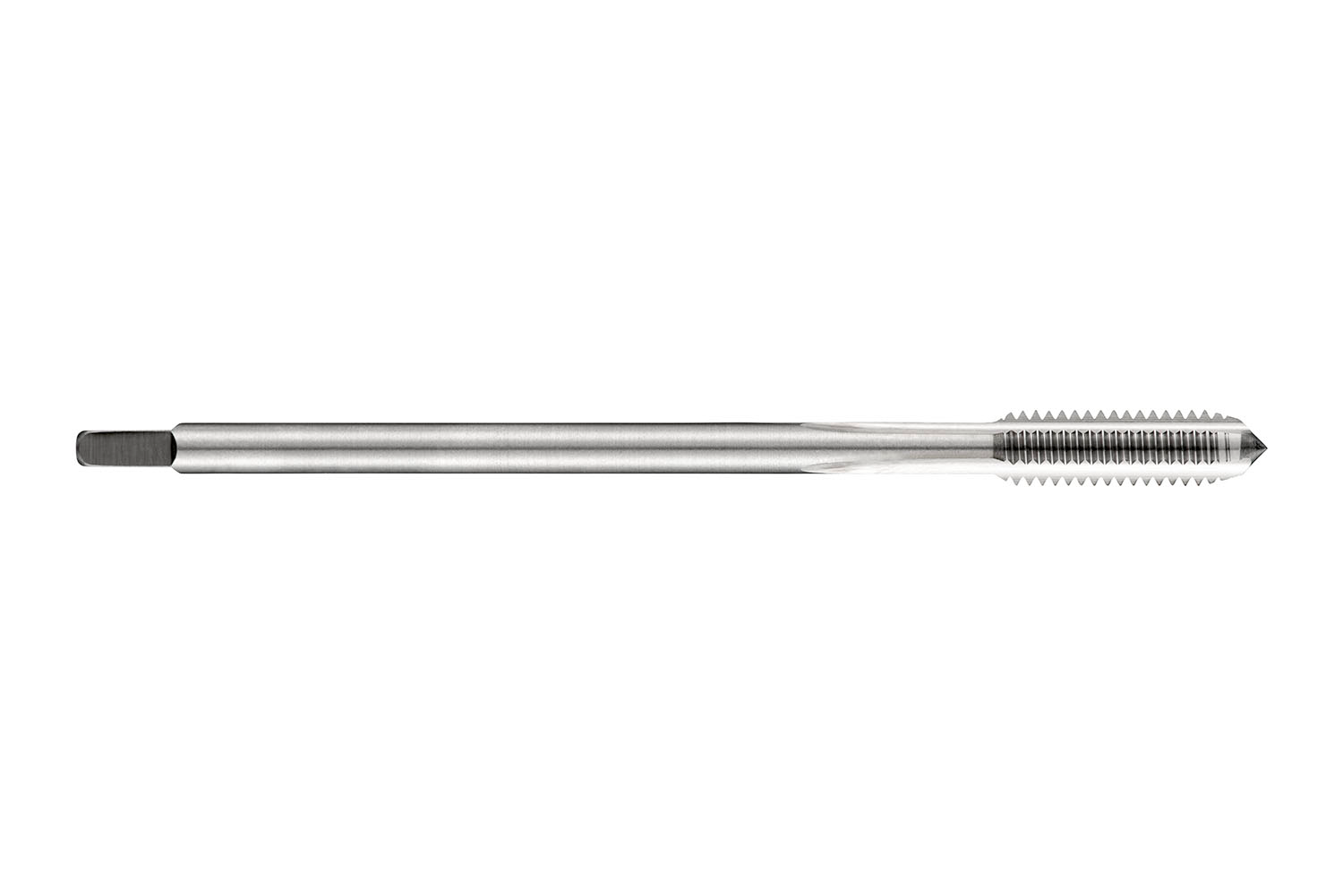

DORMER E250M48 HSS / HSCo DIN Taps

Description: Value
Product name: E250M48
Product number (SAP): 86015799
EAN number: 7320760087121
Thread diameter size (TDZ): 48
Thread pitch – millimeter (TP): 5 mm
Overall length – millimeter (OAL): 250 mm
Overall length – inch (OAL): 9.8425 inch
Threading length – millimeter (THL): 70 mm
Threading length – inch (THL): 2.7559 inch
Connection diameter – inch (DCON MS): 1.4173 inch
Connection diameter – millimeter (DCON MS): 36 mm
Flute count (NOF): 6
Clamping width – inch (WSC): 1.1417 inch
Clamping width – millimeter (WSC): 29 mm
Clamping Length – inch (LCS): 1.2598 inch
Clamping Length – millimeter (LSC): 32 mm
Premachined hole diameter – inch (PHD): 1.6929 inch
Premachined hole diameter – millimeter (PHD): 43 mm
Gross weight – grams: 2080
ISO: E250M48
Ordering code ANSI: E250M48
