DORMER E251M18 HSS / HSCo DIN Taps

Description

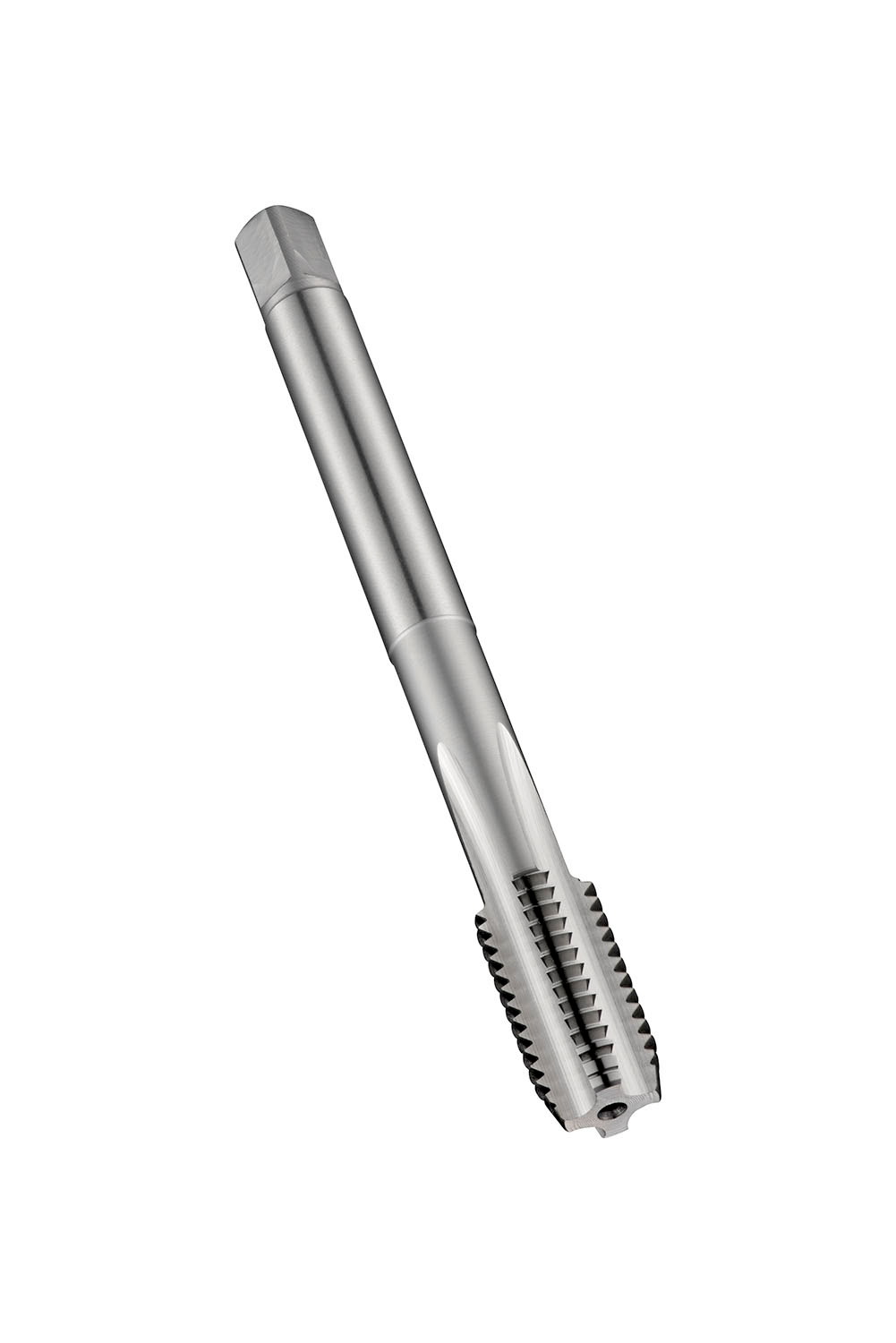

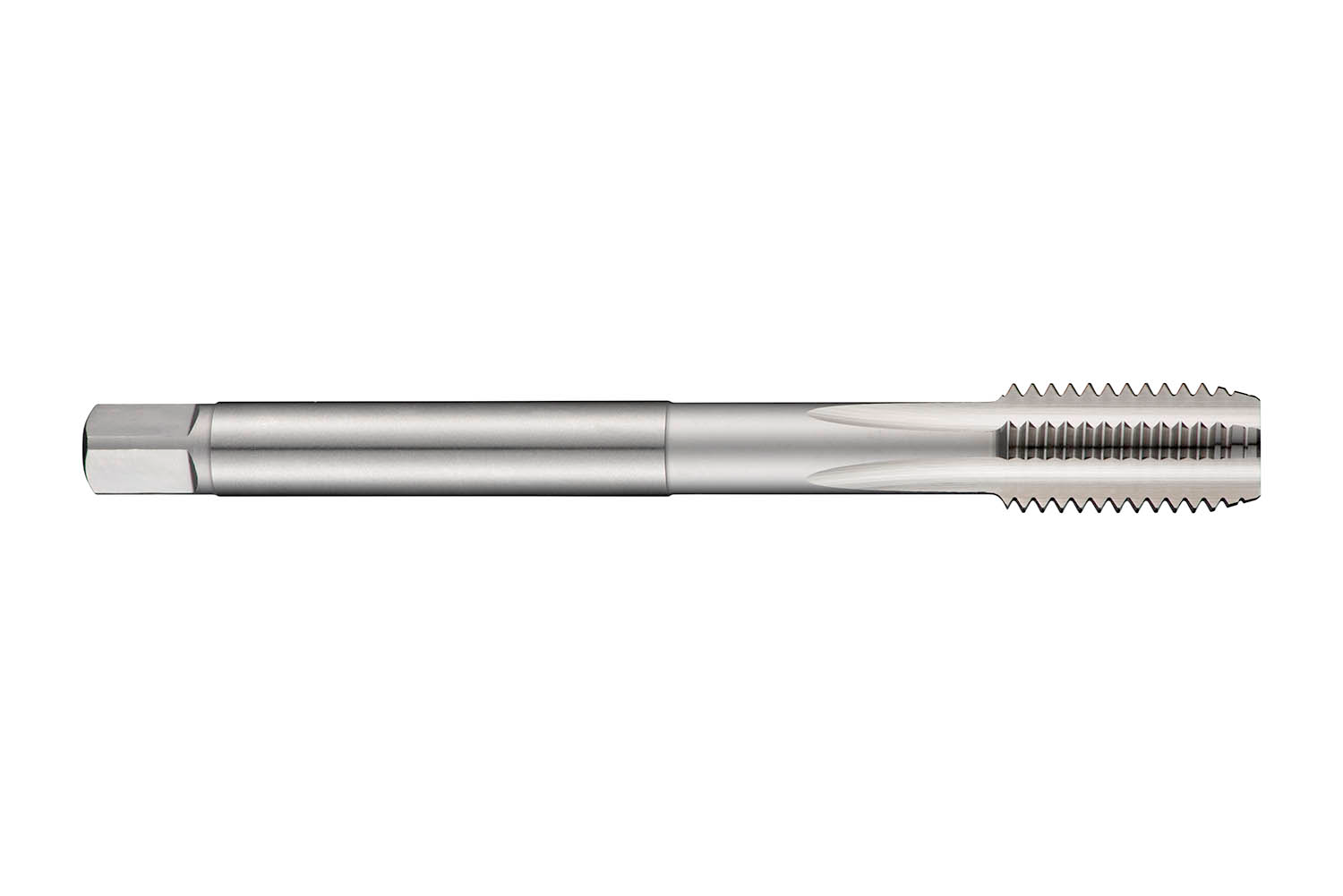

Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Additional information

Weight	0.2211 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E251M18 Product number (SAP): 86015812 EAN number: 7320760087220 Thread diameter size (TDZ): 18 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 125 mm Overall length – inch (OAL): 4.9213 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.1811 inch Connection diameter – inch (DCON MS): 0.5512 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4331 inch Clamping width – millimeter (WSC): 11 mm Clamping Length – inch (LCS): 0.5512 inch Clamping Length – millimeter (LSC): 14 mm Premachined hole diameter – inch (PHD): 0.6102 inch Premachined hole diameter – millimeter (PHD): 15.5 mm Gross weight – grams: 143.4 ISO: E251M18 Ordering code ANSI: E251M18

Need Technical Advice?

Description

Additional information

Brand

DORMER
