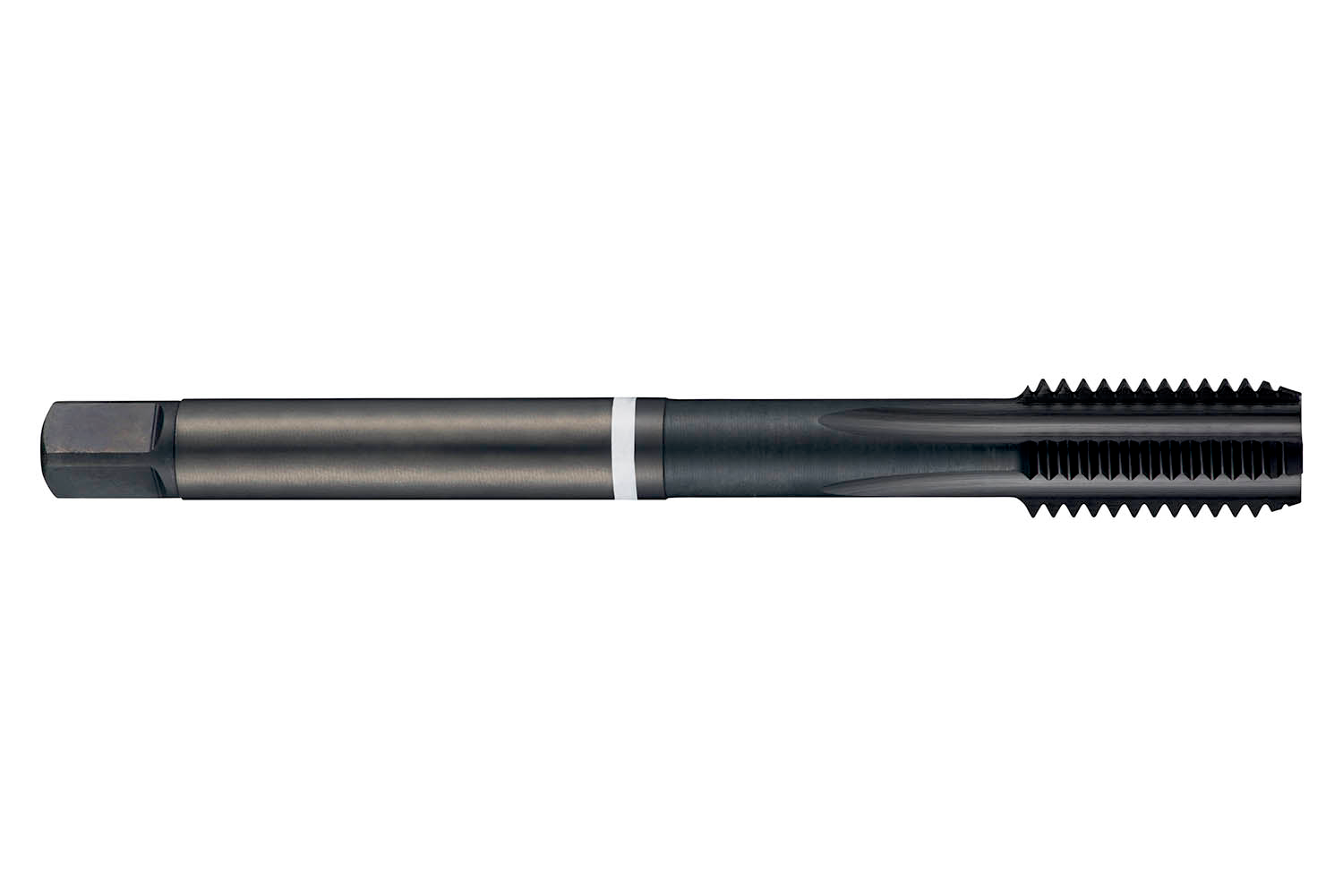

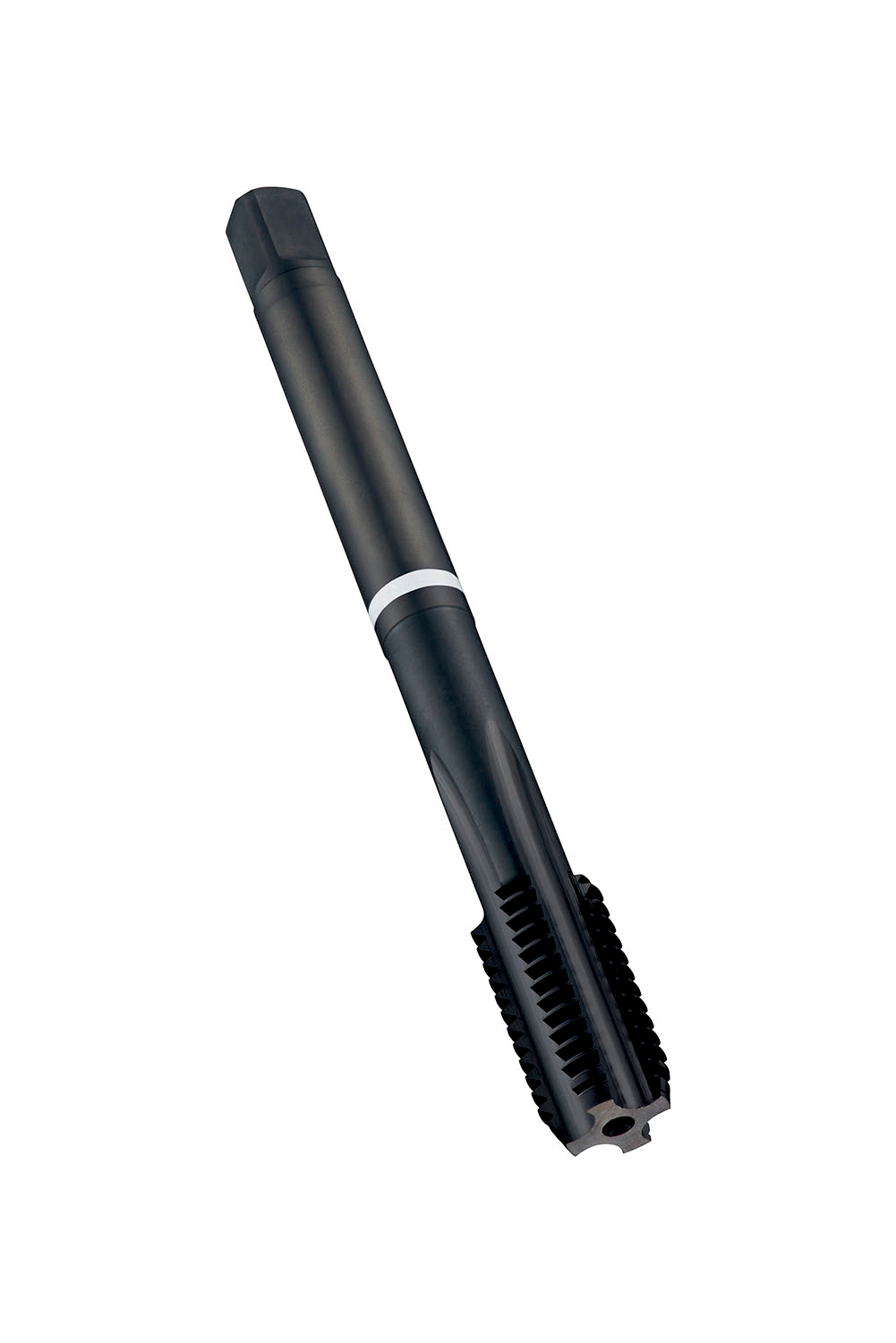

DORMER E252M14 HSS / HSCo DIN Taps

Description: Value
Product name: E252M14
Product number (SAP): 86015818
EAN number: 7320760087282
Product Line: SHARK
Thread diameter size (TDZ): 14
Thread pitch – millimeter (TP): 2 mm
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 25 mm
Threading length – inch (THL): 0.9843 inch
Connection diameter – inch (DCON MS): 0.4331 inch
Connection diameter – millimeter (DCON MS): 11 mm
Flute count (NOF): 4
Tolerance limit: D7
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.4724 inch
Premachined hole diameter – millimeter (PHD): 12 mm
Gross weight – grams: 76
ISO: E252M14
Ordering code ANSI: E252M14
