DORMER E258M22 HSS / HSCo DIN Taps

Description

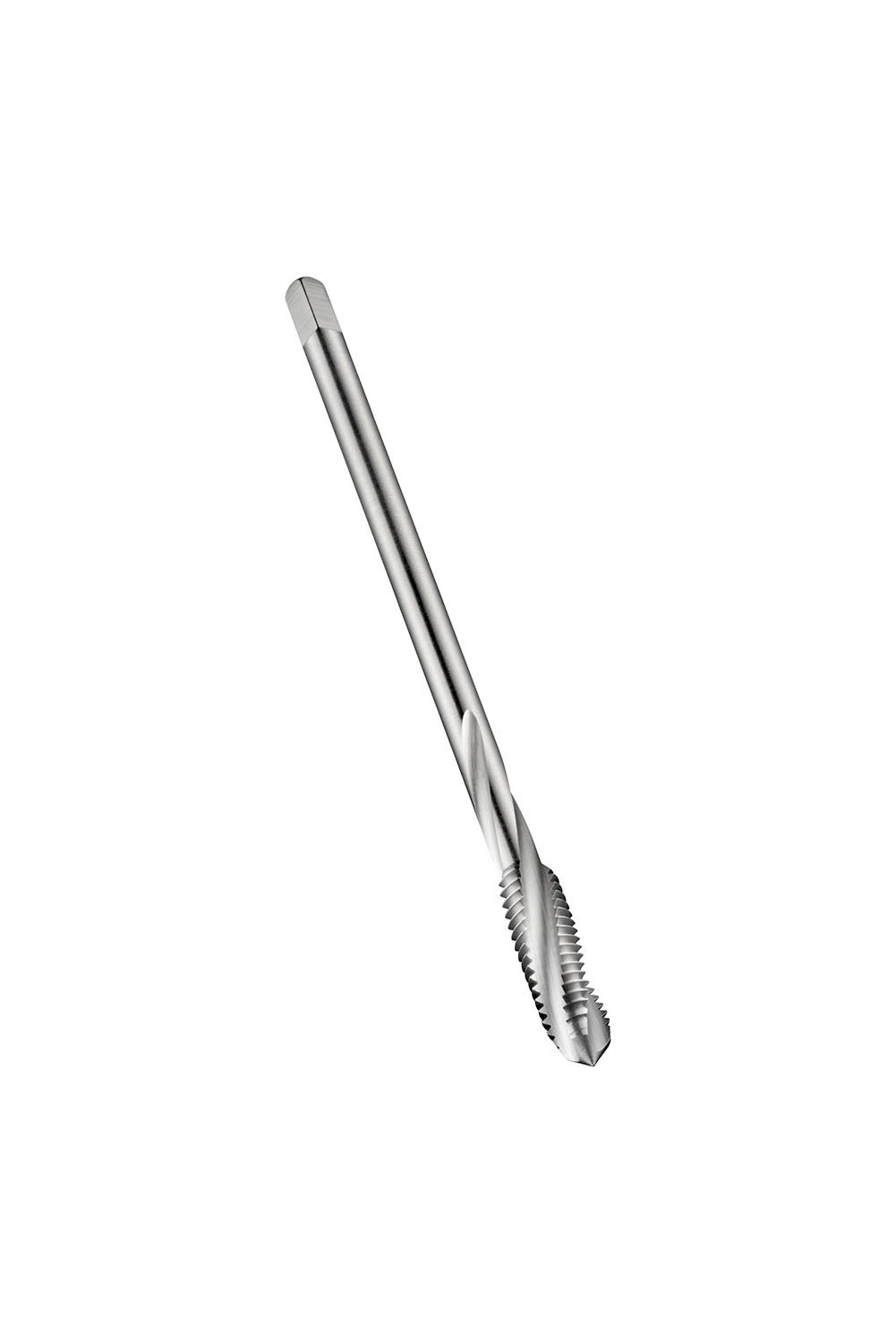

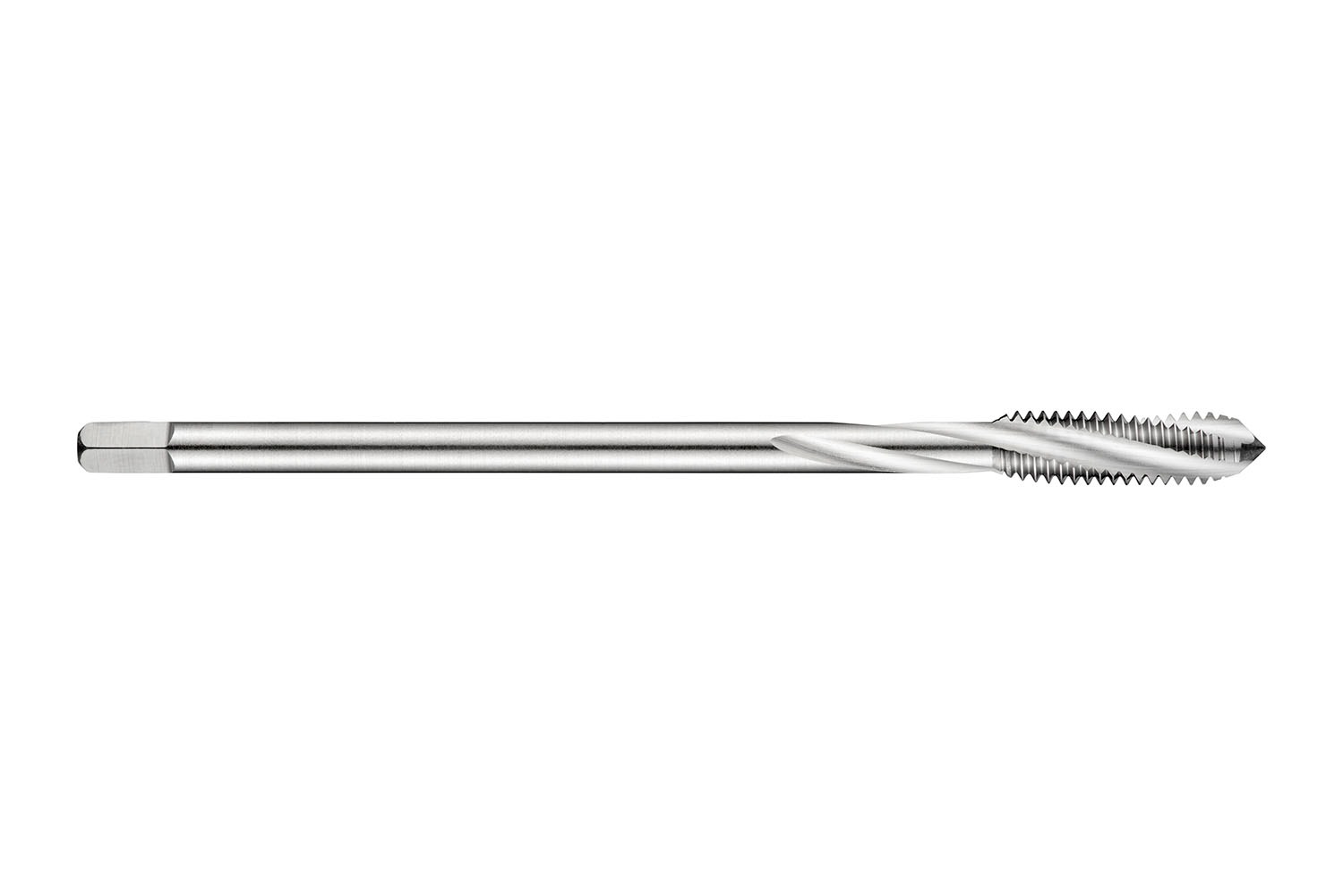

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish and 15° helix angle for 1.5xD blind hole threading in alloy steel

Additional information

Weight	0.2464 kg
Dimensions
barcode

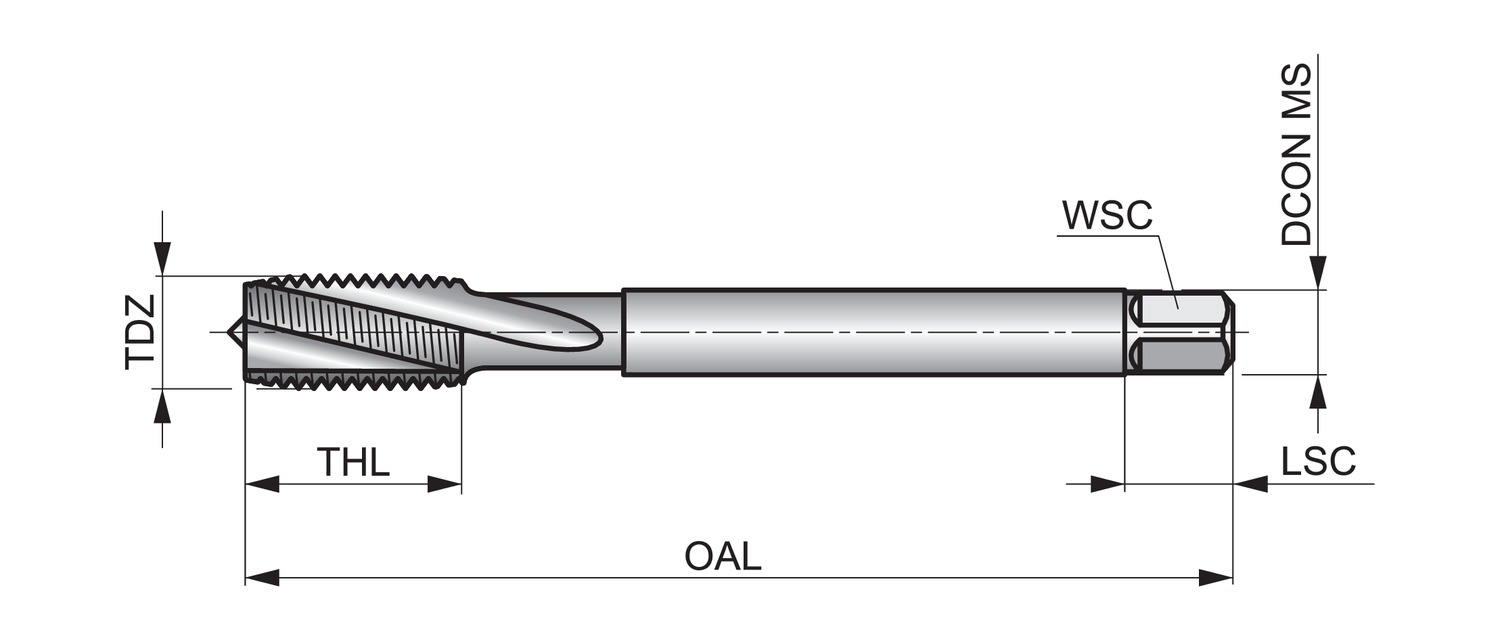

Additional Information	Description: Value Product name: E258M22 Product number (SAP): 86015850 EAN number: 7320760087619 Thread diameter size (TDZ): 22 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 140 mm Overall length – inch (OAL): 5.5118 inch Threading length – millimeter (THL): 34 mm Threading length – inch (THL): 1.3386 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Clamping Length – inch (LCS): 0.6693 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.7677 inch Premachined hole diameter – millimeter (PHD): 19.5 mm Gross weight – grams: 253.1 ISO: E258M22 Ordering code ANSI: E258M22

Need Technical Advice?

Description

Additional information

Brand

DORMER
