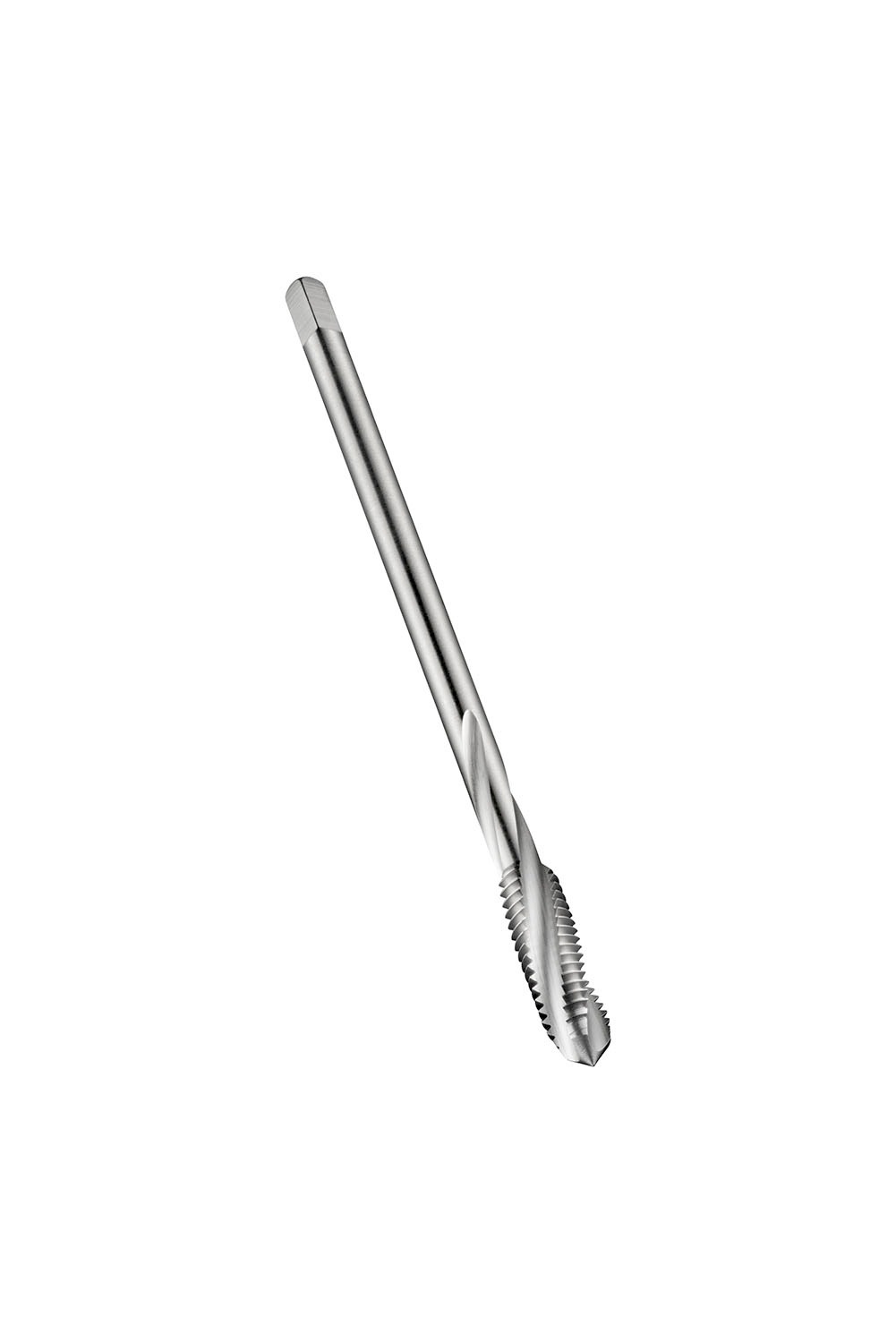

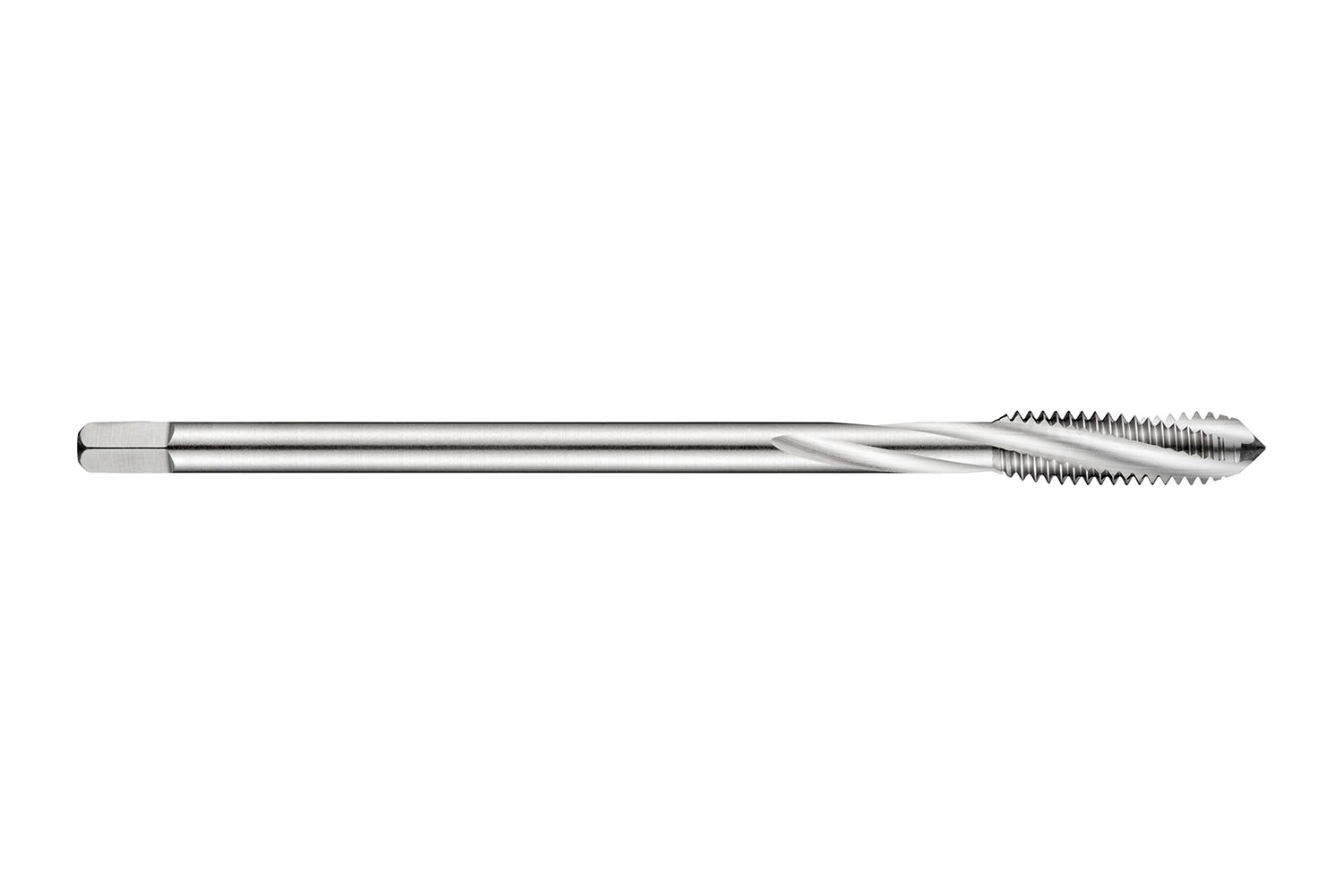

DORMER E258M27 HSS / HSCo DIN Taps

Description: Value
Product name: E258M27
Product number (SAP): 86015852
EAN number: 7320760087633

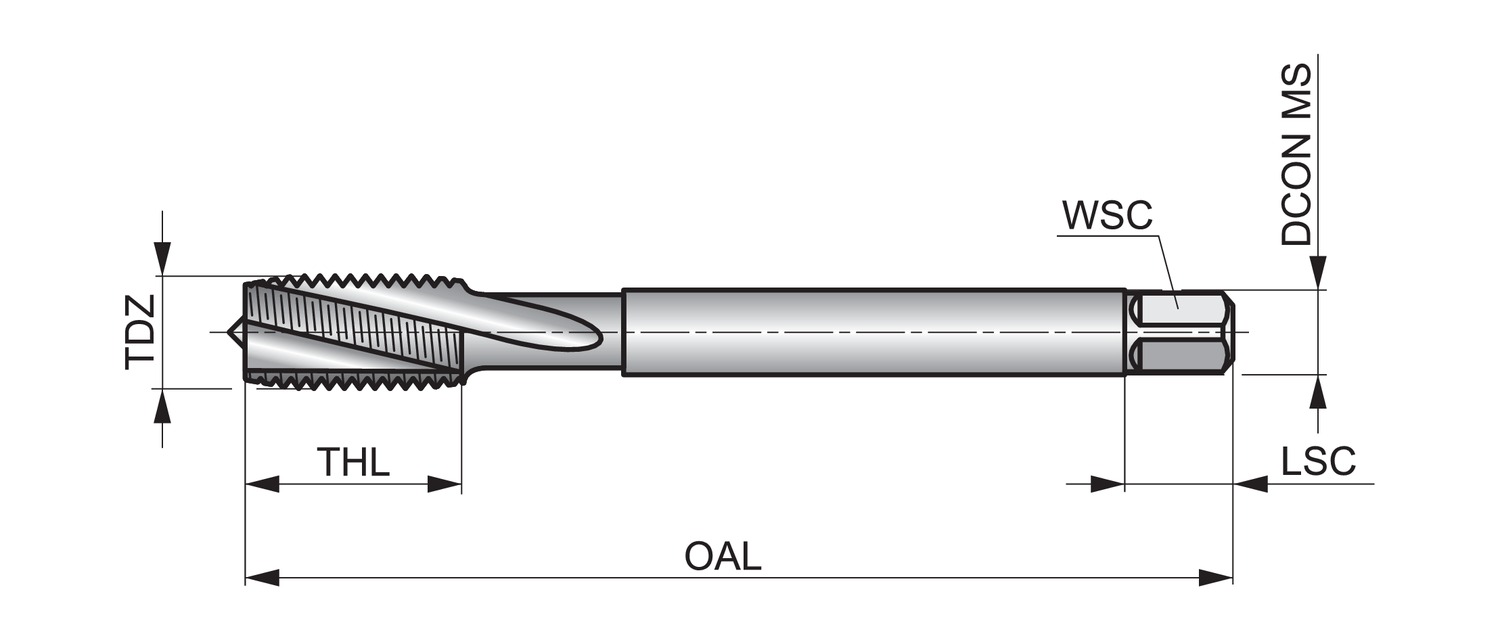

Thread diameter size (TDZ): 27
Thread pitch – millimeter (TP): 3 mm
Overall length – millimeter (OAL): 160 mm
Overall length – inch (OAL): 6.2992 inch
Threading length – millimeter (THL): 38 mm
Threading length – inch (THL): 1.4961 inch
Connection diameter – inch (DCON MS): 0.7874 inch
Connection diameter – millimeter (DCON MS): 20 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.6299 inch
Clamping width – millimeter (WSC): 16 mm
Clamping Length – inch (LCS): 0.748 inch
Clamping Length – millimeter (LSC): 19 mm
Premachined hole diameter – inch (PHD): 0.9449 inch
Premachined hole diameter – millimeter (PHD): 24 mm
Gross weight – grams: 393.8
ISO: E258M27
Ordering code ANSI: E258M27
