DORMER E258M30 HSS / HSCo DIN Taps

Description

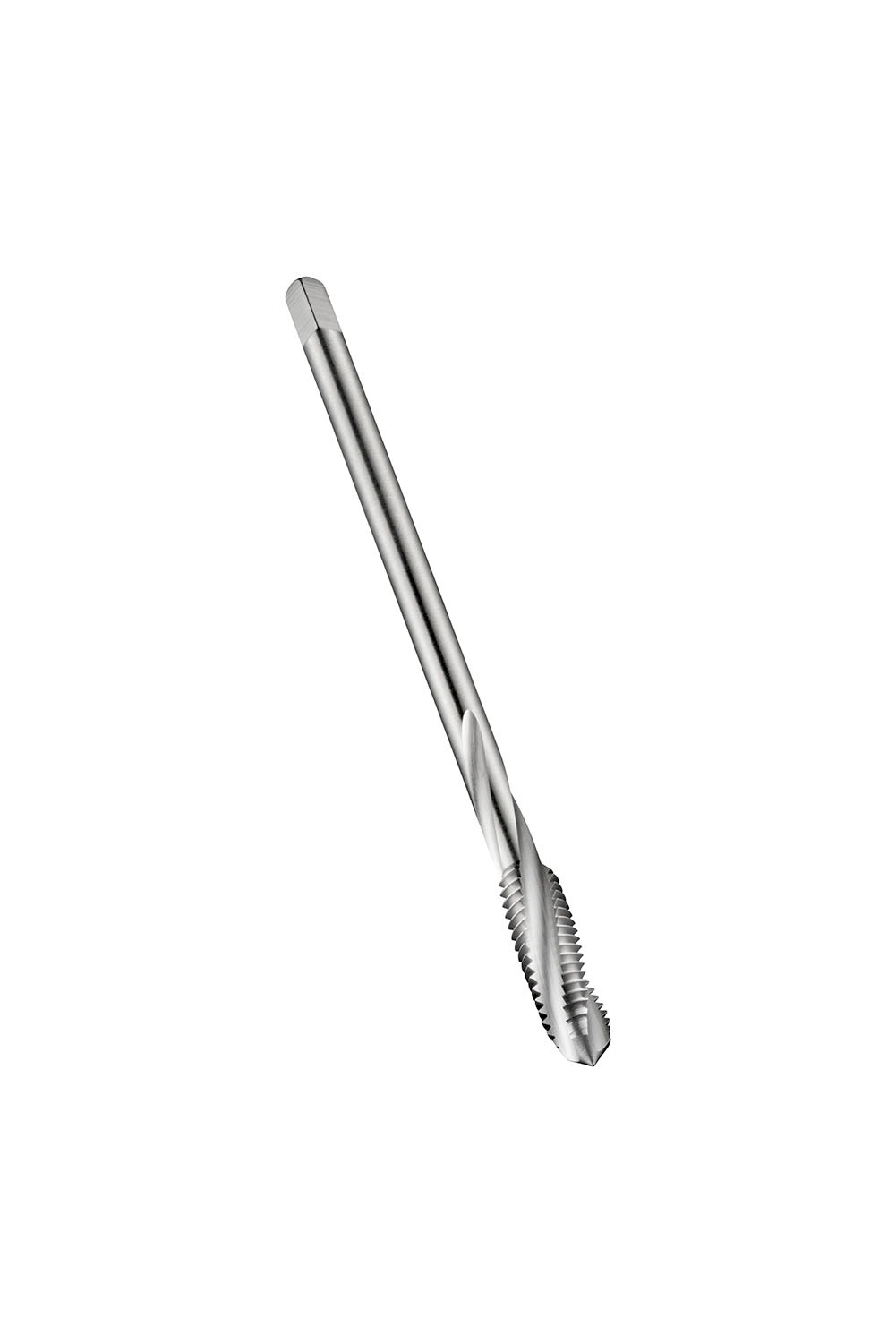

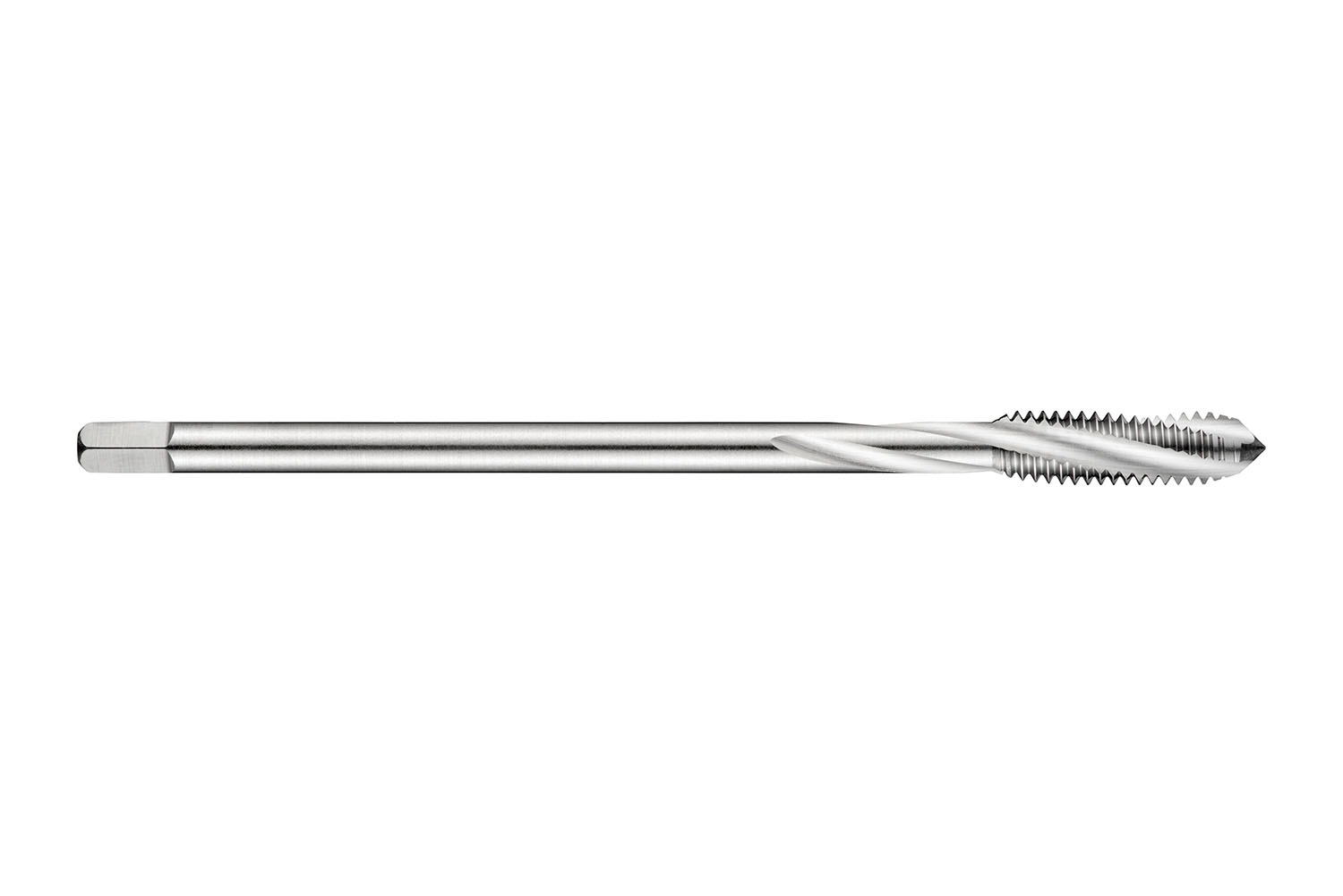

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with bright finish and 15° helix angle for 1.5xD blind hole threading in alloy steel

Additional information

Weight	0.3905 kg
Dimensions
barcode

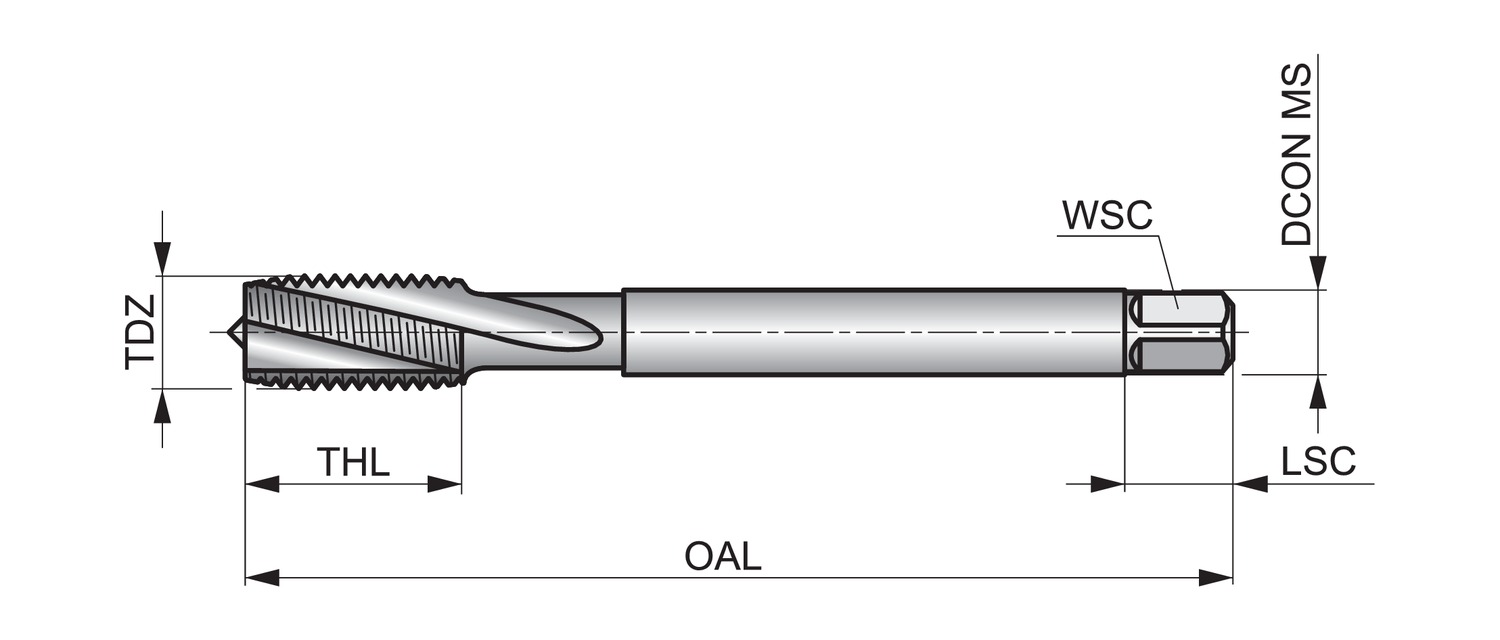

Additional Information	Description: Value Product name: E258M30 Product number (SAP): 86015853 EAN number: 7320760087640 Thread diameter size (TDZ): 30 Thread pitch – millimeter (TP): 3.5 mm Overall length – millimeter (OAL): 180 mm Overall length – inch (OAL): 7.0866 inch Threading length – millimeter (THL): 45 mm Threading length – inch (THL): 1.7717 inch Connection diameter – inch (DCON MS): 0.8661 inch Connection diameter – millimeter (DCON MS): 22 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.7087 inch Clamping width – millimeter (WSC): 18 mm Clamping Length – inch (LCS): 0.8268 inch Clamping Length – millimeter (LSC): 21 mm Premachined hole diameter – inch (PHD): 1.0433 inch Premachined hole diameter – millimeter (PHD): 26.5 mm Gross weight – grams: 531.6 ISO: E258M30 Ordering code ANSI: E258M30

Need Technical Advice?

Description

Additional information

Brand

DORMER
