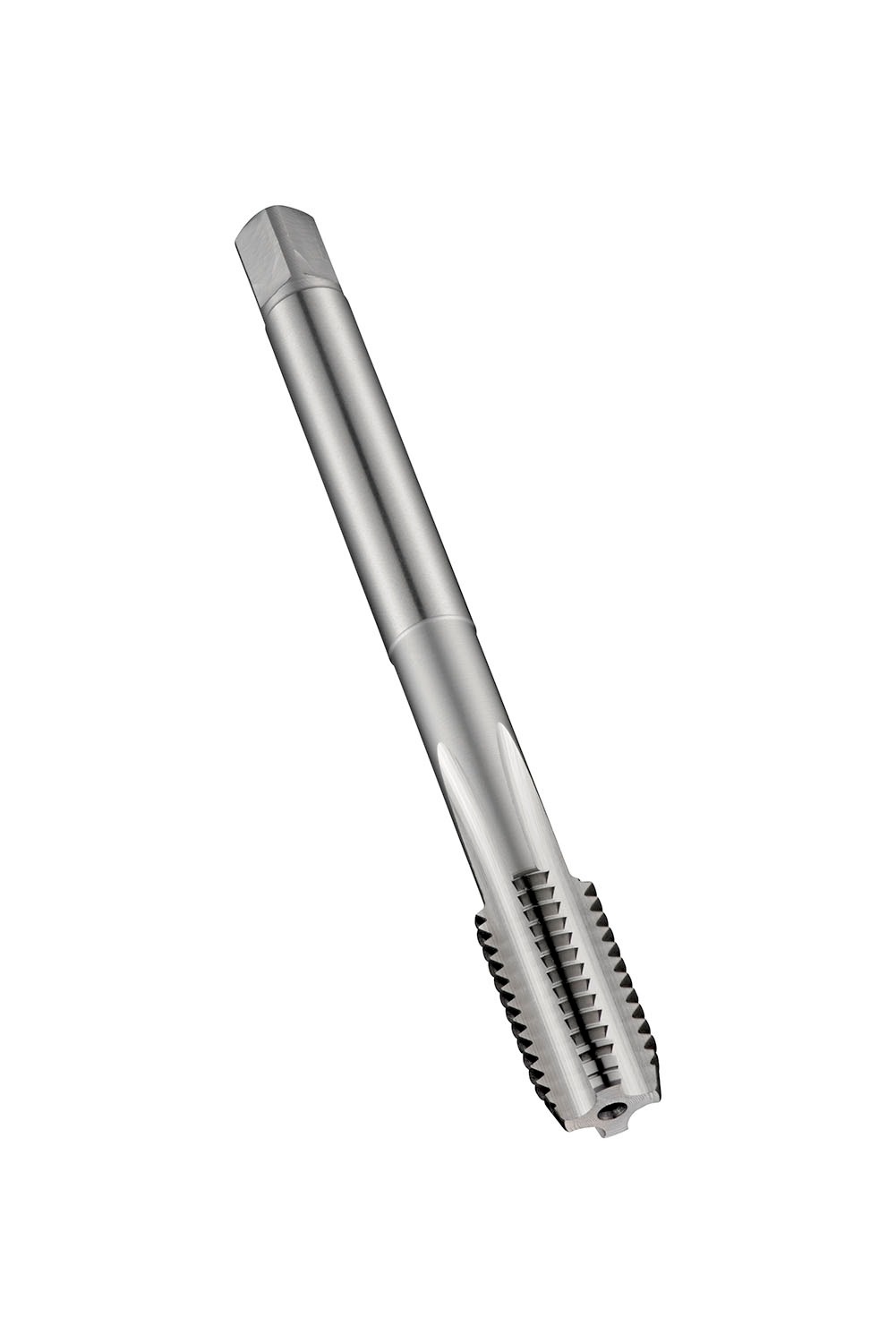

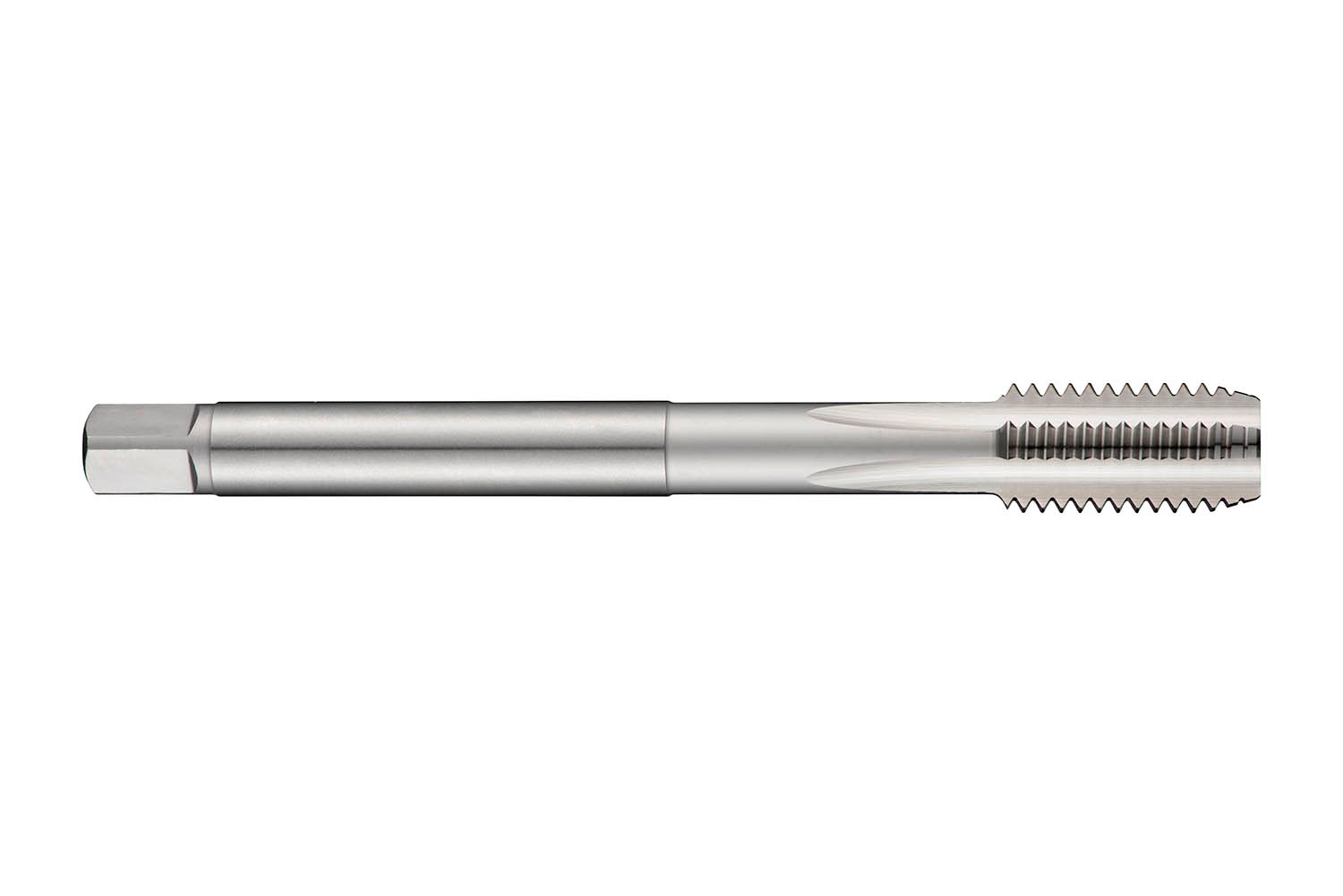

DORMER E2751.1/4 HSS / HSCo DIN Taps

Description: Value
Product name: E2751.1/4
Product number (SAP): 86015961
EAN number: 7320760089361
Thread diameter size (TDZ): 1.1/4
Thread diameter – millimeter (TD): 31.75 mm
Threads per inch (TPI): 7
Overall length – millimeter (OAL): 180 mm
Overall length – inch (OAL): 7.0866 inch
Threading length – millimeter (THL): 50 mm
Threading length – inch (THL): 1.9685 inch
Connection diameter – inch (DCON MS): 0.9843 inch
Connection diameter – millimeter (DCON MS): 25 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7874 inch
Clamping width – millimeter (WSC): 20 mm
Clamping Length – inch (LCS): 0.9055 inch
Clamping Length – millimeter (LSC): 23 mm
Premachined hole diameter – inch (PHD): 1.1024 inch
Premachined hole diameter – millimeter (PHD): 28 mm
Gross weight – grams: 631.1
ISO: E2751.1/4
Ordering code ANSI: E2751.1/4
