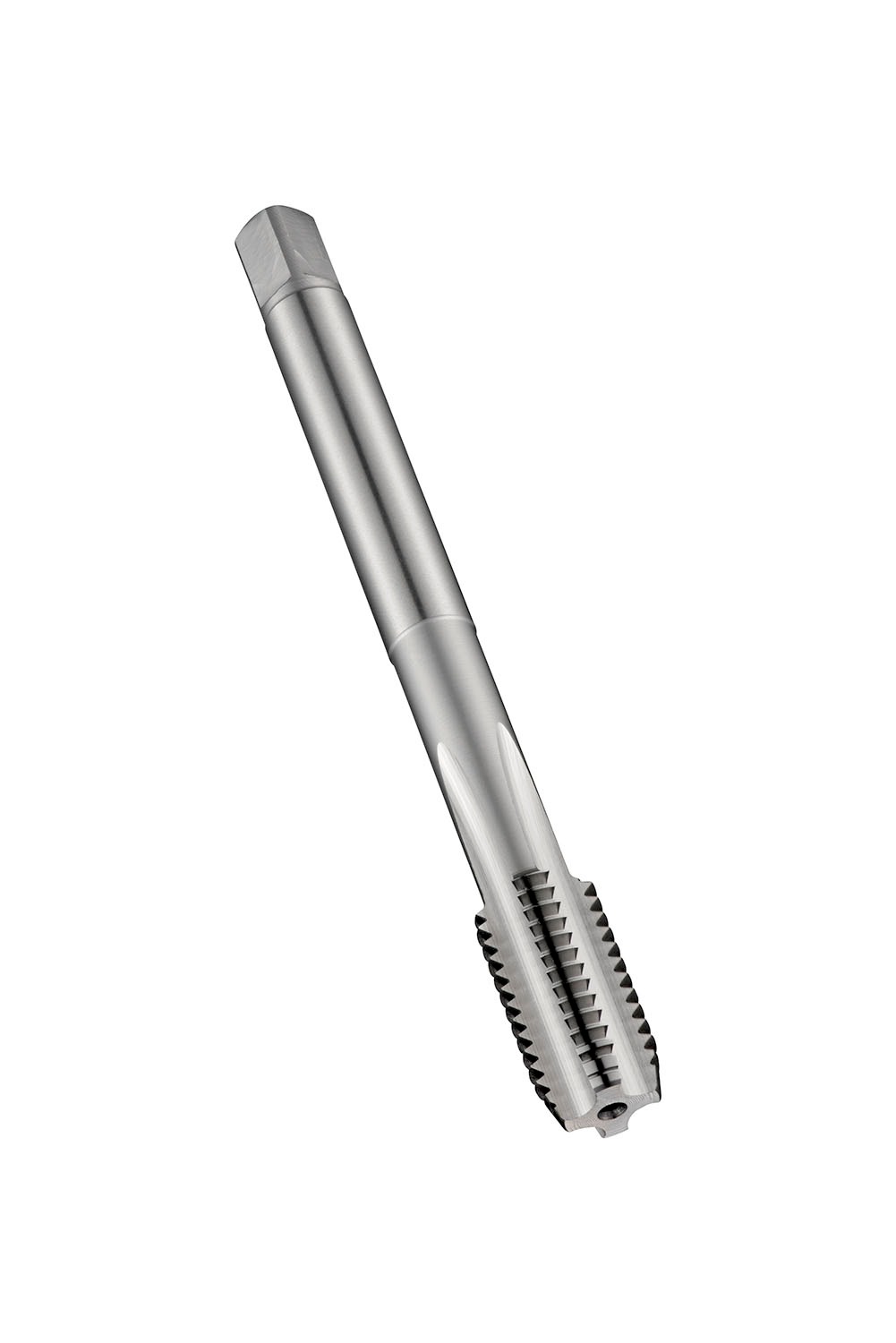

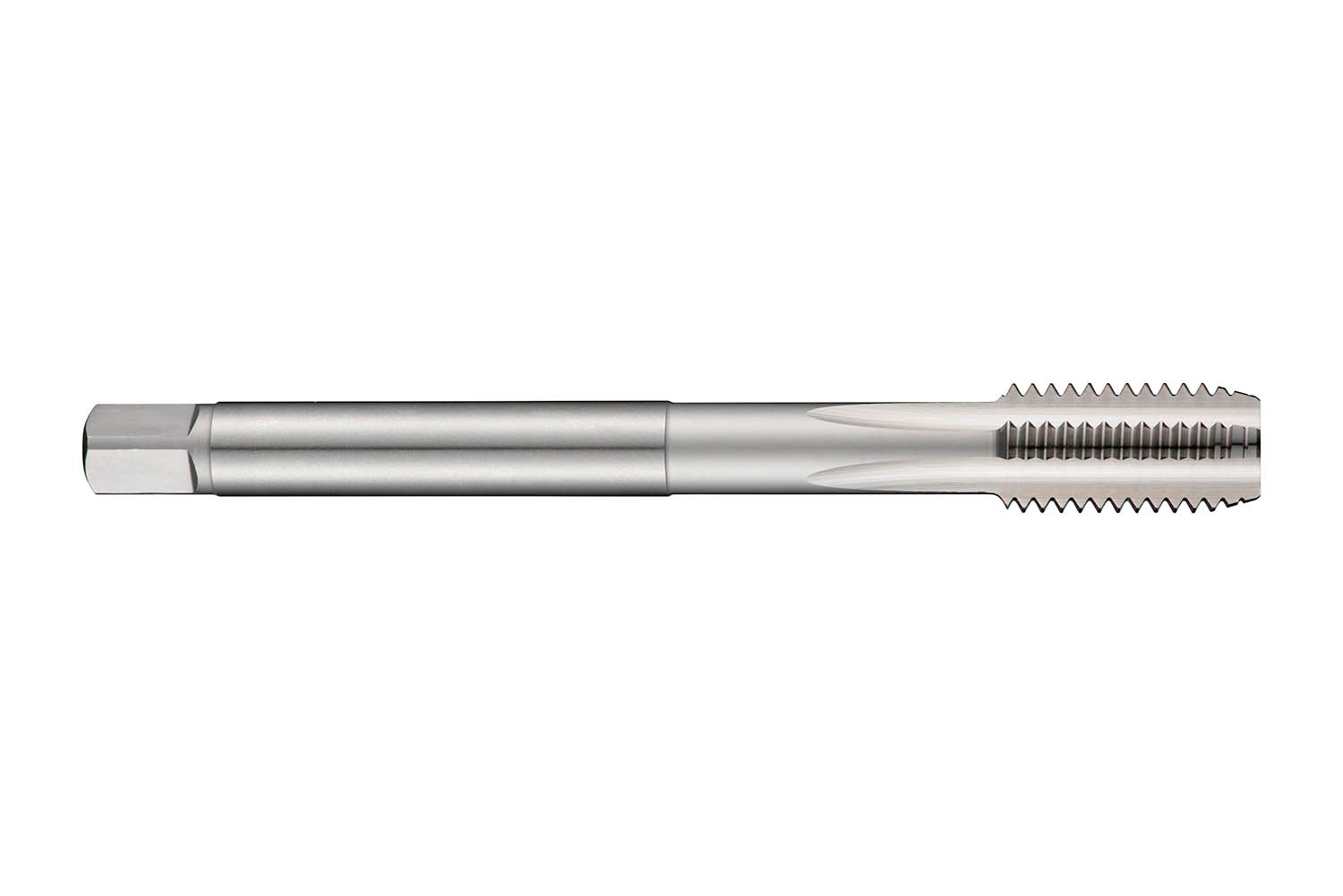

DORMER E2751.1/8 HSS / HSCo DIN Taps

Description: Value
Product name: E2751.1/8
Product number (SAP): 86015962
EAN number: 7320760089378
Thread diameter size (TDZ): 1.1/8
Thread diameter – millimeter (TD): 28.58 mm
Threads per inch (TPI): 7
Overall length – millimeter (OAL): 180 mm
Overall length – inch (OAL): 7.0866 inch
Threading length – millimeter (THL): 45 mm
Threading length – inch (THL): 1.7717 inch
Connection diameter – inch (DCON MS): 0.8661 inch
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Clamping Length – inch (LCS): 0.8268 inch
Clamping Length – millimeter (LSC): 21 mm
Premachined hole diameter – inch (PHD): 0.9843 inch
Premachined hole diameter – millimeter (PHD): 25 mm
Gross weight – grams: 505.6
ISO: E2751.1/8
Ordering code ANSI: E2751.1/8
