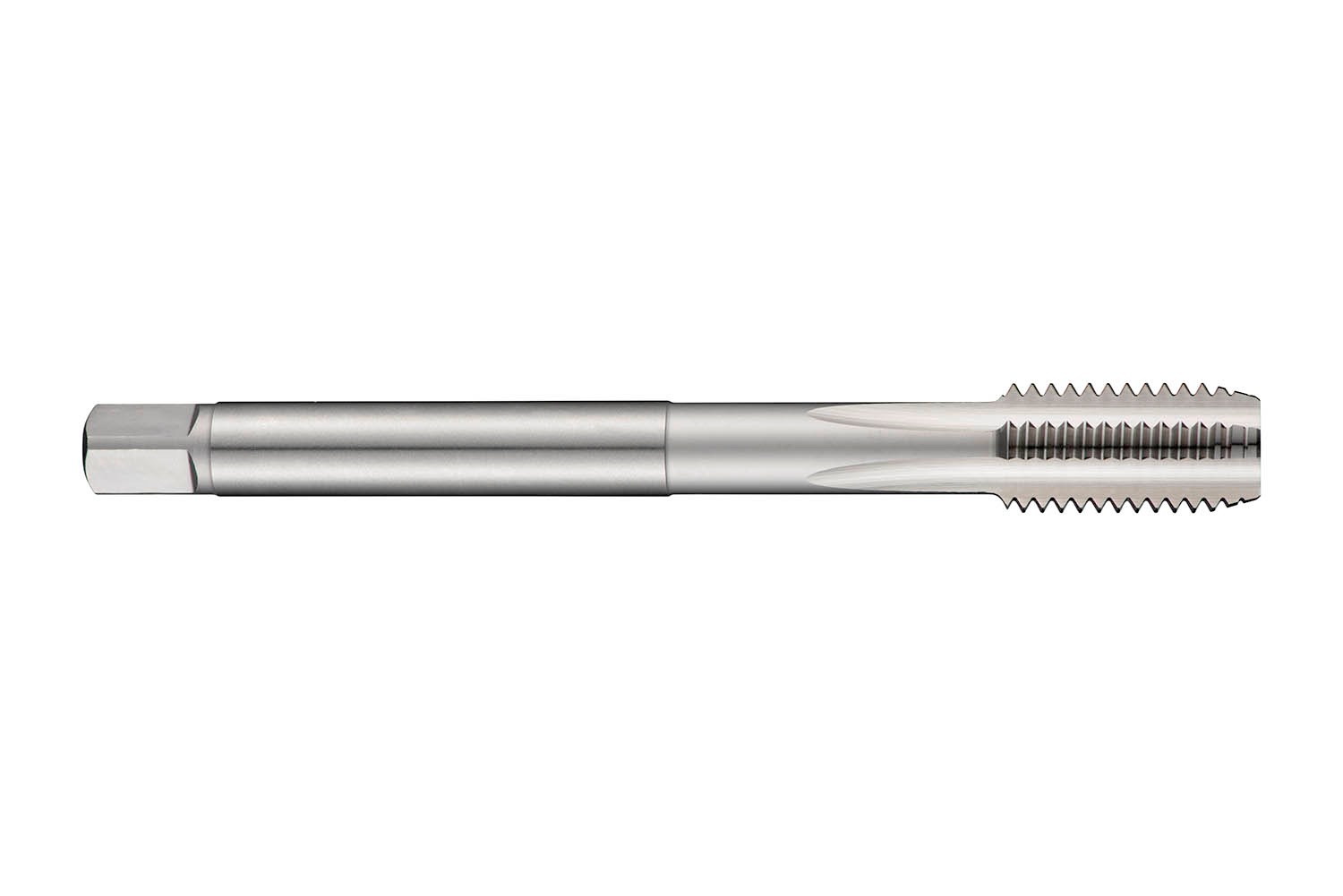

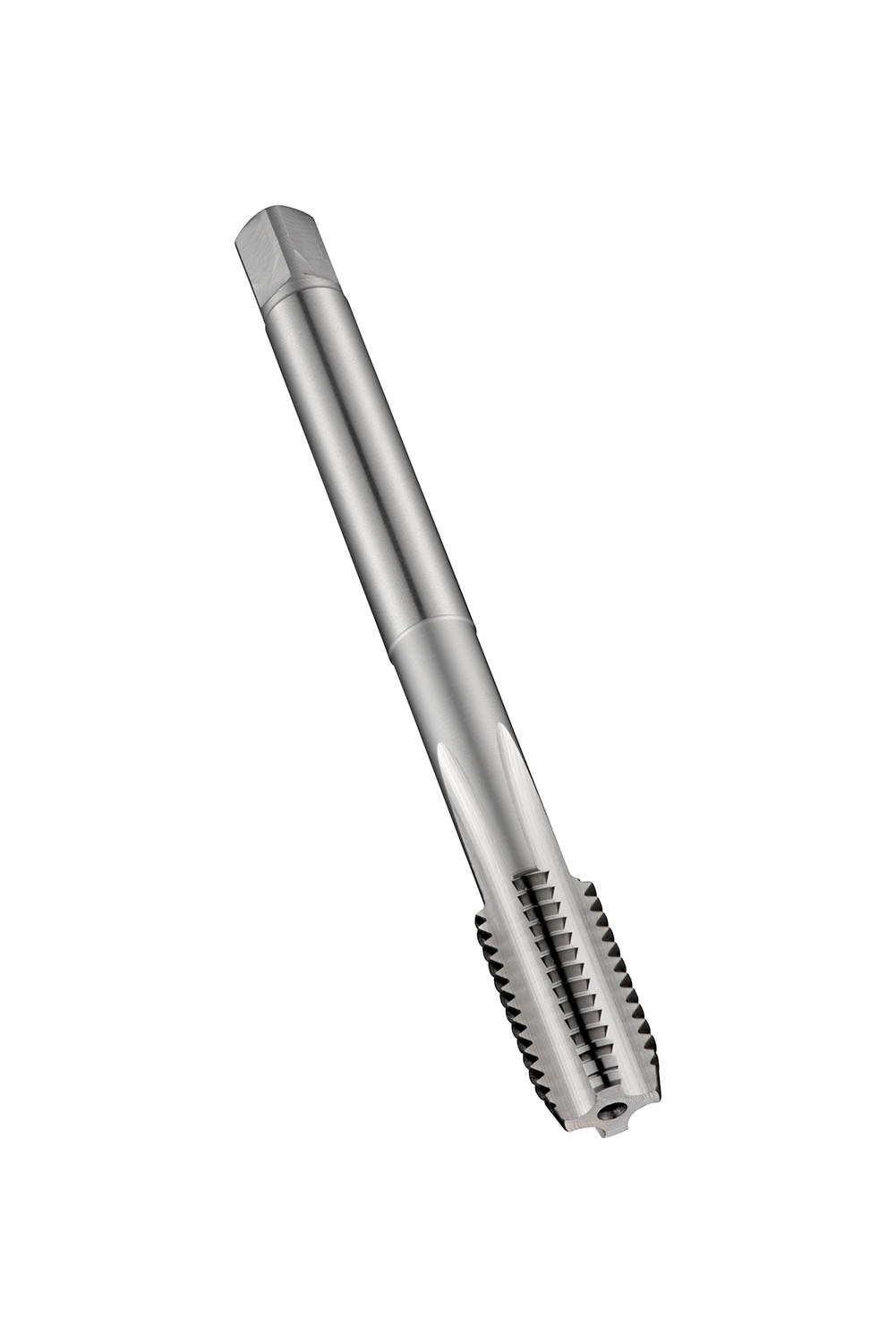

DORMER E2755/16 HSS / HSCo DIN Taps

Description: Value
Product name: E2755/16
Product number (SAP): 86015966
EAN number: 7320760089422
Thread diameter size (TDZ): 5/16
Thread diameter – millimeter (TD): 7.94 mm
Threads per inch (TPI): 18
Overall length – millimeter (OAL): 90 mm
Overall length – inch (OAL): 3.5433 inch
Threading length – millimeter (THL): 18 mm
Threading length – inch (THL): 0.7087 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2598 inch
Premachined hole diameter – millimeter (PHD): 6.6 mm
Gross weight – grams: 24.7
ISO: E2755/16
Ordering code ANSI: E2755/16
