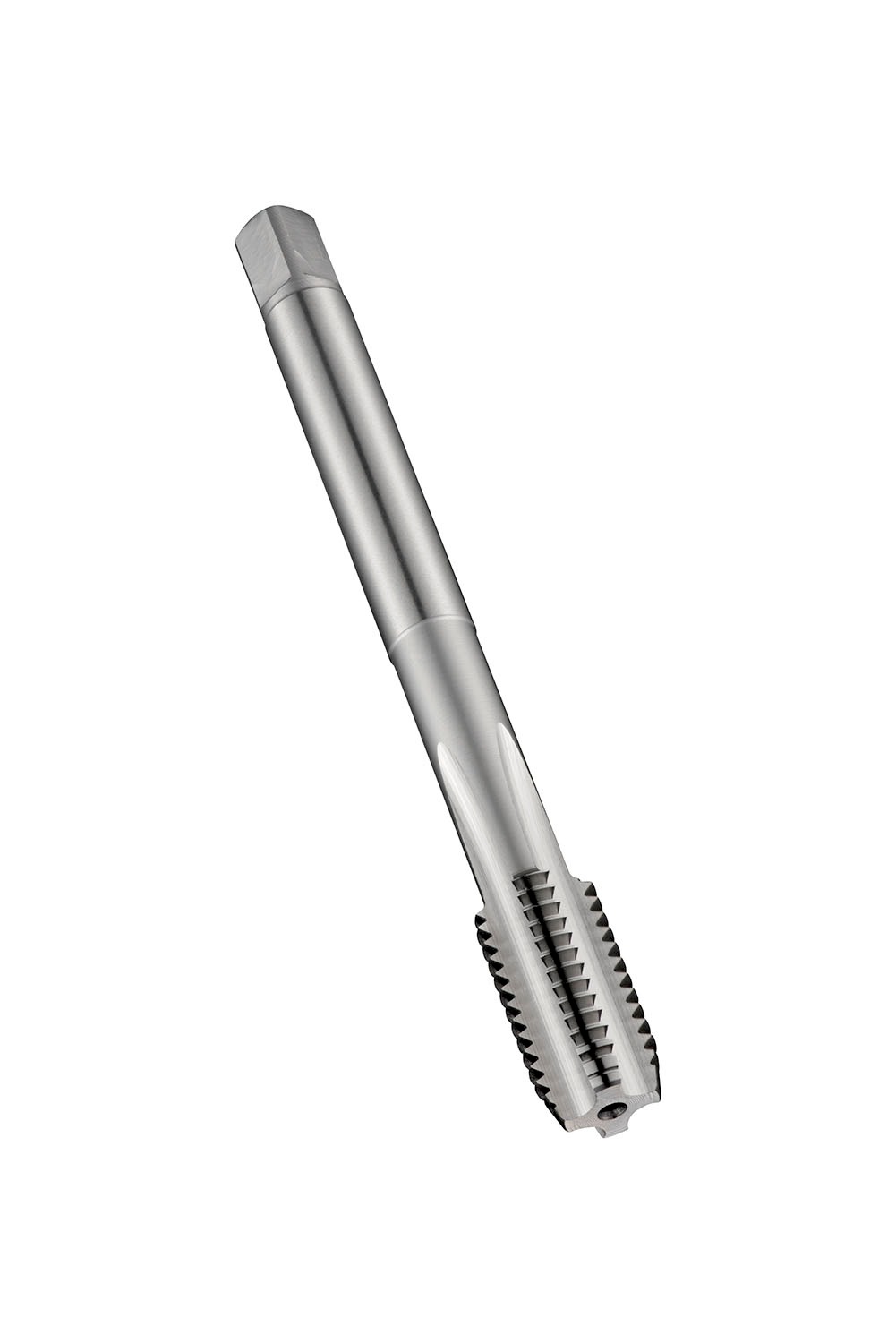

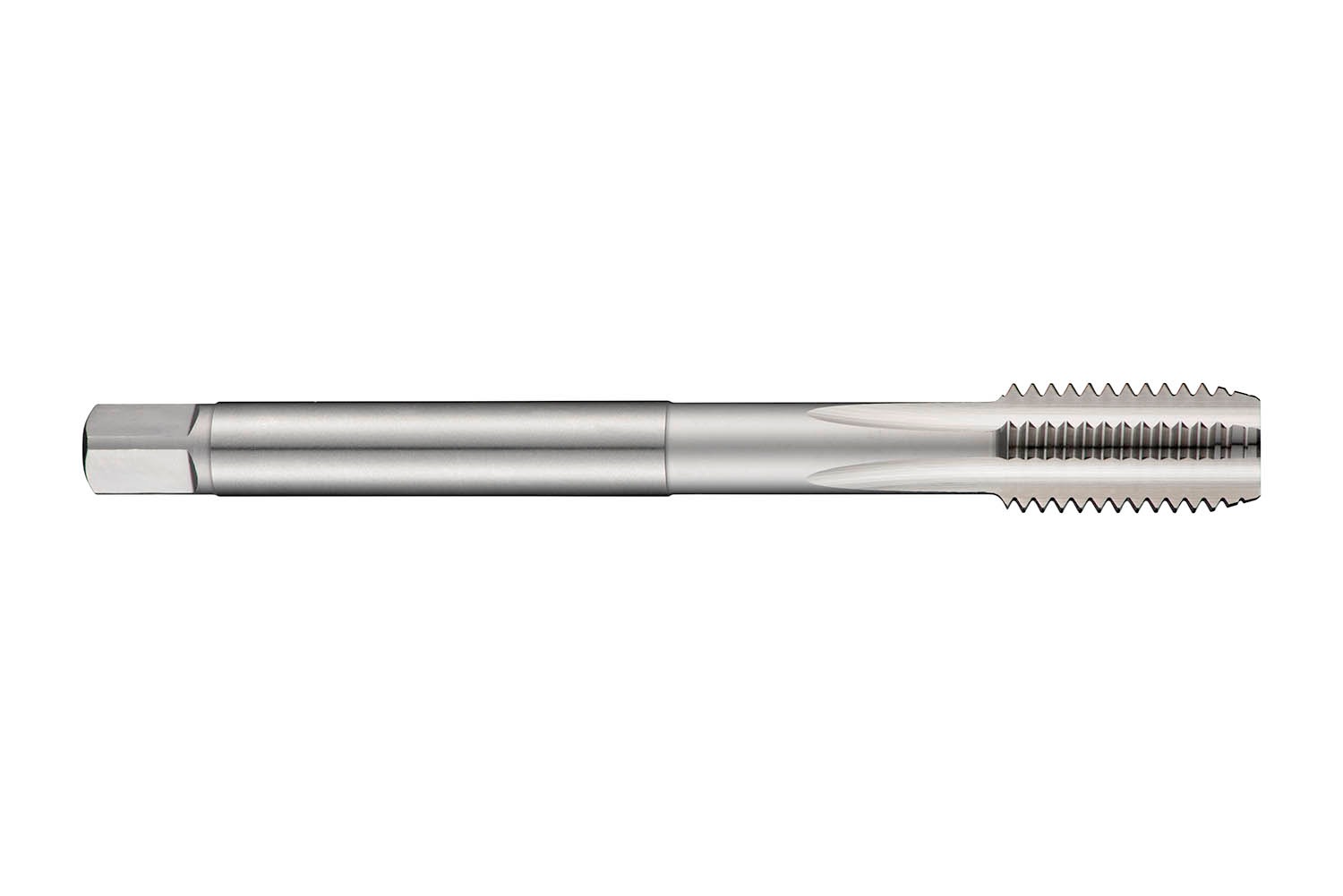

DORMER E2757/8 HSS / HSCo DIN Taps

Description: Value
Product name: E2757/8
Product number (SAP): 86015969
EAN number: 7320760089453
Thread diameter size (TDZ): 7/8
Thread diameter – millimeter (TD): 22.23 mm
Threads per inch (TPI): 9
Overall length – millimeter (OAL): 140 mm
Overall length – inch (OAL): 5.5118 inch
Threading length – millimeter (THL): 34 mm
Threading length – inch (THL): 1.3386 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.5709 inch
Clamping width – millimeter (WSC): 14.5 mm
Clamping Length – inch (LCS): 0.6693 inch
Clamping Length – millimeter (LSC): 17 mm
Premachined hole diameter – inch (PHD): 0.7677 inch
Premachined hole diameter – millimeter (PHD): 19.5 mm
Gross weight – grams: 256.7
ISO: E2757/8
Ordering code ANSI: E2757/8
