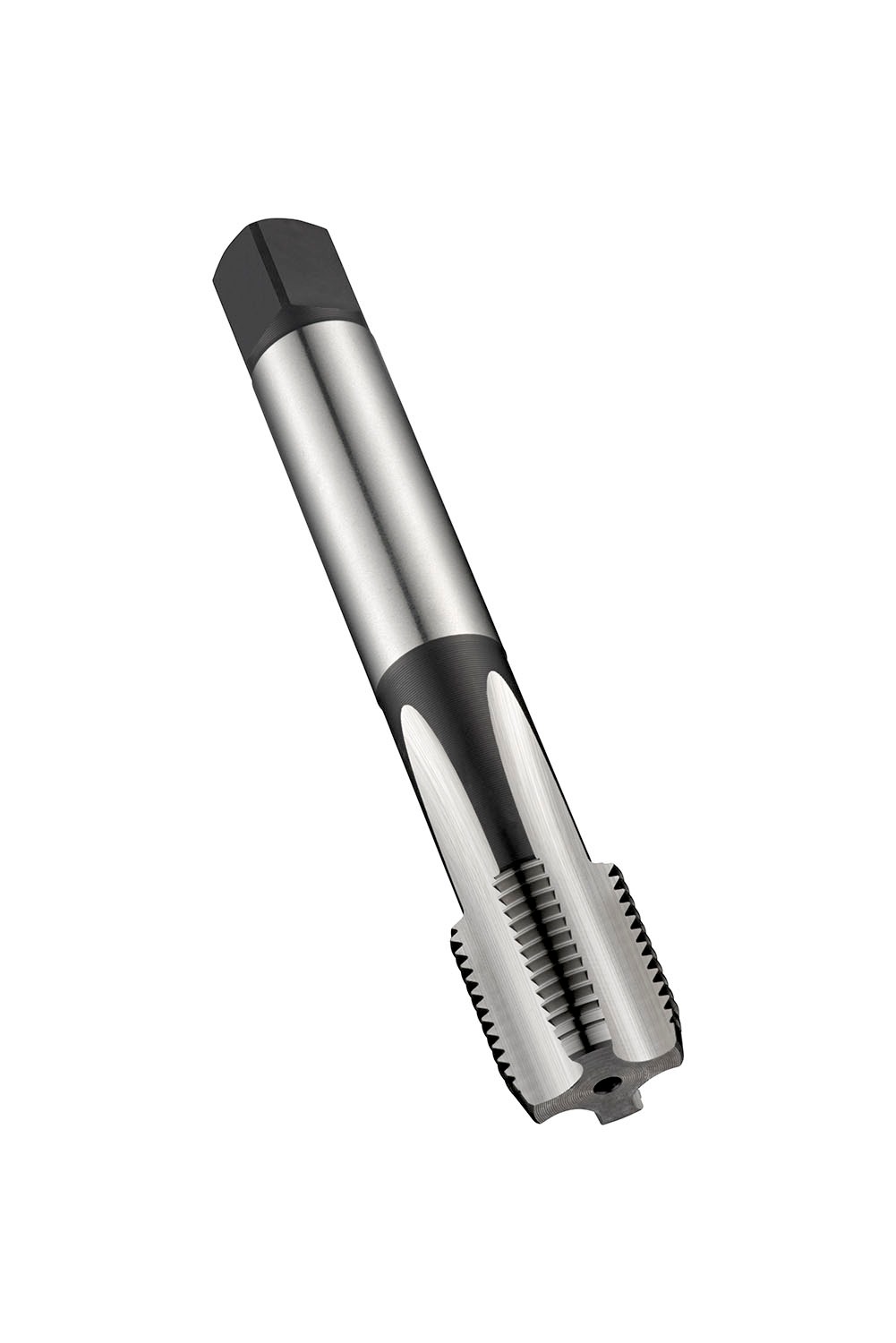

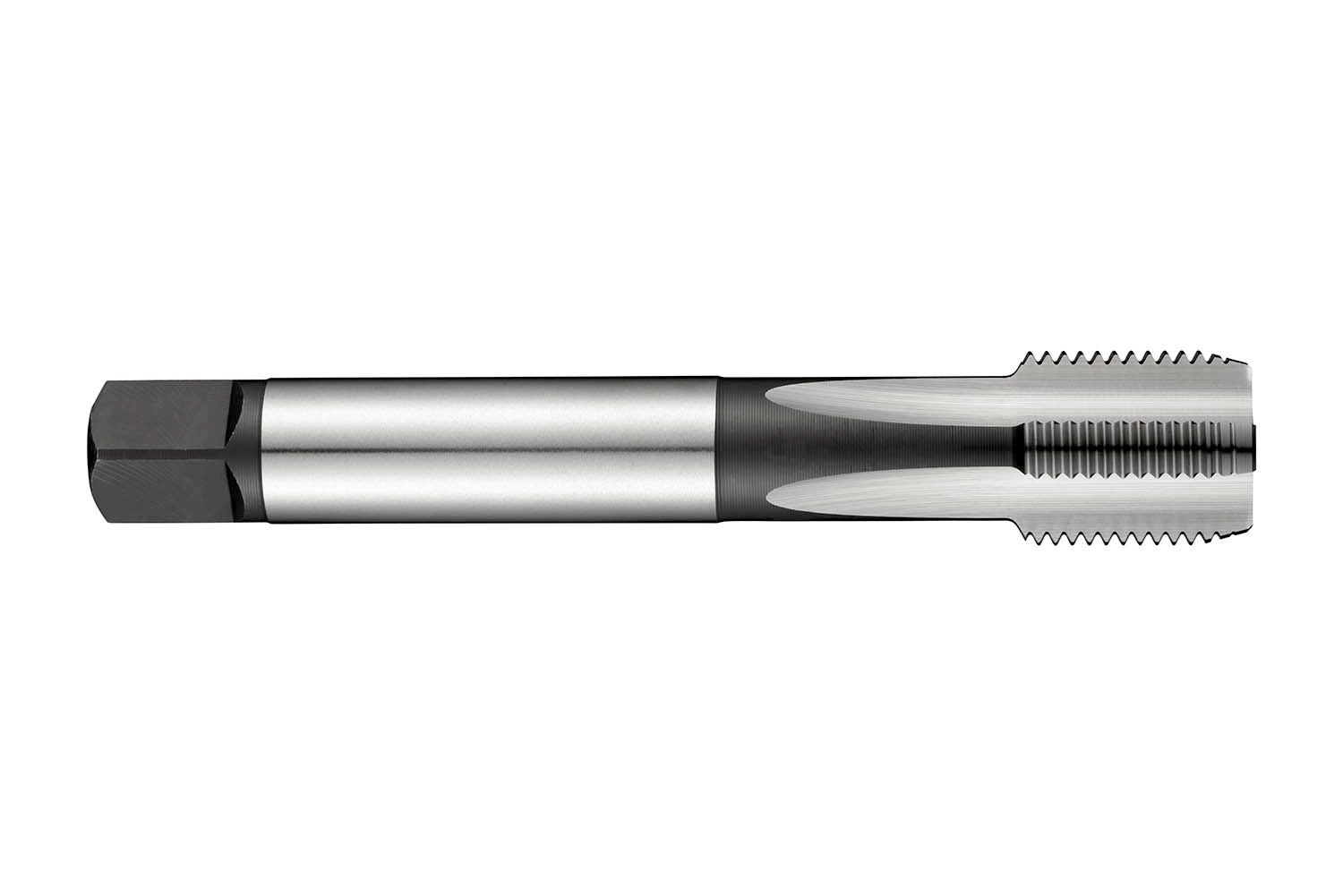

DORMER E2821.1/4 HSS / HSCo DIN Taps

Description: Value
Product name: E2821.1/4
Product number (SAP): 86015986
EAN number: 7320760089965

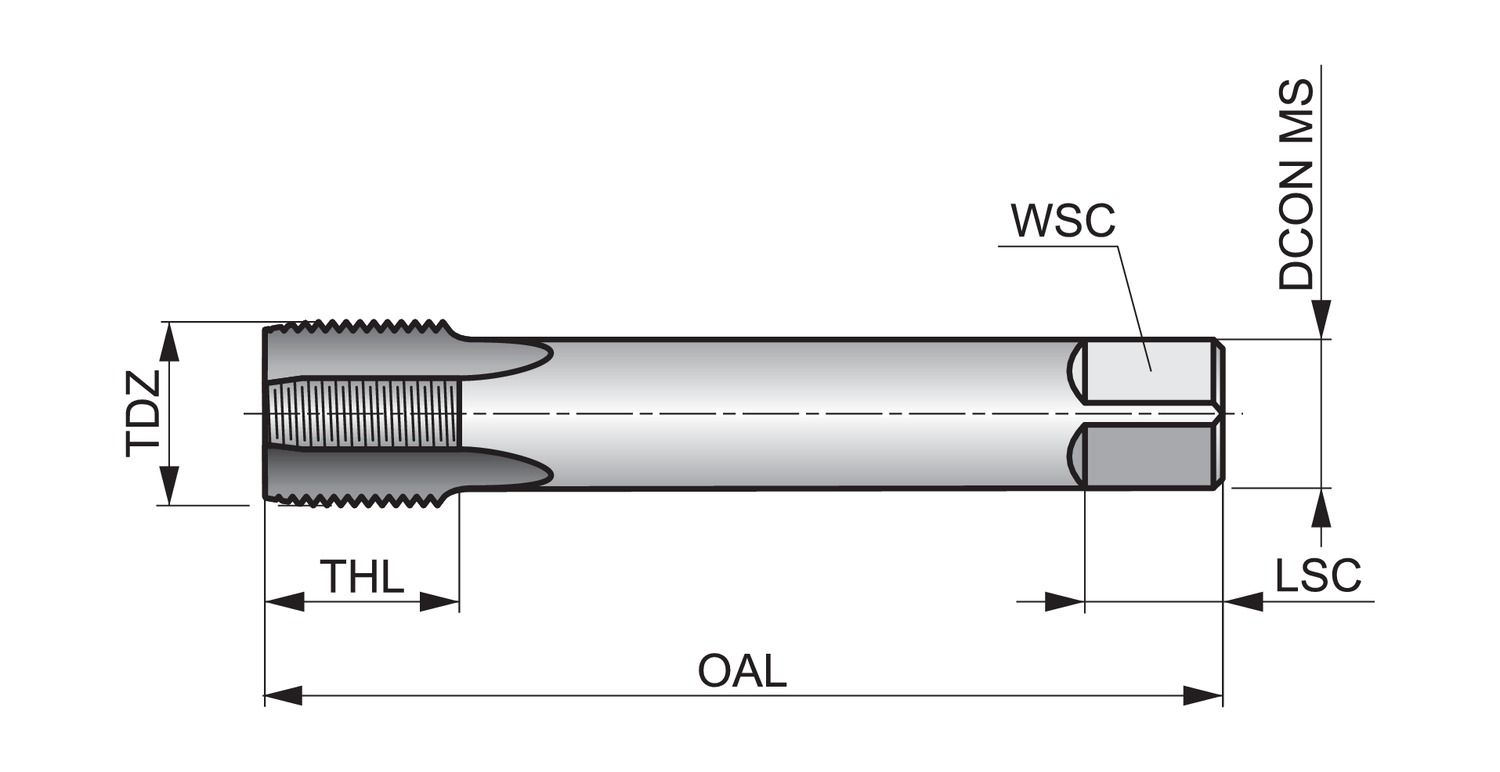

Thread diameter size (TDZ): 1.1/4
Thread diameter – millimeter (TD): 41.91 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 170 mm
Overall length – inch (OAL): 6.6929 inch
Threading length – millimeter (THL): 30 mm
Threading length – inch (THL): 1.1811 inch
Connection diameter – inch (DCON MS): 1.2598 inch
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.9449 inch
Clamping width – millimeter (WSC): 24 mm
Clamping Length – inch (LCS): 1.063 inch
Clamping Length – millimeter (LSC): 27 mm
Premachined hole diameter – inch (PHD): 1.5551 inch
Premachined hole diameter – millimeter (PHD): 39.5 mm
Gross weight – grams: 998.4
ISO: E2821.1/4
Ordering code ANSI: E2821.1/4
