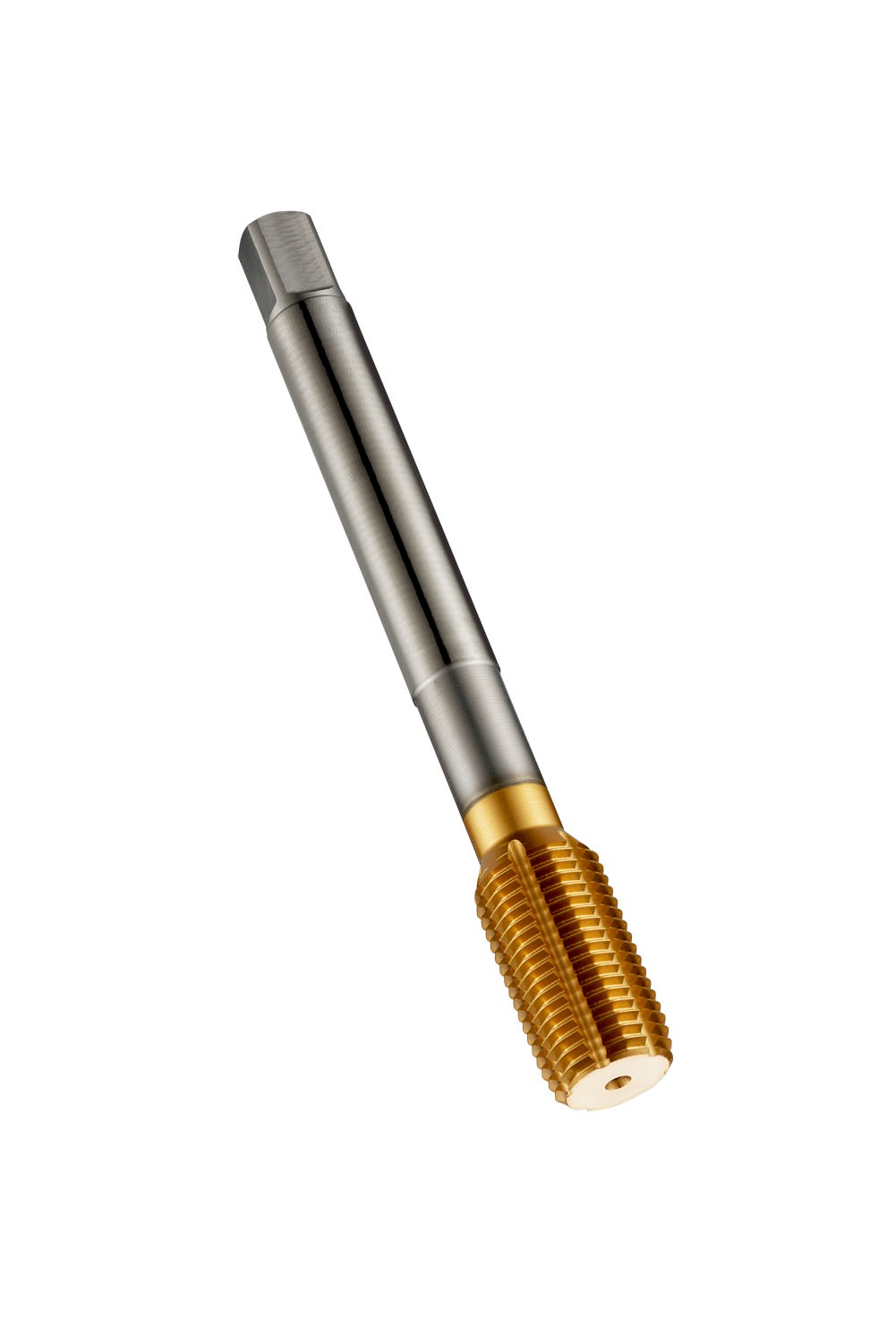

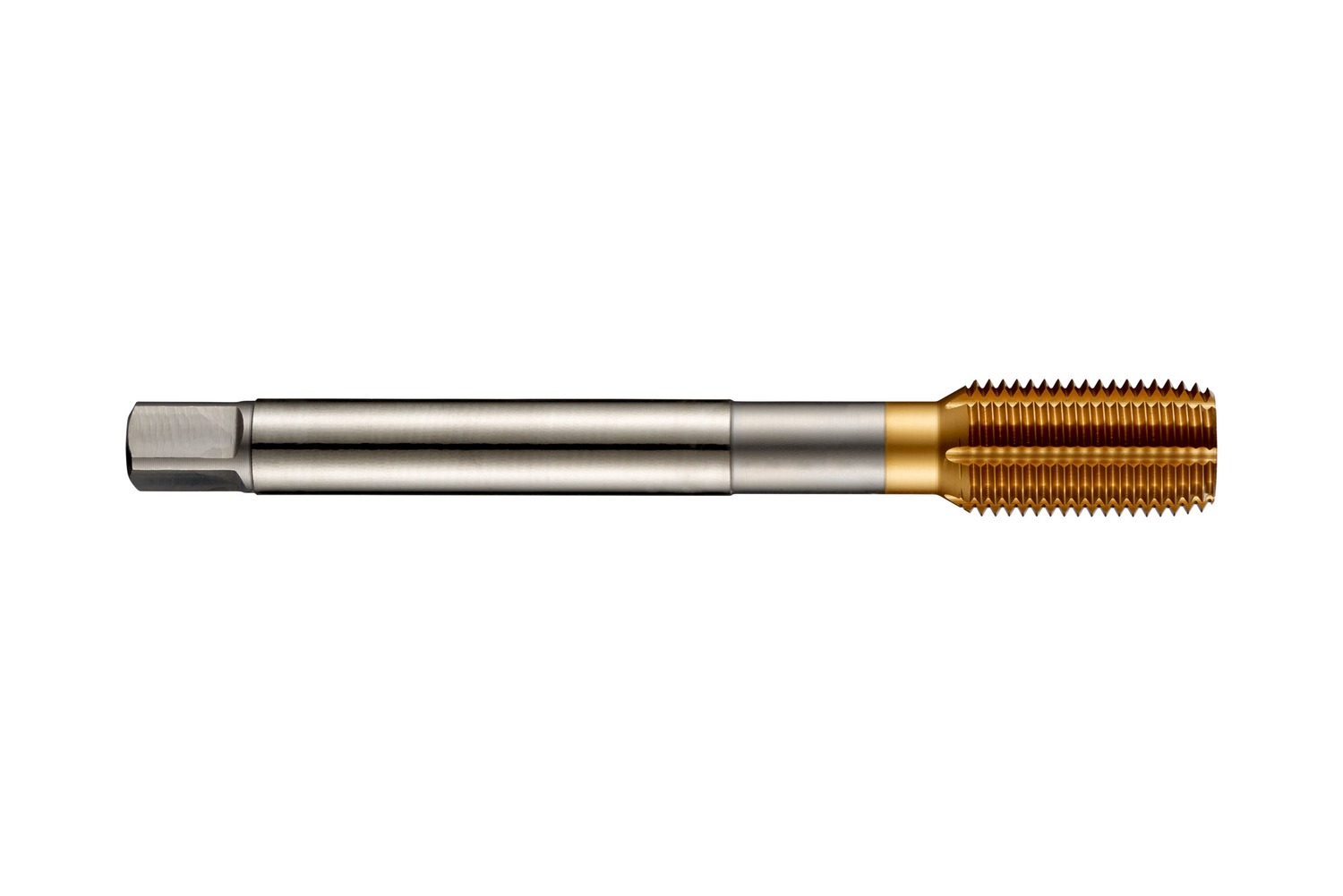

DORMER E2866-40 HSS / HSCo DIN Taps

Description: Value
Product name: E2866-40
Product number (SAP): 86031135
EAN number: 7320760704547
Thread diameter size (TDZ): 6
Thread diameter – millimeter (TD): 3.505 mm
Threads per inch (TPI): 40
Overall length – millimeter (OAL): 56 mm
Overall length – inch (OAL): 2.2047 inch
Threading length – millimeter (THL): 11 mm
Threading length – inch (THL): 0.4331 inch
Connection diameter – inch (DCON MS): 0.1575 inch
Connection diameter – millimeter (DCON MS): 4 mm
Flute count (NOF): 4
Usable Length – inch (LU): 0.7874 inch
Usable Length – millimeter (LU): 20 mm
Clamping width – inch (WSC): 0.1181 inch
Clamping width – millimeter (WSC): 3 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.126 inch
Premachined hole diameter – millimeter (PHD): 3.2 mm
Gross weight – grams: 6.6
ISO: E2866-40
Ordering code ANSI: E2866-40
