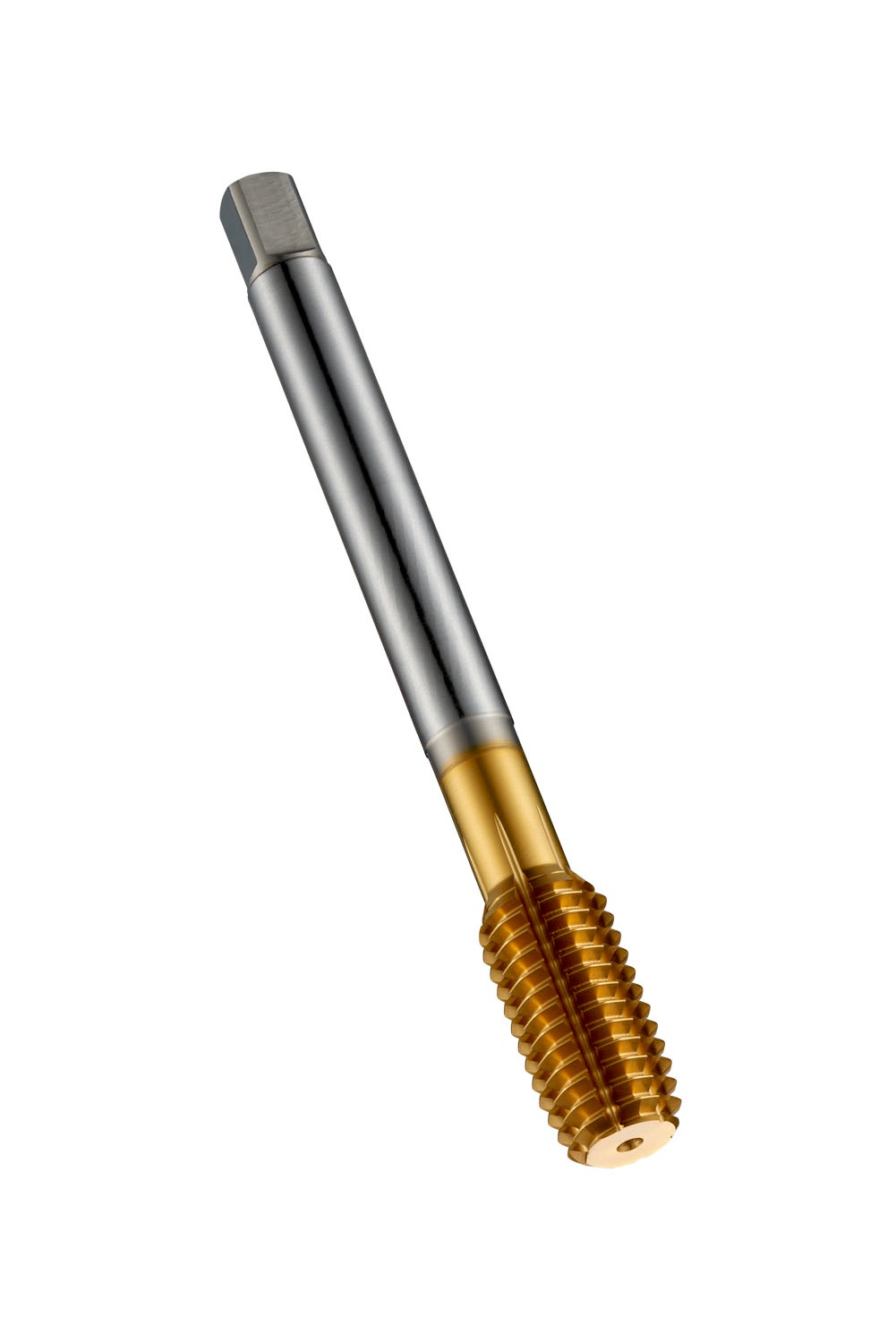

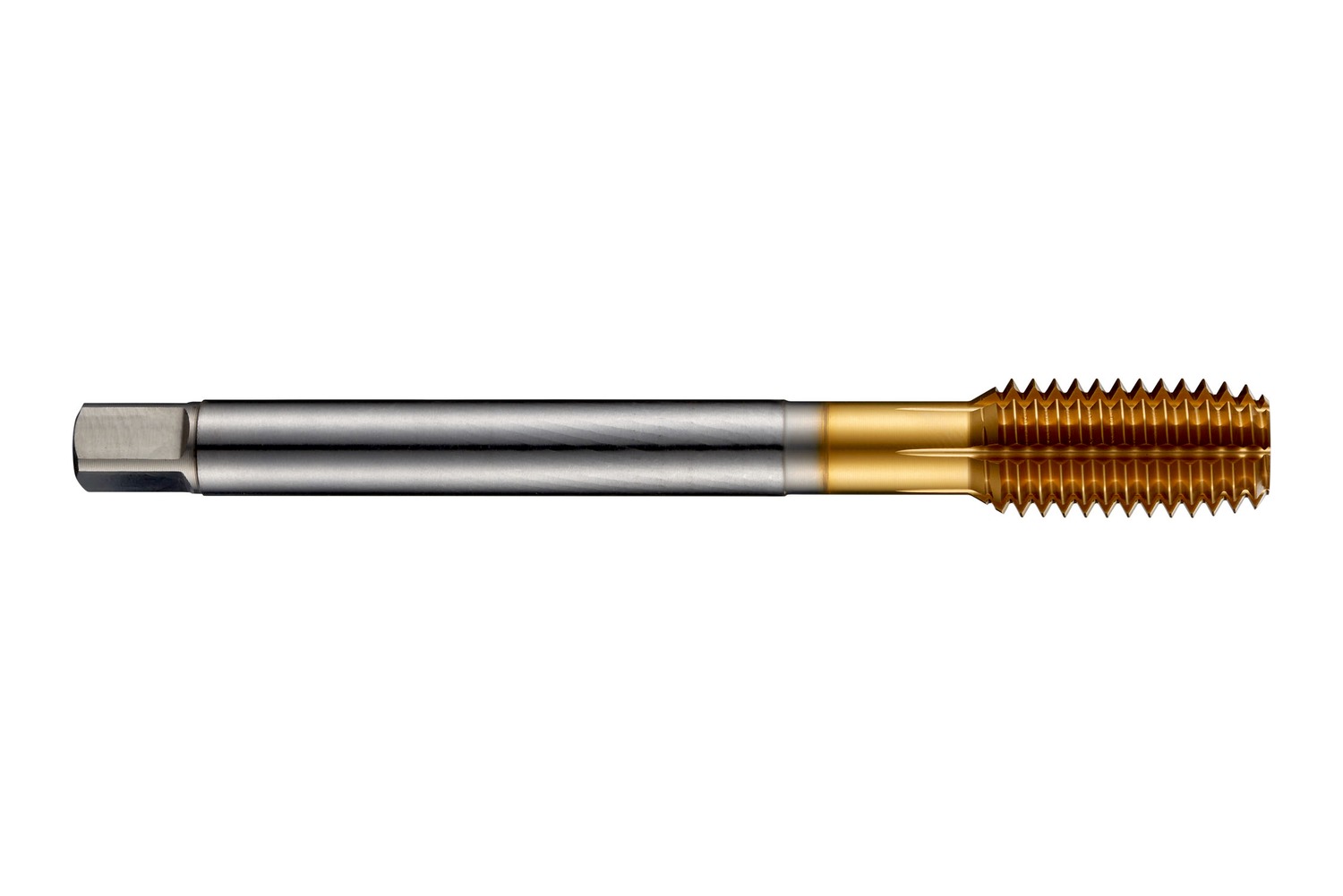

DORMER E2871/2 HSS / HSCo DIN Taps

Description: Value
Product name: E2871/2
Product number (SAP): 86031133
EAN number: 7320760704523
Thread diameter size (TDZ): 1/2
Thread diameter – millimeter (TD): 12.7 mm
Threads per inch (TPI): 13
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 23 mm
Threading length – inch (THL): 0.9055 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 5
Clamping width – inch (WSC): 0.2756 inch
Clamping width – millimeter (WSC): 7 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4685 inch
Premachined hole diameter – millimeter (PHD): 11.9 mm
Gross weight – grams: 64.3
ISO: E2871/2
Ordering code ANSI: E2871/2
