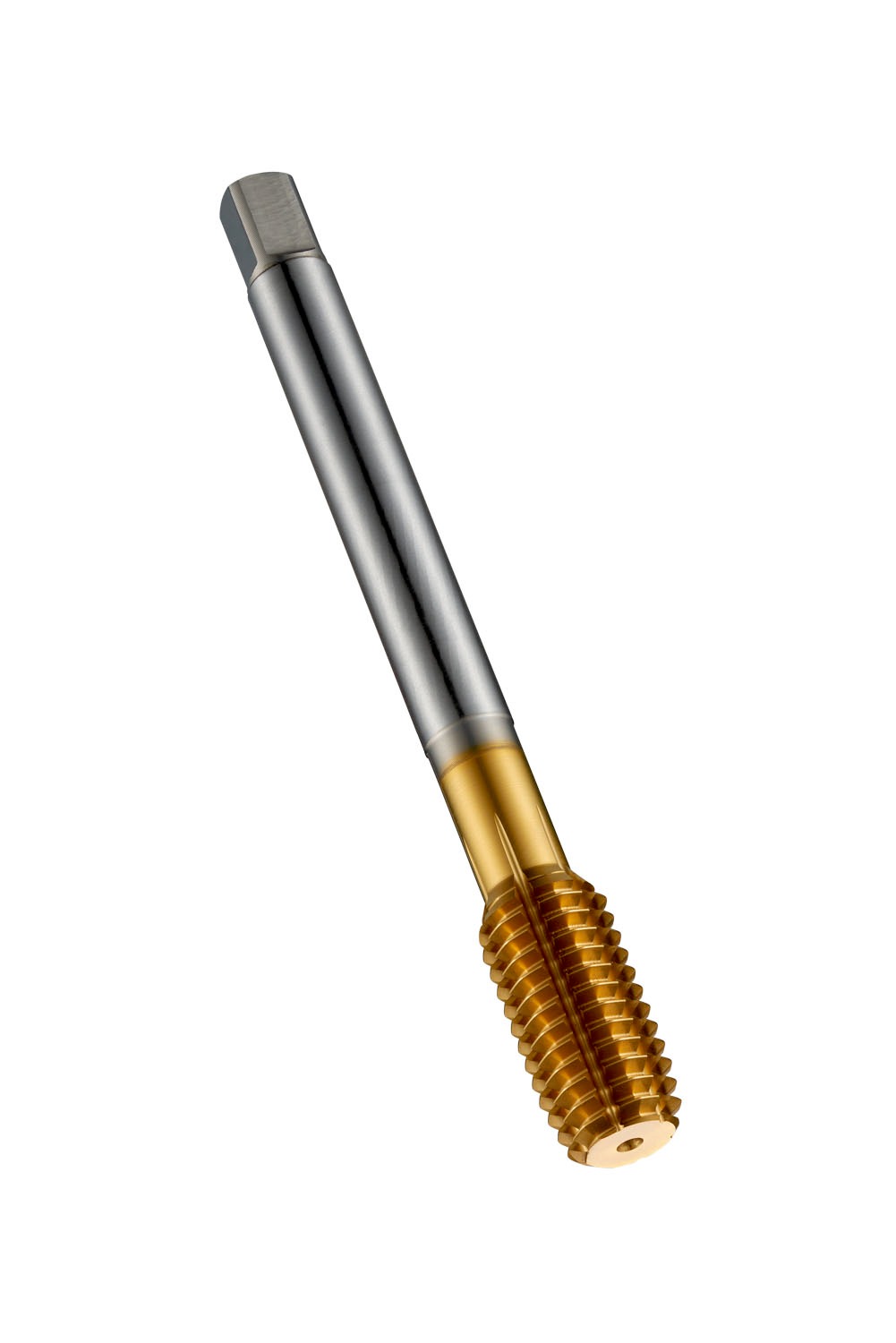

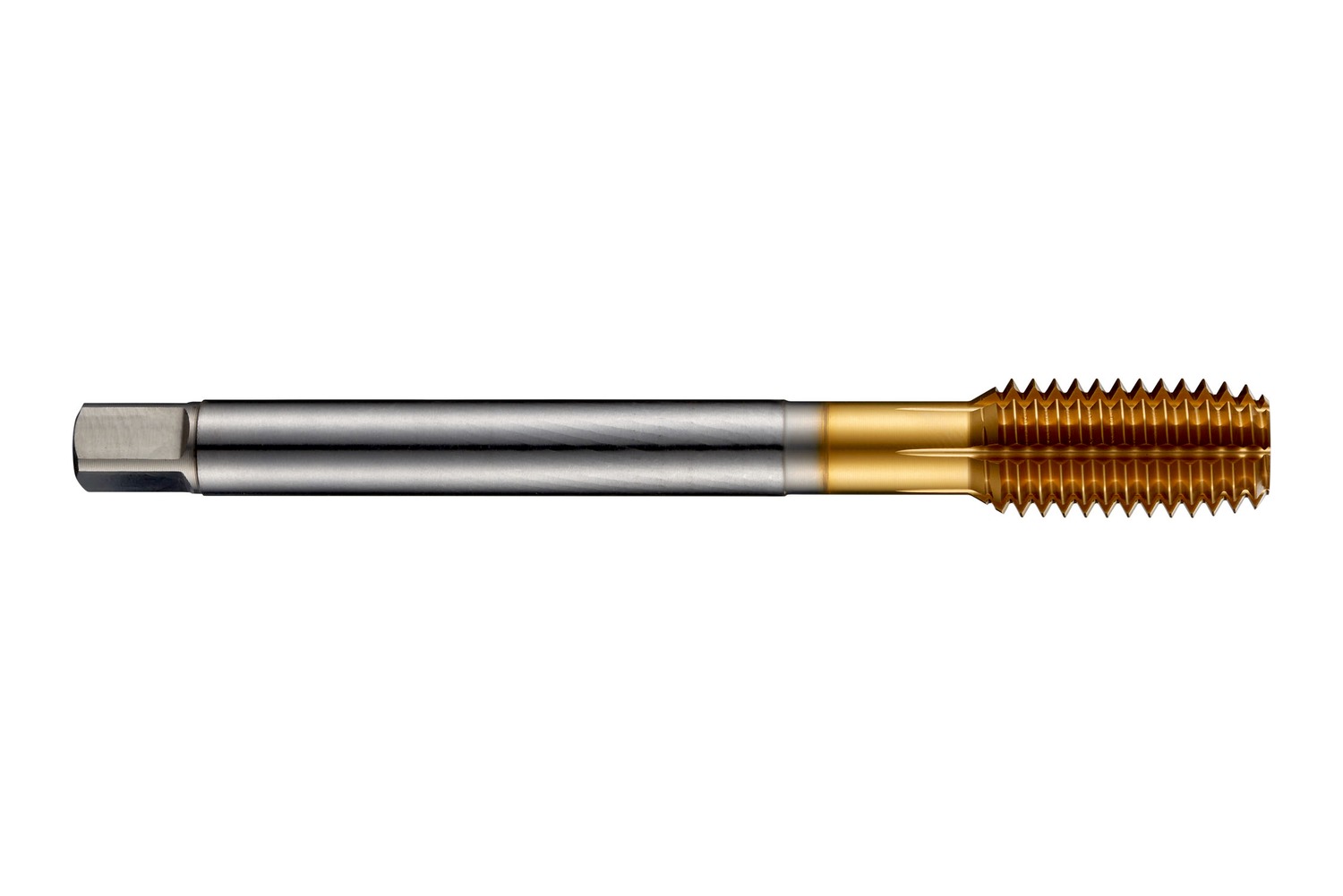

DORMER E2874-40 HSS / HSCo DIN Taps

Description

Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 4 with 40 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 3.5mm shank and 2.7mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium

Additional information

Weight	0.1155 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E2874-40 Product number (SAP): 86031125 EAN number: 7320760704448 Thread diameter size (TDZ): 4 Thread diameter – millimeter (TD): 2.845 mm Threads per inch (TPI): 40 Overall length – millimeter (OAL): 56 mm Overall length – inch (OAL): 2.2047 inch Threading length – millimeter (THL): 9 mm Threading length – inch (THL): 0.3543 inch Connection diameter – inch (DCON MS): 0.1378 inch Connection diameter – millimeter (DCON MS): 3.5 mm Flute count (NOF): 4 Usable Length – inch (LU): 0.7087 inch Usable Length – millimeter (LU): 18 mm Clamping width – inch (WSC): 0.1063 inch Clamping width – millimeter (WSC): 2.7 mm Clamping Length – inch (LCS): 0.2362 inch Clamping Length – millimeter (LSC): 6 mm Premachined hole diameter – inch (PHD): 0.1024 inch Premachined hole diameter – millimeter (PHD): 2.6 mm Gross weight – grams: 5.5 ISO: E2874-40 Ordering code ANSI: E2874-40

Need Technical Advice?

Description

Additional information

Brand

DORMER
