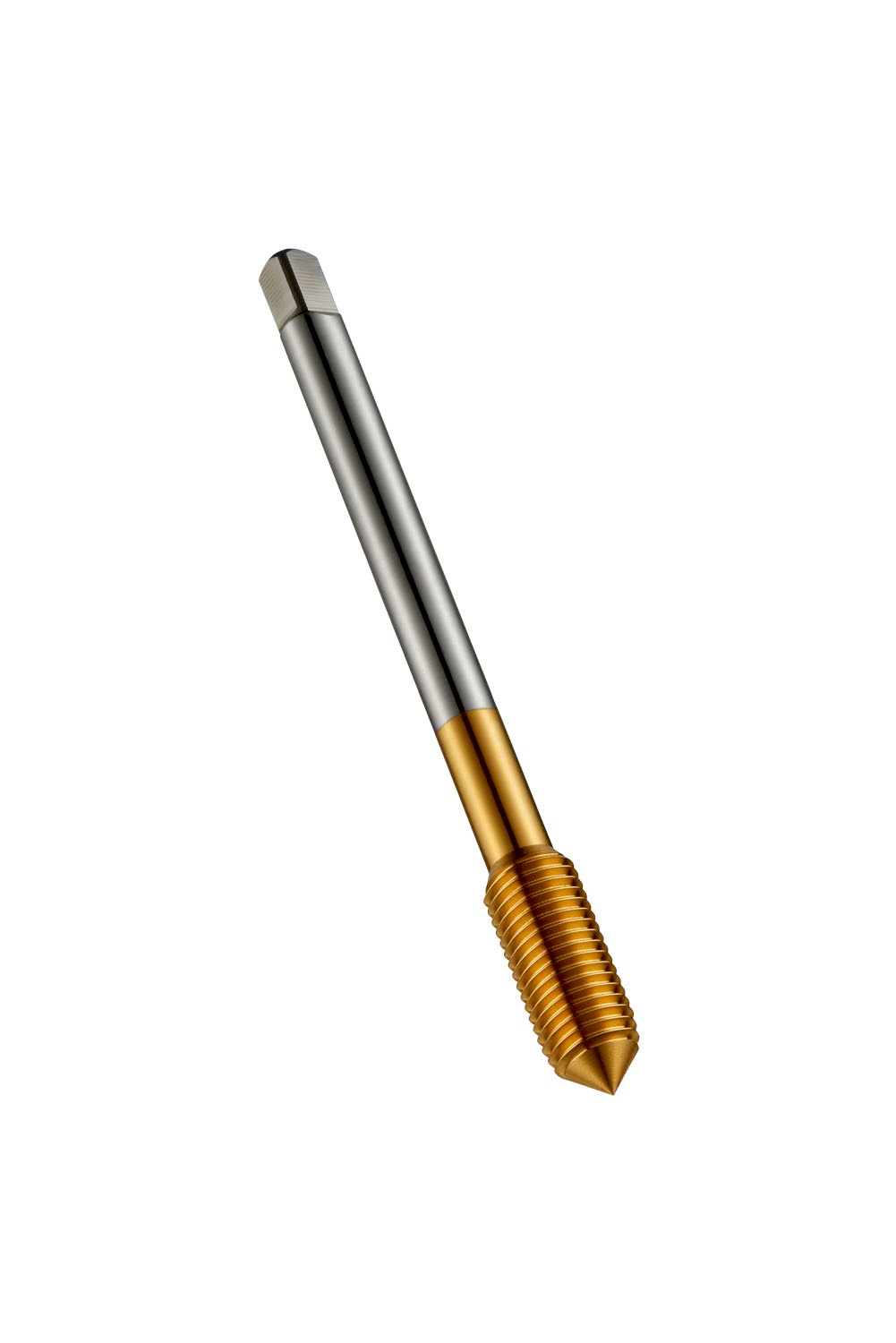

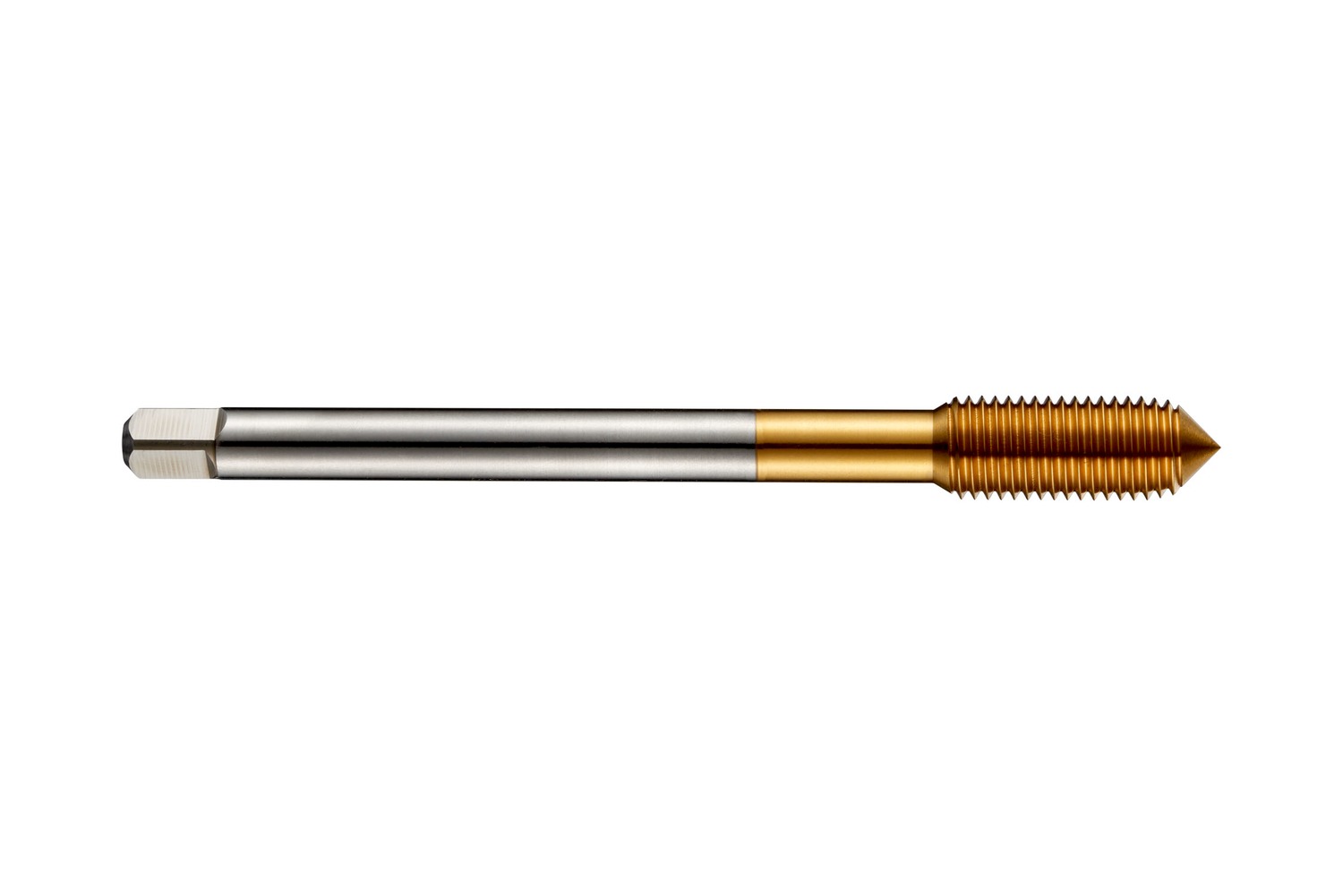

DORMER E288M10X1.25 HSS / HSCo DIN Taps

Description: Value
Product name: E288M10X1.25
Product number (SAP): 86031123
EAN number: 7320760704424
Thread diameter size (TDZ): 10
Thread pitch – millimeter (TP): 1.25 mm
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 20 mm
Threading length – inch (THL): 0.7874 inch
Connection diameter – inch (DCON MS): 0.2756 inch
Connection diameter – millimeter (DCON MS): 7 mm
Flute count (NOF): 5
Clamping width – inch (WSC): 0.2165 inch
Clamping width – millimeter (WSC): 5.5 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.3701 inch
Premachined hole diameter – millimeter (PHD): 9.4 mm
Gross weight – grams: 41.2
ISO: E288M10X1.25
Ordering code ANSI: E288M10X1.25
