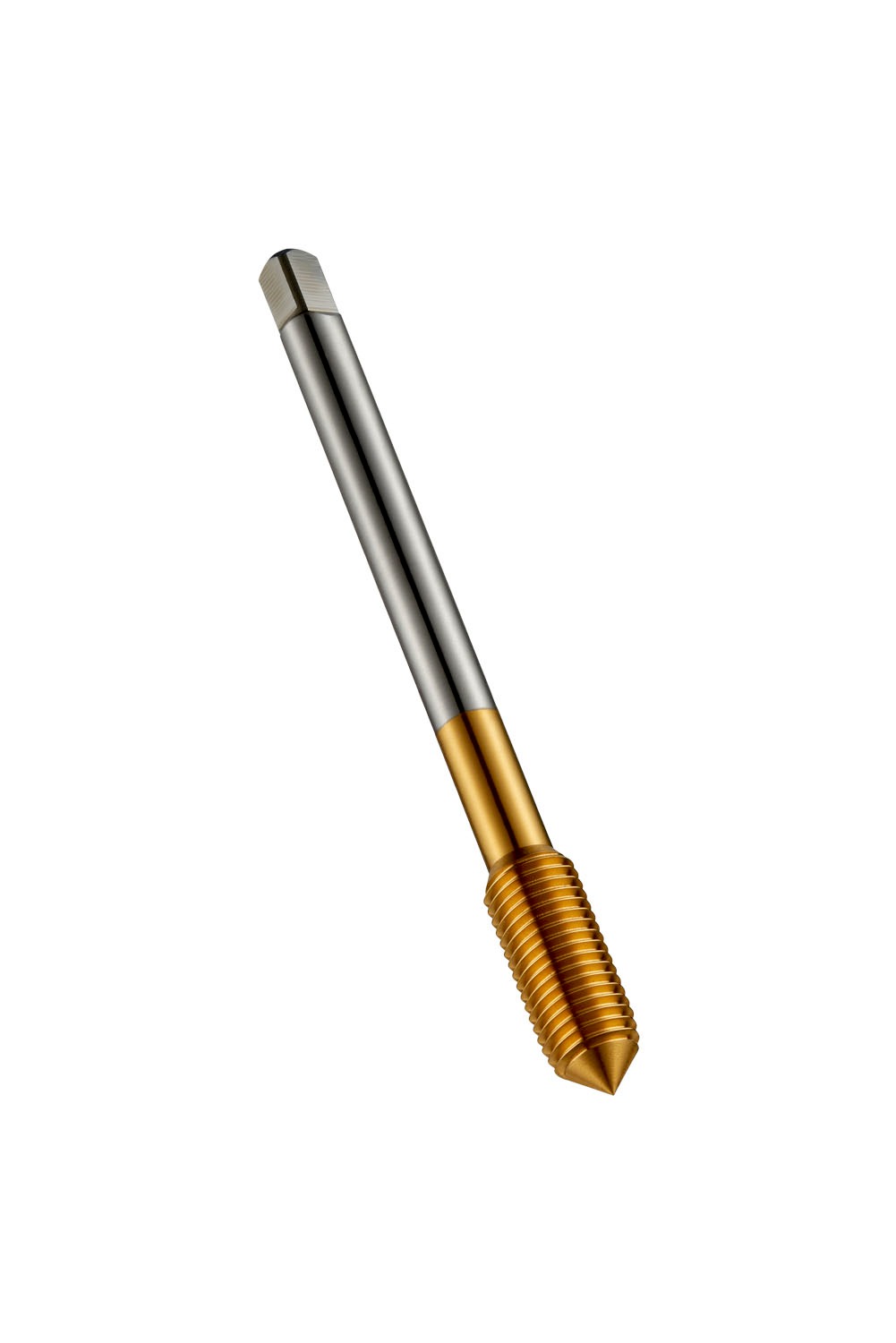

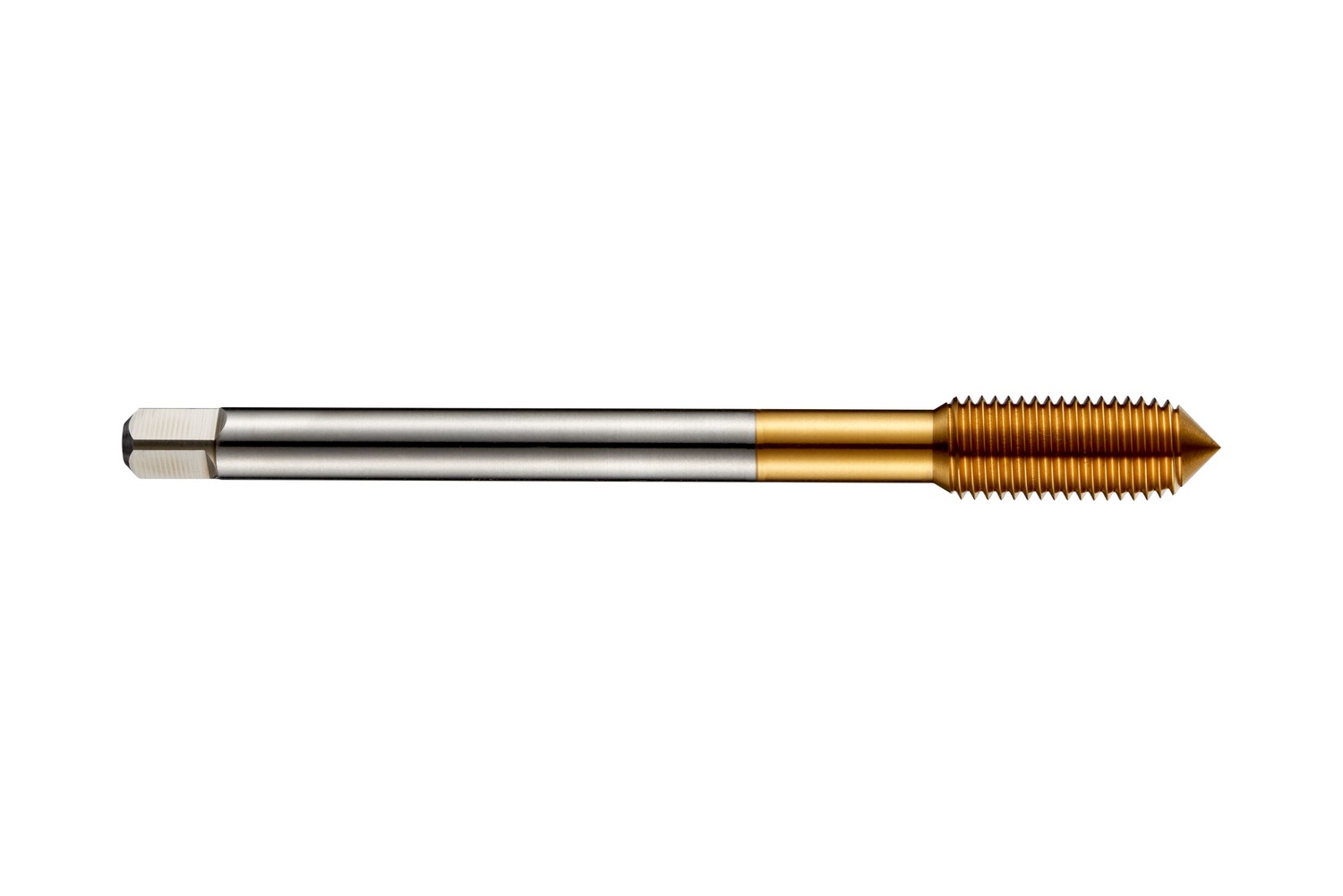

DORMER E288M12X1.5 HSS / HSCo DIN Taps

Description

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 9.0mm shank and 7.0mm square drive, cobalt based HSS-E with TiN coating for 3xD through or blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.1881 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E288M12X1.5 Product number (SAP): 86031124 EAN number: 7320760704431 Thread diameter size (TDZ): 12 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 21 mm Threading length – inch (THL): 0.8268 inch Connection diameter – inch (DCON MS): 0.3543 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 5 Clamping width – inch (WSC): 0.2756 inch Clamping width – millimeter (WSC): 7 mm Clamping Length – inch (LCS): 0.3937 inch Clamping Length – millimeter (LSC): 10 mm Premachined hole diameter – inch (PHD): 0.4449 inch Premachined hole diameter – millimeter (PHD): 11.3 mm Gross weight – grams: 62.3 ISO: E288M12X1.5 Ordering code ANSI: E288M12X1.5
