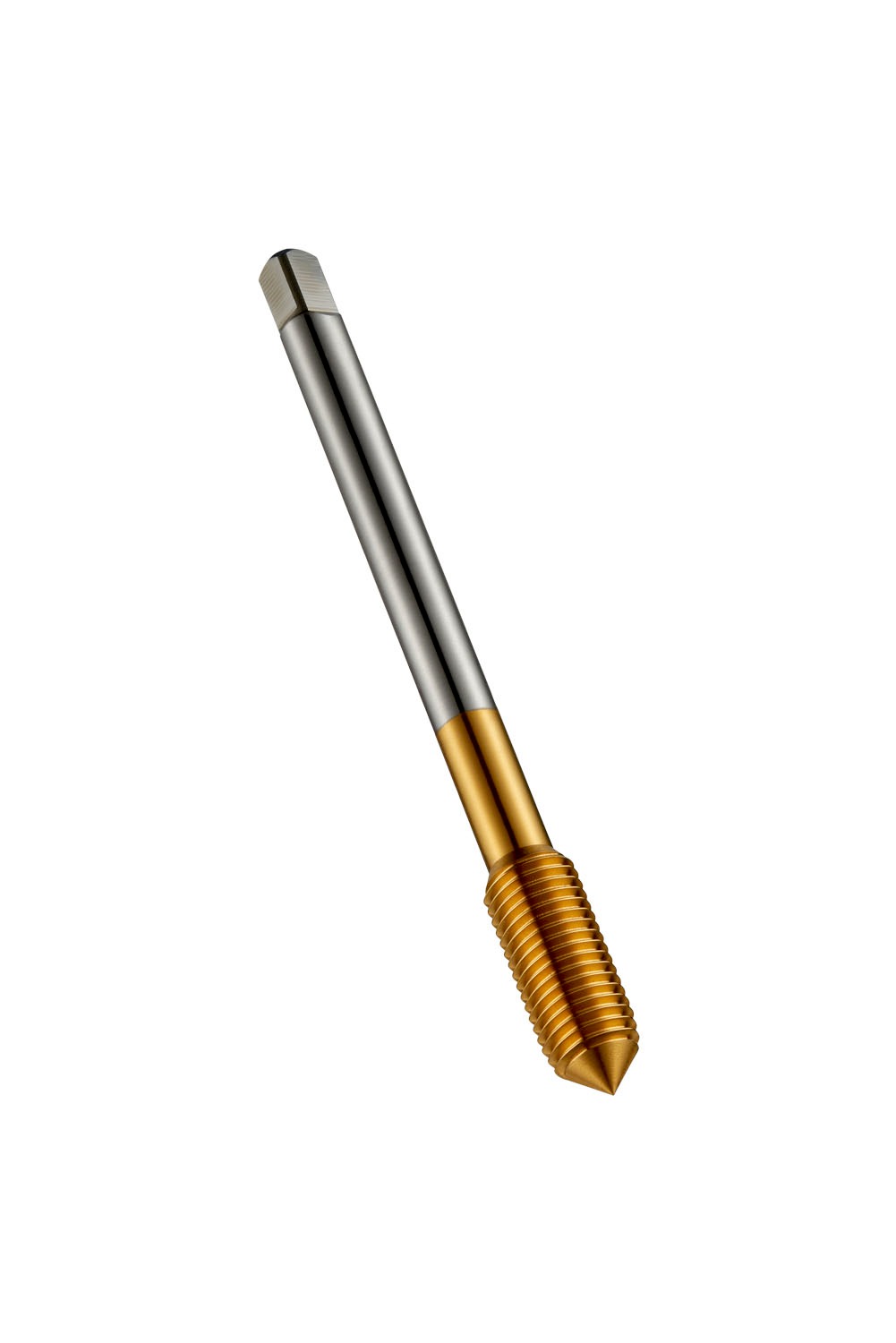

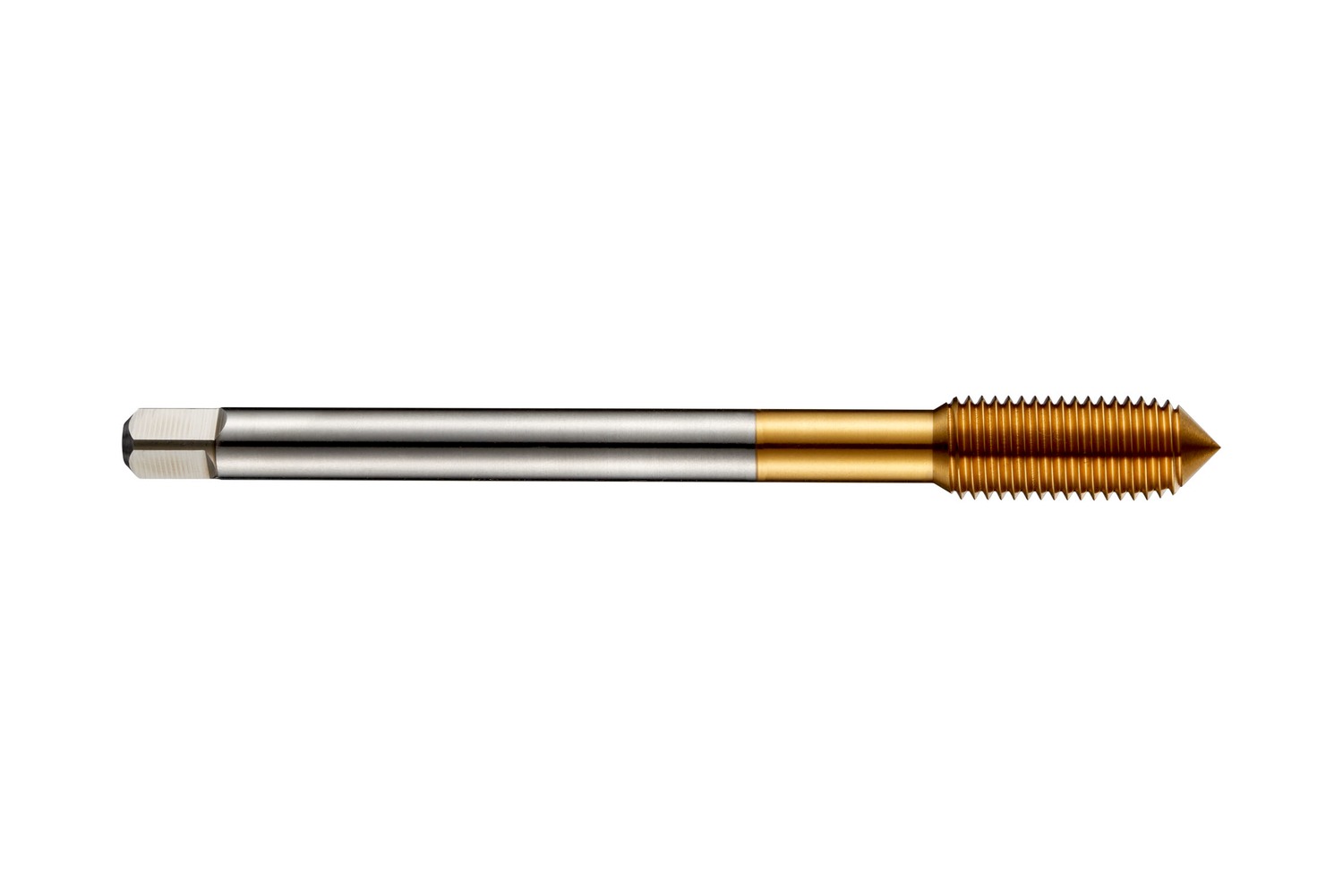

DORMER E288M8X1.0 HSS / HSCo DIN Taps

Description: Value
Product name: E288M8X1.0
Product number (SAP): 86031121
EAN number: 7320760704400
Thread diameter size (TDZ): 8
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 90 mm
Overall length – inch (OAL): 3.5433 inch
Threading length – millimeter (THL): 18 mm
Threading length – inch (THL): 0.7087 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 5
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2953 inch
Premachined hole diameter – millimeter (PHD): 7.5 mm
Gross weight – grams: 28.3
ISO: E288M8X1.0
Ordering code ANSI: E288M8X1.0
