DORMER E290M14X1.5 HSS / HSCo DIN Taps

Description: Value
Product name: E290M14X1.5
Product number (SAP): 86015998
EAN number: 7320760167410

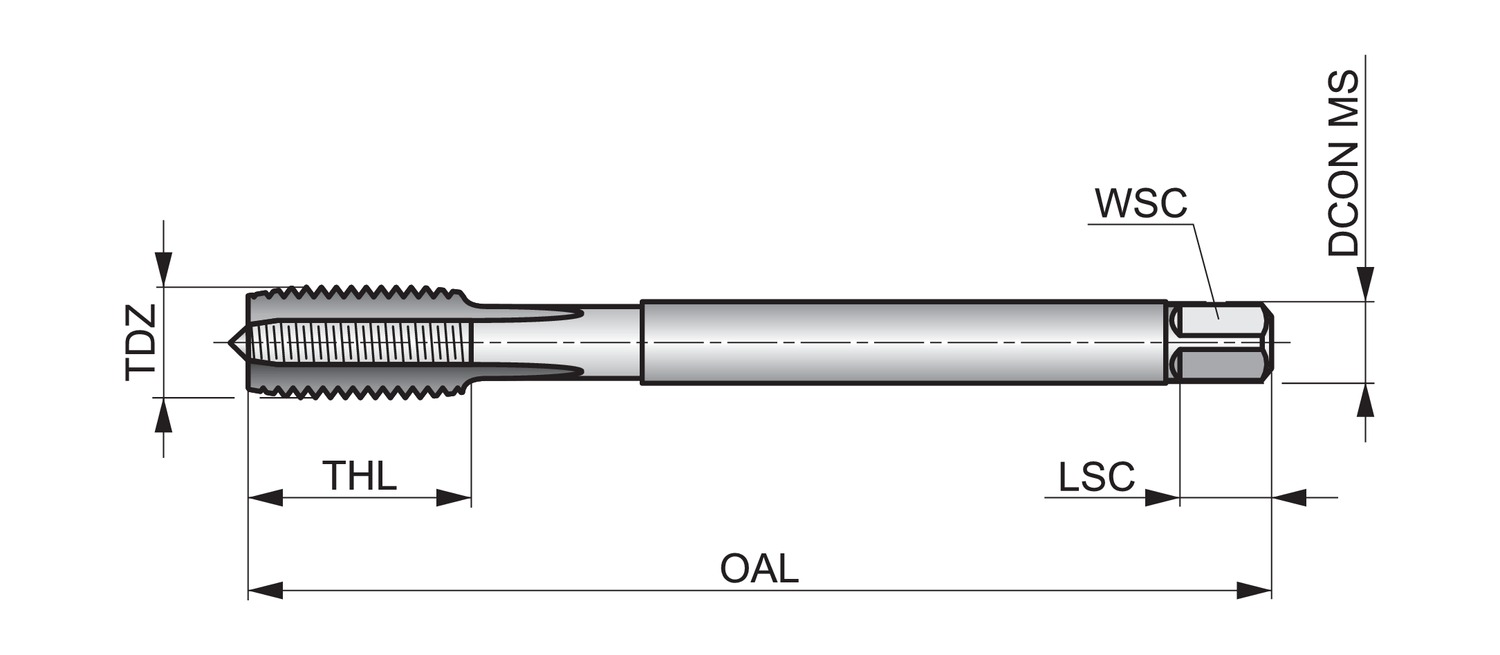

Thread diameter size (TDZ): 14
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 21 mm
Threading length – inch (THL): 0.8268 inch
Connection diameter – inch (DCON MS): 0.4331 inch
Connection diameter – millimeter (DCON MS): 11 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.4921 inch
Premachined hole diameter – millimeter (PHD): 12.5 mm
Gross weight – grams: 70.2
ISO: E290M14X1.5
Ordering code ANSI: E290M14X1.5
